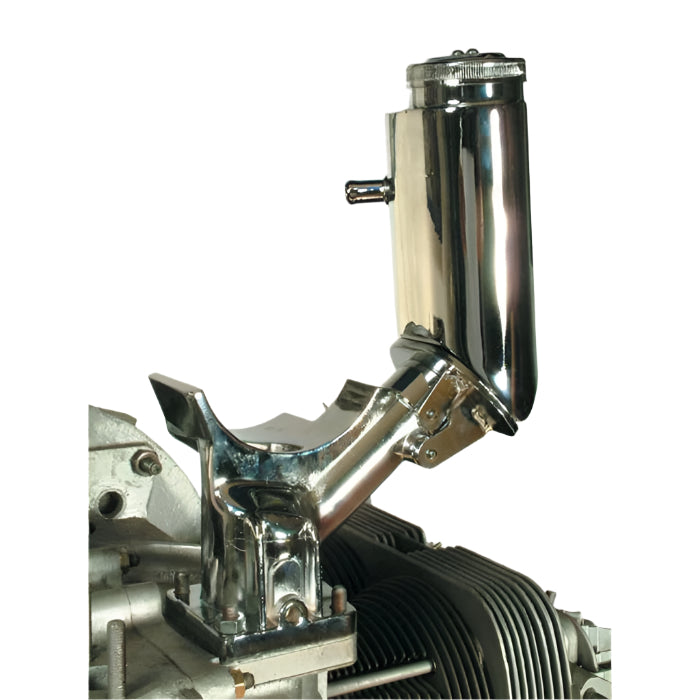

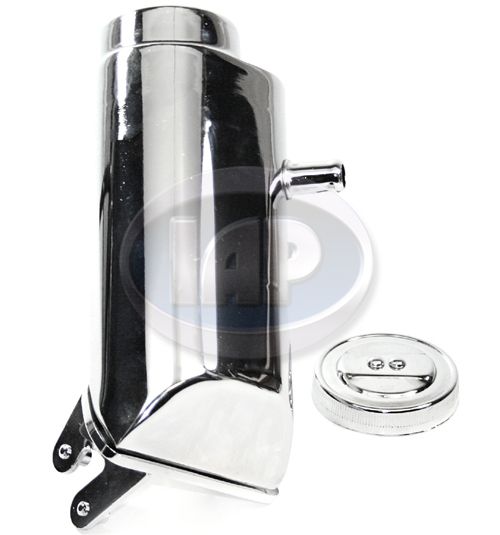

Porsche Style Breather Kit For Vw Air-cooled Engine

This Breather Is Held On With The Stock Oil Filler Nut. ( Does Not Work With Cross Bar Linkage ) Recommended For High Performance VW Air Cooled Engines To Reduce Crankcase Pressure, Eliminate Blow-by And Oil Loss.

High Revving Modified Engines Require More Crankcase Ventilation Than The Stock Breather Can Supply. With Oil Breathers The Blow-by Oil Is Collected In The Tower And The Air Vapors Are Vented To The Atmosphere. This Kit Has 2 Vent Outlets Allowing You To Run Breather Hose To Each Valve Cover.

Replaces stock oil fillers, works on any size engine. This is a easy way to add ventilation to your engine. Chrome finish for a custom look.

Two hose fittings point toward the fan housing, one may be an input which could be teed to the valve covers, the other MUST be an outlet which can feed to an air filter or be fitted with a breather filter. There are substantial baffles inside the case.

The base of the unit unbolts and is fitted to the existing stand using a standard seal and retaining nut which are not included. Please order parts 113-115-495 and 113-115-475. To remove the existing oil filler you will require a tool 00-5761-0 or 00-5102-0.

Sunny climate chrome, supplied without warranty, must be polished and waxed regularly to maintain appearance.

Hose fittings: 1/2 inch Qty. 2
Length: 3.342 inches
Width: 2.48 inches

Engine Type: All Type 1 VW
Finish: Chrome
Height: 7-1/2 inches
