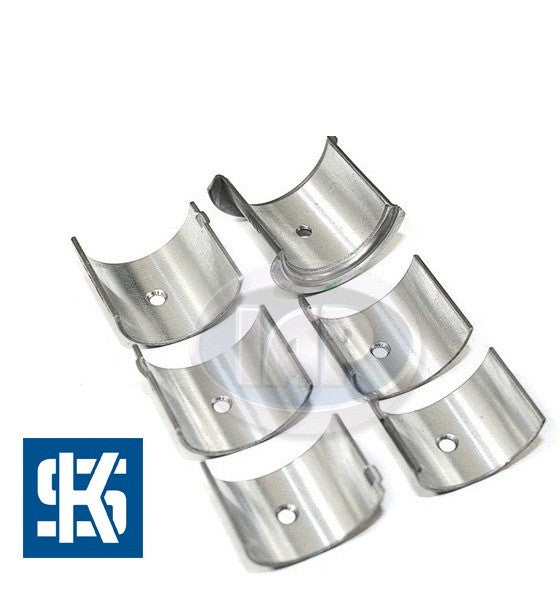

Kolbenschmidt 111-198-541 VW Camshaft Bearing Set - Standard Case/Standard Cam

Kolbenschmidt VW Camshaft Bearing Set (Standard/Standard) – 111 198 541

Ensure smooth valve train operation and consistent oil pressure with the Kolbenschmidt111-198-541 Camshaft Bearing Set. These high-quality replacement bearings are designed for air-cooled Volkswagen Type 1 based engines where both the engine case and the camshaft are at factory standard dimensions. This set features the single thrust design, making it the ideal choice for stock rebuilds and daily drivers.

Kolbenschmidt is a renowned manufacturer of internal engine components, producing these bearings to strict OEM tolerances. They are designed to provide a precision fit within the standard 27.50mm case bore and provide optimal clearance for a standard 25.00mm camshaft journal. Replacing worn cam bearings is a vital step in any rebuild, as excessive clearance in the cam gallery is a primary cause of low oil pressure once the engine reaches operating temperature.

Detailed Vehicle Compatibility

This standard bearing set fits 1200cc to 1600cc upright engines continuously across these years:

VW Beetle (Standard):

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Bus (Type 2):

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971

VW Type 3:

• 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973

VW Thing:

• 1973, 1974

Product Highlights & Features

• OEM Quality Construction: Manufactured with a specialized bearing alloy that provides high resistance to surface fatigue and excellent heat dissipation.

• Single Thrust Configuration: Features one flanged thrust bearing to control the axial movement of the camshaft, exactly as originally engineered by VW.

• Standard Sizing: Precision machined for standard components (27.50mm Case Bore / 25.00mm Cam Journal).

• Complete 6-Piece Set: Includes all shells required for a complete camshaft installation in Type 1, 2, and 3 engine cases.

Technical Specifications

• Part Number: 111-198-541-KS

• Brand: Kolbenschmidt

• Case Bore: 27.50mm (Standard)

• Cam Journal: 25.00mm (Standard)

• Thrust Type: Single Thrust

Installation & Maintenance Tips

• Seating the Bearings: After placing the bearings in the case halves, install the camshaft and rotate it by hand. Professional builders often "seat" the bearings by tapping the ends of the camshaft with a brass drift to ensure the thrust flange is perfectly flush against the case.

• Oil Gallery Alignment: Pay close attention to the small oil holes in the bearing shells. They must align perfectly with the oil feed holes in the engine case. If they are installed backward or upside down, the cam will receive no lubrication and will fail within minutes of startup.

• Check the Gear Clearance: When installing a new camshaft with these bearings, always check the "backlash" between the cam gear and the crankshaft gear. If the gears are too tight, they will produce a distinct whining sound and can prematurely wear the bearings.

• Lubrication: Apply a high-zinc assembly lube or specialized camshaft grease to the inner surface of the bearings before final assembly to protect the journals during the critical first few seconds of the engine's life.

**NOTE: For the 1200cc only for engines that have cam bearings, check your engine to confirm it does indeed have cam bearings**

MO1713M STD

111198541T
