JayCee JC-2134-0 Powerflow Oil Control System - Black Anodized VW

SEO Title Tag

JayCee JC-2134-0 Powerflow Oil Control System - Black Anodized VW

Meta-Description

Optimize your engine’s oiling with the JayCee JC-2134-0 Powerflow System. Built-in 120 PSI bypass, black 6061 T-6 aluminum. Fits performance air-cooled VW engines.

JayCee Powerflow Oil Control System (Black) – JC-2134-0

Take control of your engine's oil pressure and cooling with the JayCee Powerflow Oil Control System. This premium performance upgrade is designed to replace the standard oil pump cover with a high-flow, billet solution. Machined from 6061 T-6 aluminum and finished in a deep black anodizing, it features a unique, built-in high-flow bypass system set at 120 PSI. By bleeding off excessive pressure at high RPMs, this system prevents gear-drag and oil aeration, effectively relieving "parasitic" horsepower loss and protecting your external oil cooler from pressure-related failure.

The kit is a comprehensive solution that includes a billet pump cover with O-ringed -8 AN fittings, a universal case oil return, and a dedicated hard aluminum return line. This setup allows for a cleaner, more professional plumbing route for your external oil filter and cooler compared to traditional rubber hose configurations. It is a staple for high-performance street and race engines where consistent oil temperature and pressure management are critical.

Detailed Vehicle Compatibility

This system is designed for high-performance Type 1 based engines and fits the following models (assuming a Full Flow oil pump is installed) continuously across these years:

VW Beetle (Standard):

1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Type 3:

1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972

Product Highlights & Features

• 120 PSI Internal Bypass: Safeguards your oiling system from extreme pressure spikes, protecting filters and coolers while reclaiming lost horsepower.

• Billet 6061 T-6 Construction: Precision CNC-machined for superior strength and a leak-free seal compared to cast covers.

• O-Ringed -8 AN Fittings: Features high-quality O-ring seals on the ports to eliminate the need for messy thread sealant and prevent leaks.

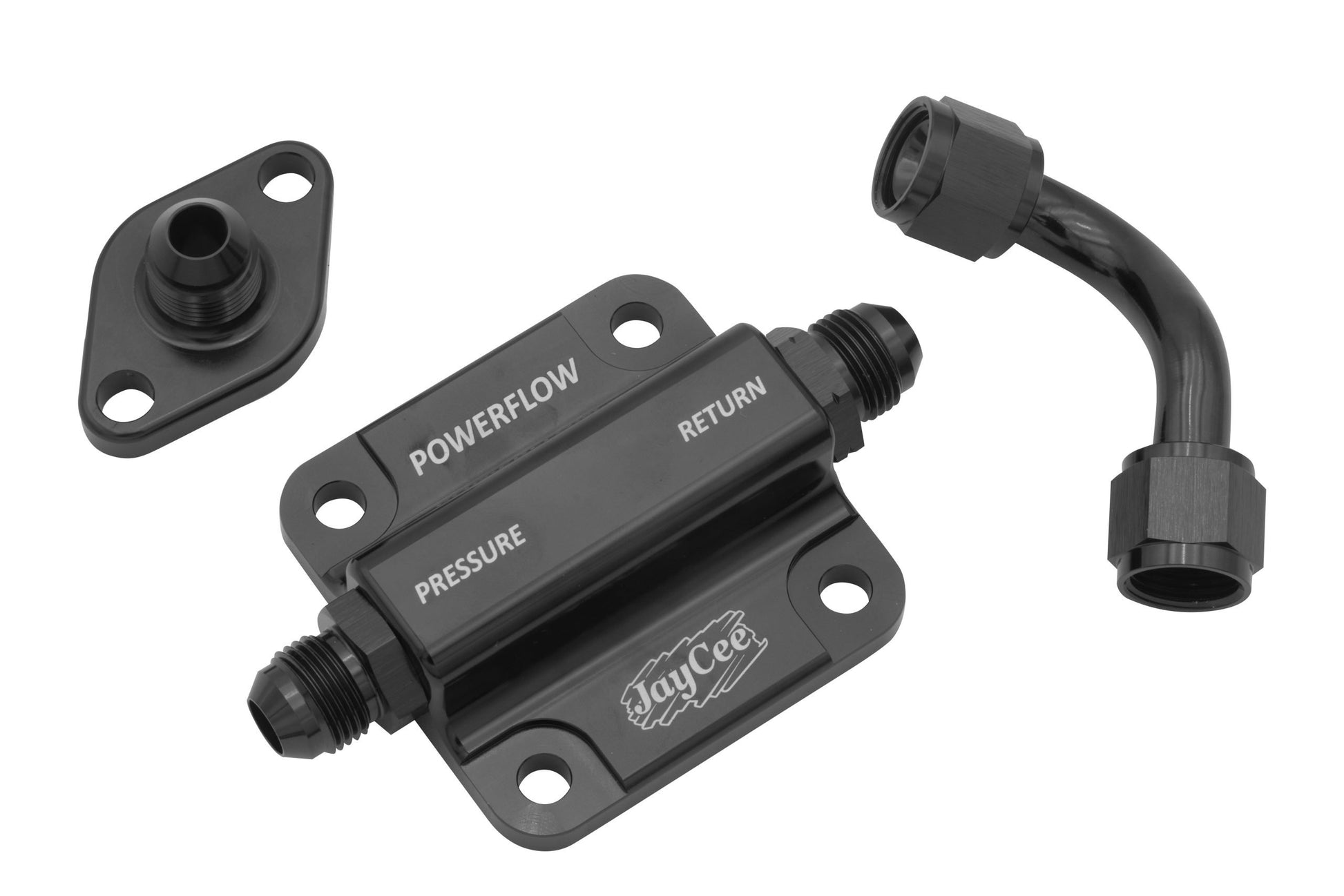

• Complete System: Includes the bypass pump cover, universal return fitting, and a pre-bent hard aluminum return line for a streamlined installation.

Technical Specifications

• Part Number: JC-2134-0

• Finish: Black Anodized

• Material: Billet Aluminum

• Fitting Size: -8 AN

• Bypass Setting: 120 PSI

Installation & Maintenance Tips

• Pump Compatibility: This cover is intended for use with "Full Flow" modified oil pumps. Ensure your oil pump is properly threaded to accept the AN fittings before installation.

• Case Modification: Installing the universal oil return requires drilling and tapping the engine case. This should ideally be performed during a complete engine teardown to prevent metal shavings from entering the oil galleries.

• Line Routing: While the kit includes a hard return line, ensure it is clear of the exhaust system and moving suspension parts. Use heat shielding if the line passes near high-heat areas like the header tubes.

• Torque Specs: Be careful not to over-torque the oil pump cover nuts (8mm). Use a new gasket or O-ring and tighten to factory specifications to prevent warping the cover or pulling the case studs.
