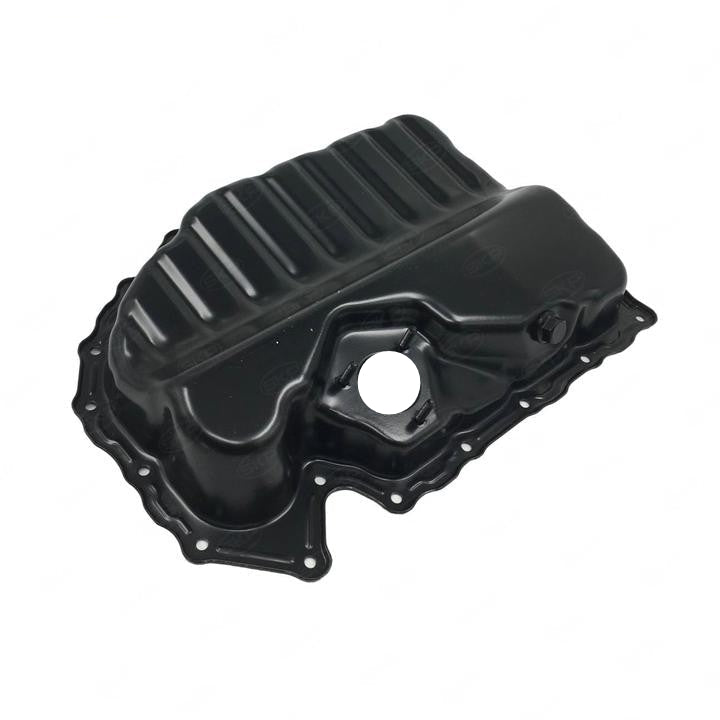

06J-103-600G VW & Audi Engine Oil Pan with Sensor Hole - SK264713



Engine Oil Pan (TSI Engines) – 06J-103-600G

The 06J-103-600G (also referenced by SKU SK264713) is a high-quality replacement steel oil pan designed for the Volkswagen Group’s 1.8L and 2.0L TSI engine family. Because these engines sit low in the chassis, the oil pan is frequently susceptible to damage from road debris, speed bumps, or potholes. A dented pan can restrict oil pickup flow, while a cracked pan leads to immediate oil loss and potential engine seizure.

This specific version features a pre-drilled oil level sensor hole. As noted, if your particular vehicle was not equipped with an electronic oil level sensor from the factory, you must use a block-off plate (03G-103-707)to seal the opening. The pan is manufactured to precise OE dimensions to ensure a leak-free seal against the engine block using standard RTV silicone sealant.

Detailed Vehicle Compatibility

Audi A3:

• 2004, 2008, 2009, 2010, 2011, 2012, 2013

Audi A3 Quattro:

• 2008, 2009, 2010, 2011, 2012, 2013

Audi Q3:

• 2015, 2016, 2017, 2018

Audi Q3 Quattro:

• 2013, 2014, 2015, 2016, 2017, 2018

Audi S3:

• 2004, 2008, 2009, 2010, 2011, 2012

Audi TT:

• 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Audi TT Quattro:

• 2009, 2010, 2011, 2012, 2013, 2014, 2015

VW Arteon:

• 2019, 2020

VW Beetle:

• 2011, 2012, 2013, 2014, 2015, 2016, 2017

VW CC:

• 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

VW Eos:

• 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

VW GLI:

• 2010

VW GTI:

• 2008, 2009, 2010, 2011, 2012, 2013, 2014

VW Golf:

• 2013

VW Jetta:

• 2005, 2006, 2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017, 2018

VW Passat:

• 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016, 2017

VW Passat CC:

• 2009, 2010, 2011, 2012

VW Tiguan:

• 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

VW Tiguan Limited:

• 2017, 2018

---

Product Highlights & Features

• Sturdy Steel Construction: Offers better impact resistance than aluminum pans, which tend to shatter upon contact with road hazards.

• Oil Level Sensor Port: Includes the factory-spec 3-bolt mounting flange for vehicles equipped with oil level/temperature monitoring.

• Complete with Drain Plug: Comes ready for installation with a pre-installed drain plug and crush washer.

• Baffled Design: Features internal baffling to manage oil slosh during cornering and ensure the oil pickup tube remains submerged.

Technical Specifications

• Part Number: 06J-103-600G / SK264713

• Material: Stamped Steel

• Engine Fitment: 2.0L Turbo TSI (Gasoline)

• Sensor Hole: Yes

---

Installation & Maintenance Tips

• Sealant Requirements: This pan does not use a traditional paper or rubber gasket. You must use a high-quality, oil-resistant RTV Silicone Sealant. Apply a consistent 2-3mm bead around the clean mating surface.

• Sensor Block-Off: If your car does not use a sensor, ensure you have the 03G-103-707 block-off plate and gasket ready. Do not attempt to "plug" this hole with makeshift materials.

• Surface Prep: The engine block surface must be 100% free of old sealant and oil residue. Use a plastic scraper and brake cleaner to ensure a dry, clean surface for the best bond.

• Torque Pattern: Tighten the mounting bolts in a crisscross pattern to 15 Nm (approx. 11 ft-lb). Over-tightening can warp the steel flange and cause permanent leaks.
