EMPI INC.

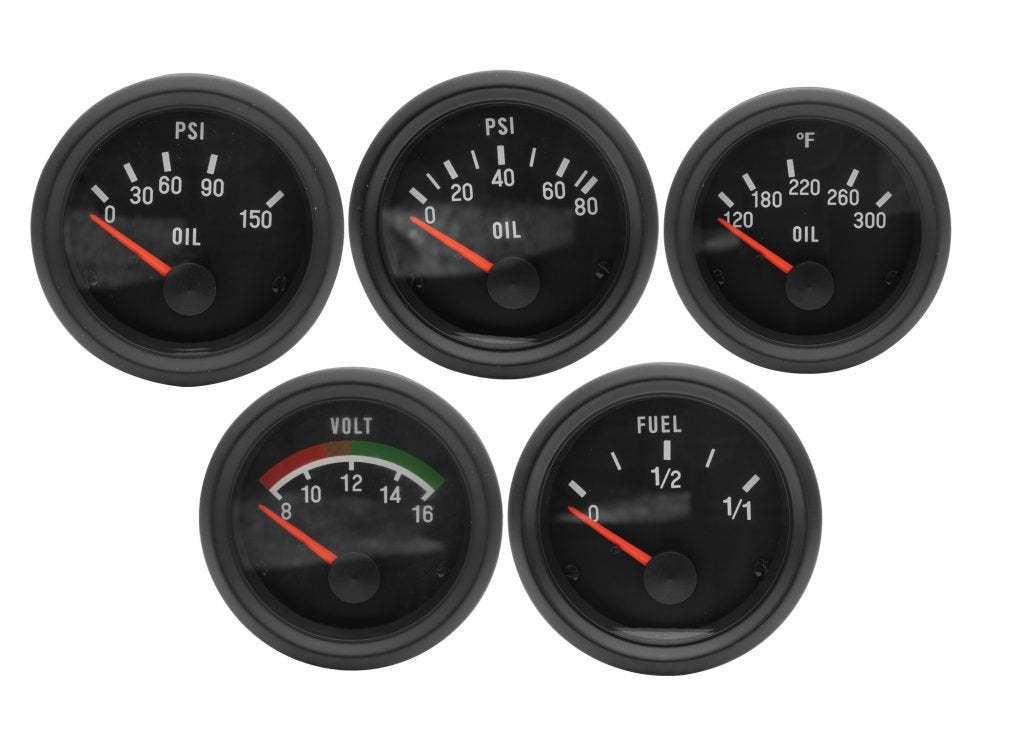

EMPI is proud to offer a matched set of clean and easy-to-read gauges to customize and complement your classic VW.
These high-quality gauges feature black bezels and faces with bright white indicator markings and a red needle.
Incandescent backlighting for a warm glow, rather than stark white LED light.
Each gauge measures 52mm in diameter with a steel body and acrylic face.

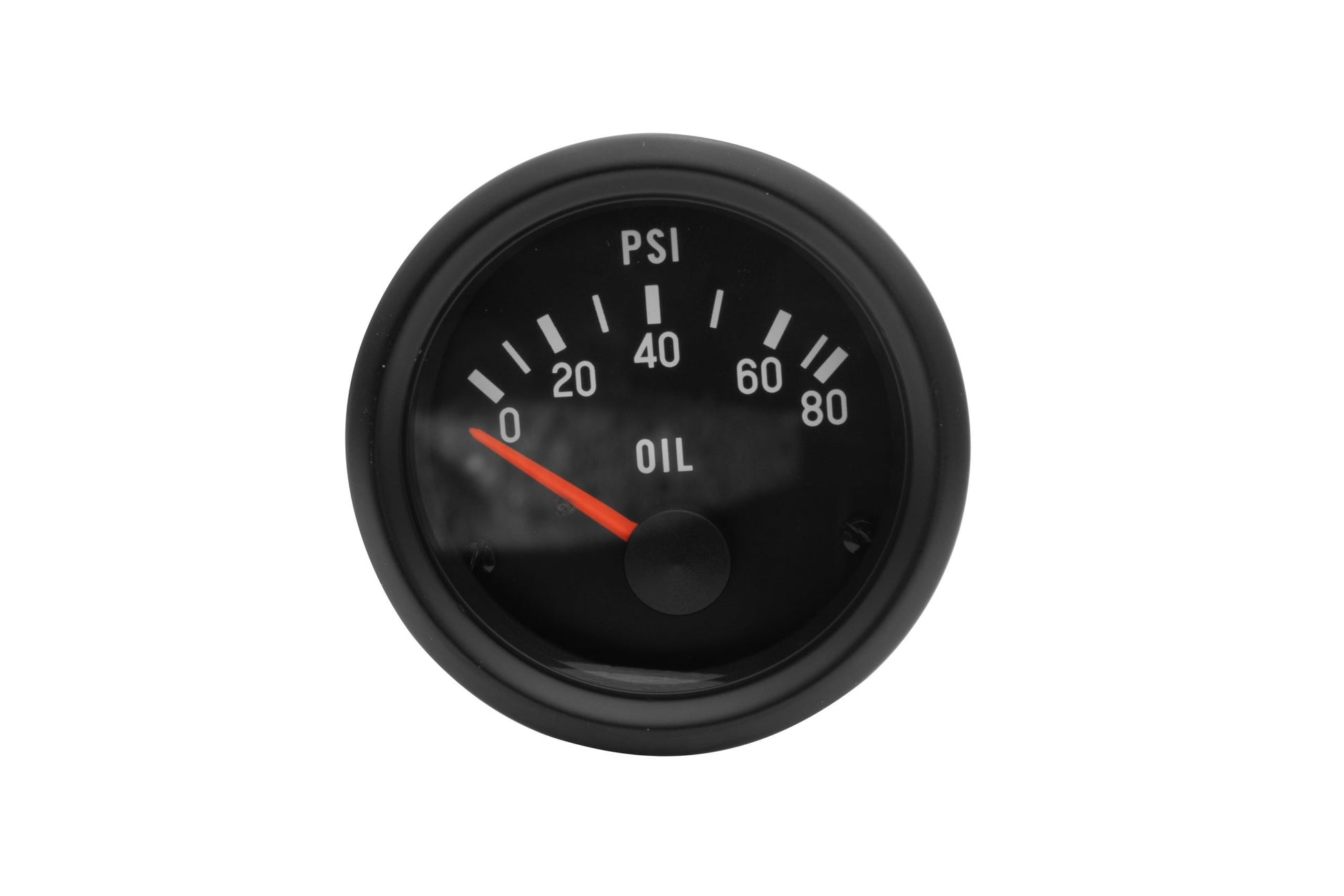

14-5004-0 Oil Pressure Gauge 0-80psi, instrument measuring range 5-184 Ohms compatible with the following senders: V3-6000-1, V3-6000-3, V3-6000-6 V3-6000-9 (sender not included).

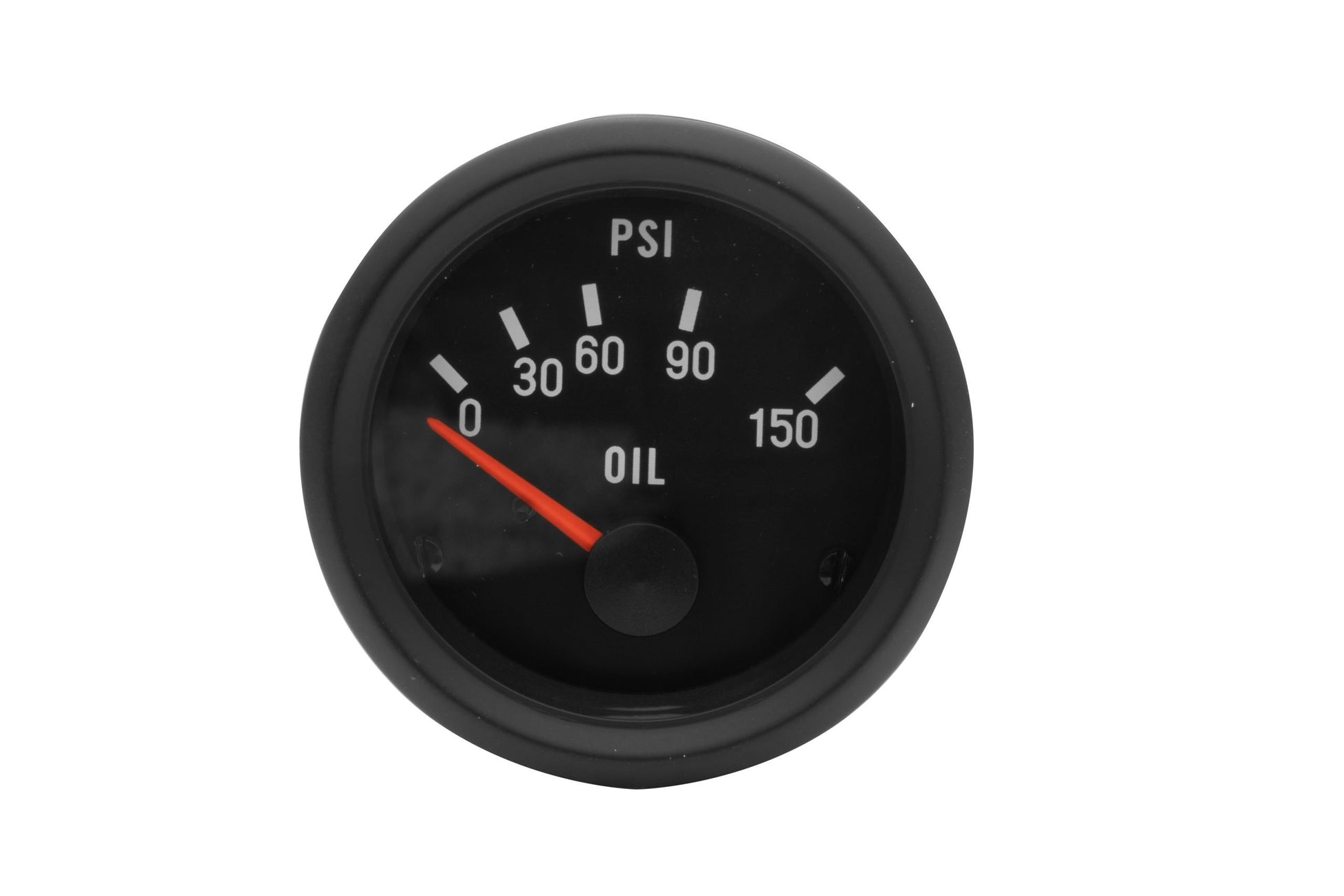

14-5004-1 Oil Pressure Gauge 0-150psi, instrument measuring range 5-184 Ohms compatible with the following senders: V3-6001-5, V3-6002-3, V3-6002-5 (sender not included).

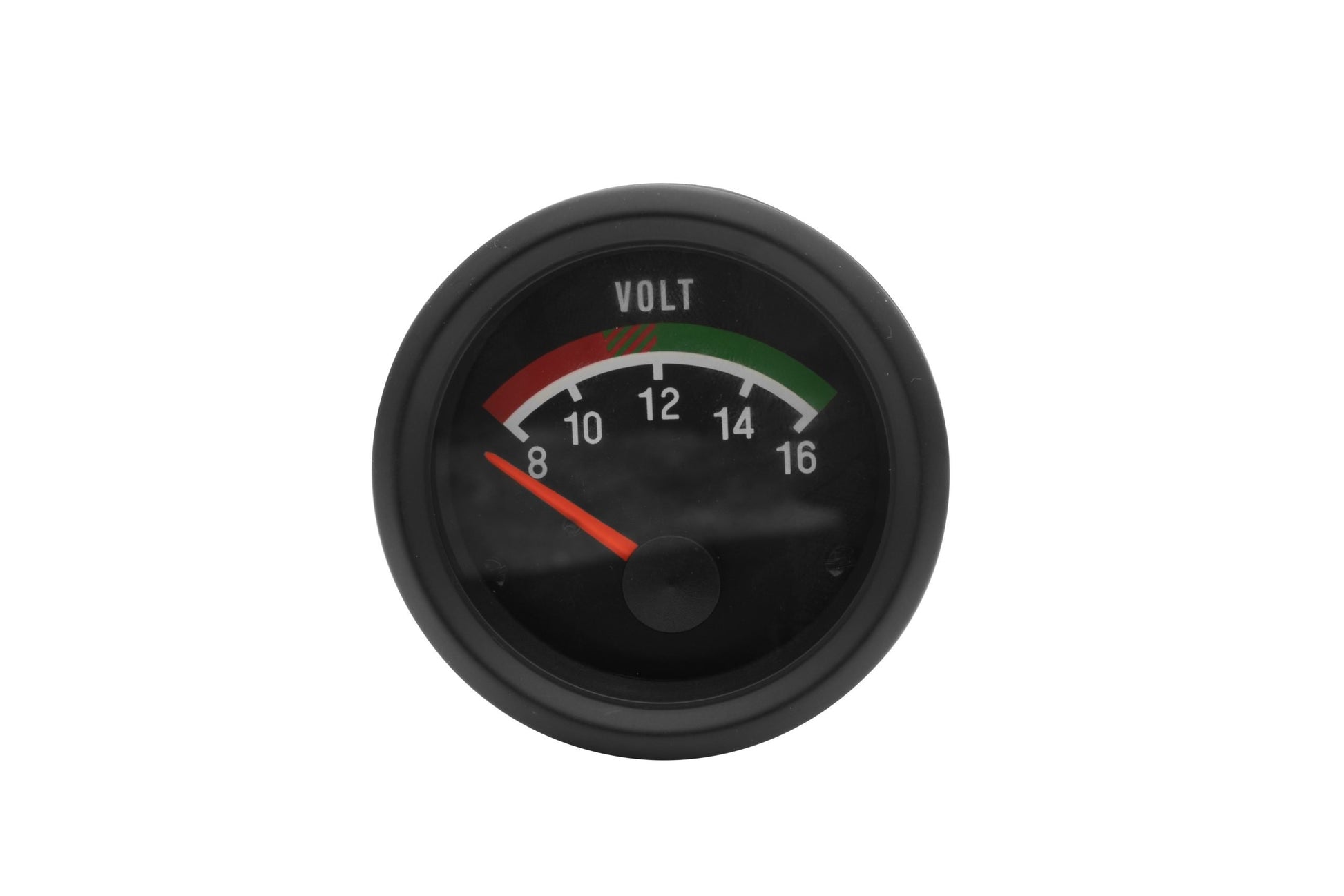

14-3204-1 Voltage Gauge 8-16 Volts.

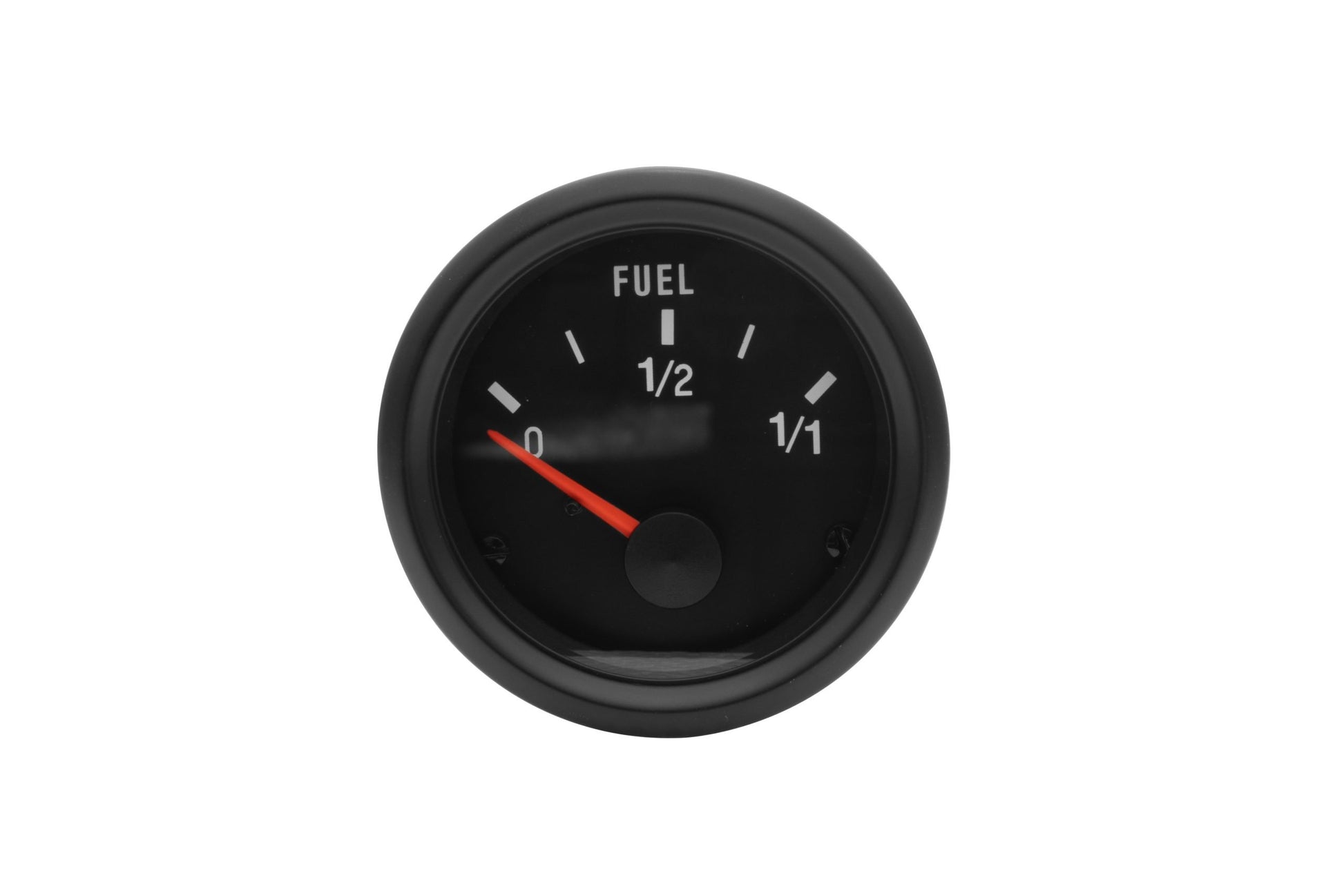

14-0102-0 Fuel Gauge, with quarter indicators, compatible with the following senders: V2-2101-2, 98-2021-B, 98-9195-B, 98-9193-B (sender not included).

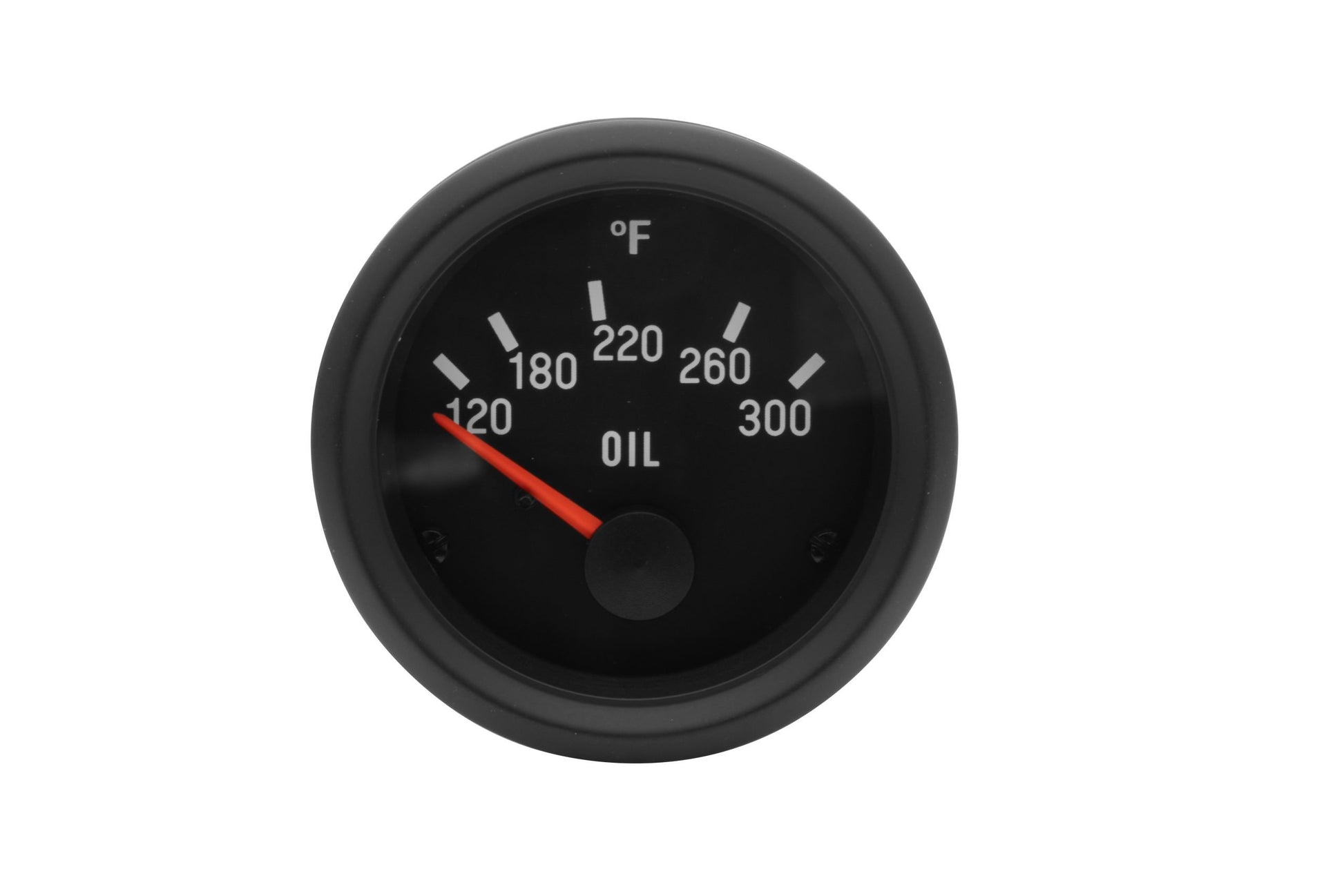

4-1001-2 Oil Temperature Gauge 120-300 degrees Fahrenheit, Measurement range 20-300Ohms, compatible with the following senders: V3-2305-B, V3- 2342-3, V3-2305-5, V3-2305-6, V3-2305-7 (sender not included).

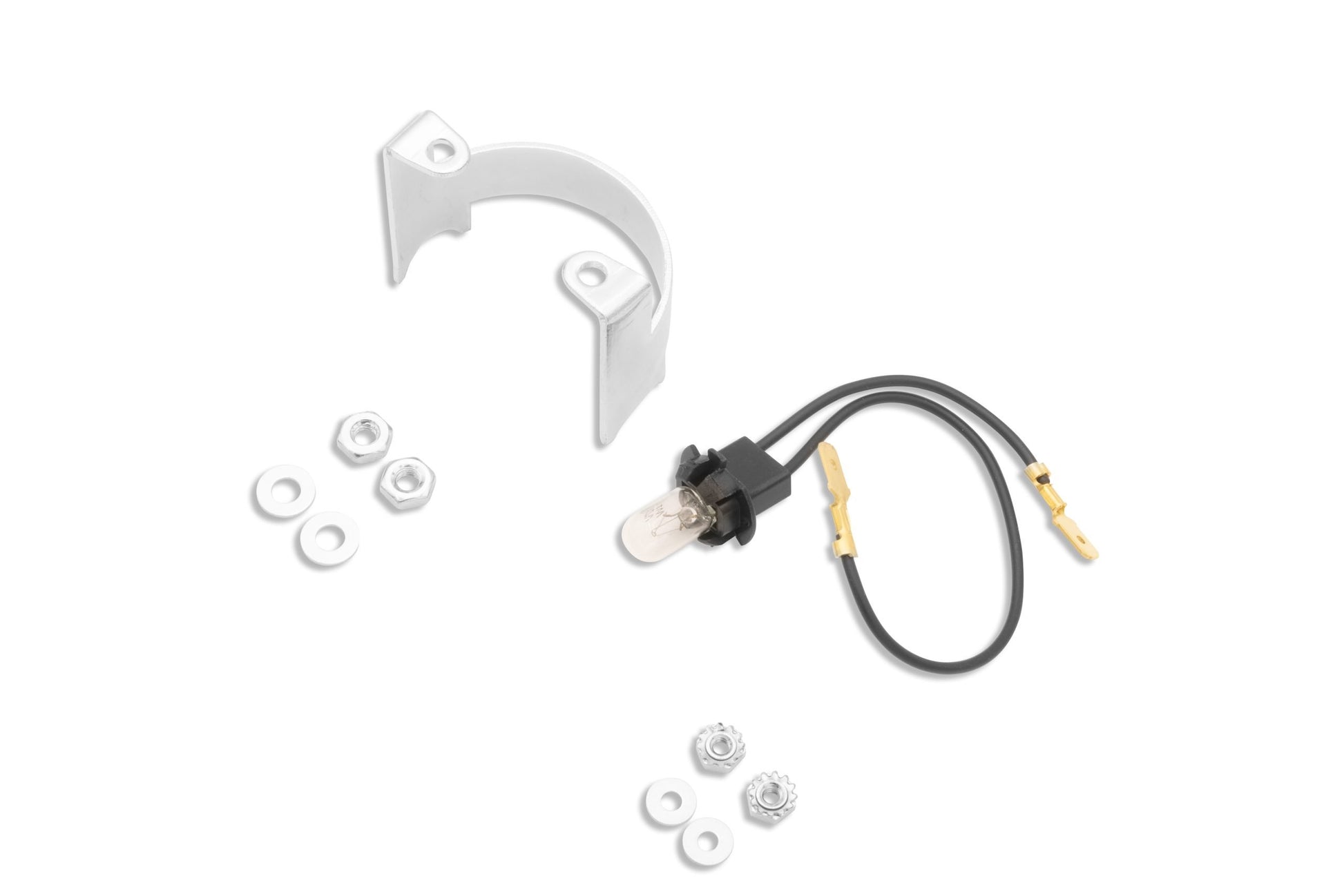

Included with each gauge: Mounting bracket and hardware, Gauge to Dashboard O-ring and detailed instructions.
Sold Individually.
