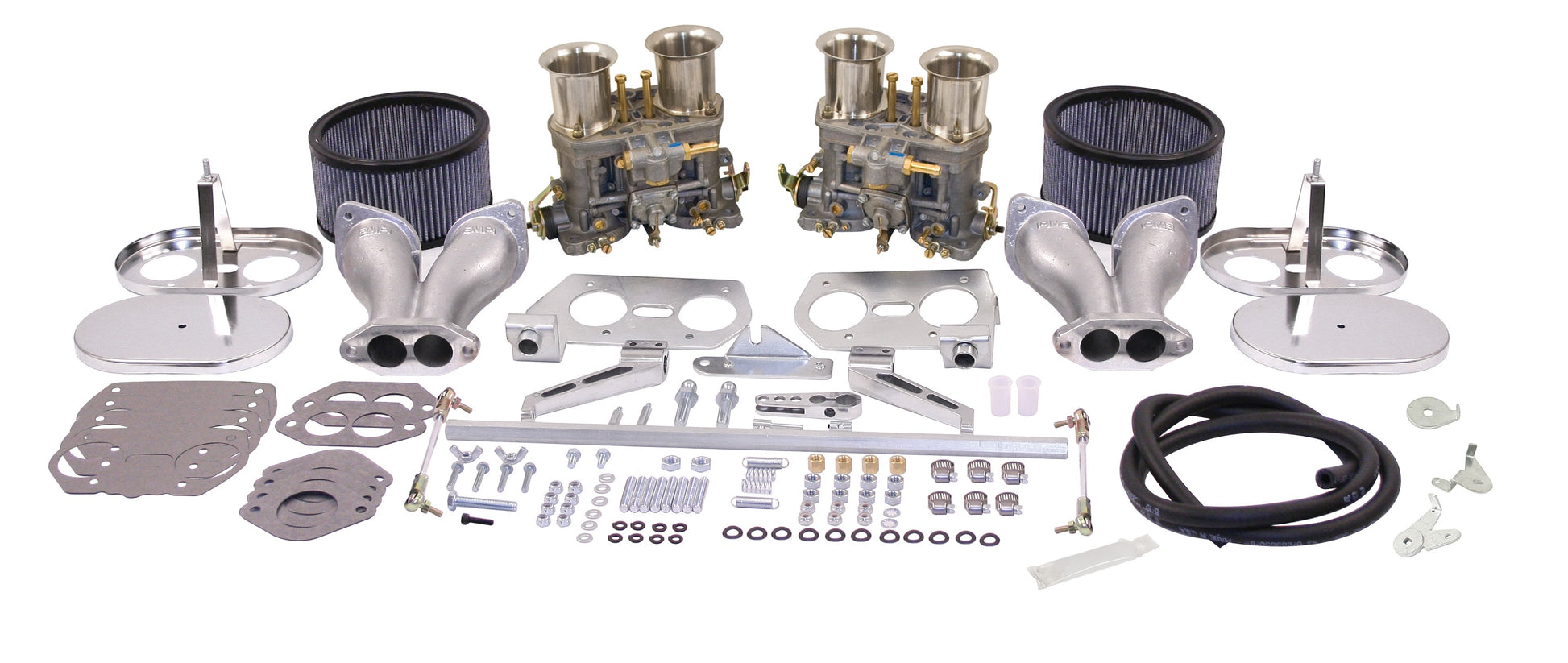

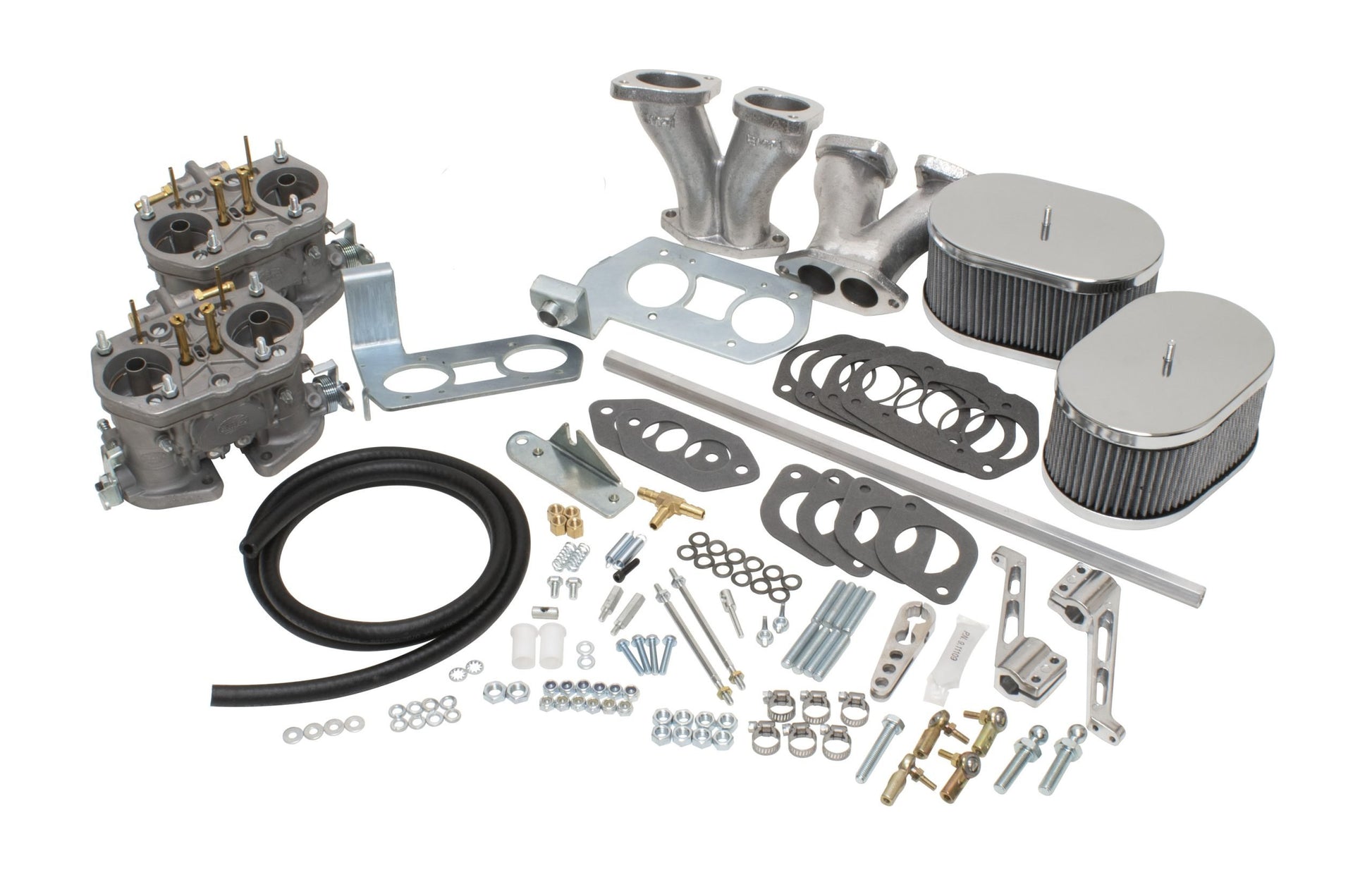

EMPI Dual 40 or 44 WEBER IDF Hex Bar Carb Kit With Chrome Air Cleaners for Type 1 Upright Engines

EMPI's VW WEBER IDF Carb Kits.
Performance, reliability and race proven for decades. WEBER Carbs. offer ultimate engine tuning with total air and fuel metering and adjustment. The IDF-XE Plus series IDF's have separate idle and main circuits featuring changeable air and  fuel jets. Intake air is metered by changeable venturies and accelerator pump is adjustable for maximum acceleration. Jets, gaskets are readily available world wide. All our kits are pre-jetted for VW engines. Choose the appropriate size carburetor for your application. When future engine modification is planned, size-up now! Basic rule of thumb..

• 40mm Carbs. for engines up to 1800cc
• 44mm Carbs. for engines up to 2200cc

All Kits Feature:
• Aluminum Alloy Hex Bar with Steel Ball Ends
• Sealed Aircraft Heim Rod Ends
• Ball Burnished/Polished offset Aluminum Intake Manifolds
• Thick High Strength Steel Linkage Mounts
• Chrome Air Filters w/ High Flow Gauze Elements
• Coil Relocation Bracket
• Brass Fuel Tee
• Detailed & Illustrated Instructions
• 40mm Carbs. do not include Velocity Stacks

AC198-7317 W

AC198-7319 W
43-7317
43-7319
