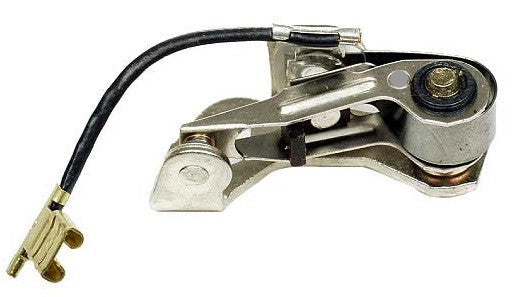

8191400610 JP Group Classic Line Ignition Breaker Points - VW Beetle Bus Ghia

JP Group Classic Line Ignition Breaker Points – 8191400610

The 8191400610 ignition points are designed to provide a reliable electrical trigger for your ignition coil. In a classic mechanical distributor, these points open and close as the distributor shaft rotates, collapsing the magnetic field in the coil to send a high-voltage spark to the spark plugs. The Classic Line series from JP Group focuses on maintaining the original metallurgy and spring tension required to prevent "points bounce" at higher RPMs.

These points are a direct replacement for the original 059-998-051B part number. Whether you are performing a routine tune-up or troubleshooting a "no-start" condition, installing a fresh set of points along with a new condenser is the most effective way to ensure a strong, consistent spark.

Detailed Vehicle Compatibility

VW Beetle:

1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Super Beetle:

1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Transporter (Bus):

1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Thing:

1973, 1974

Porsche 914:

1970, 1971, 1972, 1973, 1974, 1975, 1976

Product Highlights & Features

• OE Interchange: Fully compatible with Bosch distributor systems and interchangeable with part numbers 059998051B and 311998063.

• Precise Gap Control: Engineered for easy adjustment to the standard .016" (0.4mm) gap setting used on most VW air-cooled engines.

• Corrosion Resistant: Features plated metal components to resist moisture and oxidation inside the distributor cap.

Technical Specifications

• Part Number: 8191400610

• JP Group Alt Number: JP-8704-0 (Classic Line)

• Application: Mechanical/Vacuum Advance Distributors

• Unit of Sale: Sold Individually

Installation & Maintenance Tips

• The Gap is Key: Always set the points gap when the rubbing block is on the highest point of the distributor cam. Use a feeler gauge to set it to .016" (0.4mm).

• Clean the Contacts: Before starting the engine for the first time, pull a clean piece of cardstock (like a business card) through the closed points to remove any protective film or oil from the factory.

• Distributor Cam Lube: Apply a very small dab of specialized distributor cam grease to the lobe. This prevents the rubbing block from wearing down prematurely, which would close the points gap over time.
