VW Type 1 Shift Rod Guide Bushing (Delrin) - 98-2045-B

VW Shift Rod Guide Bushing – 111-701-259AD

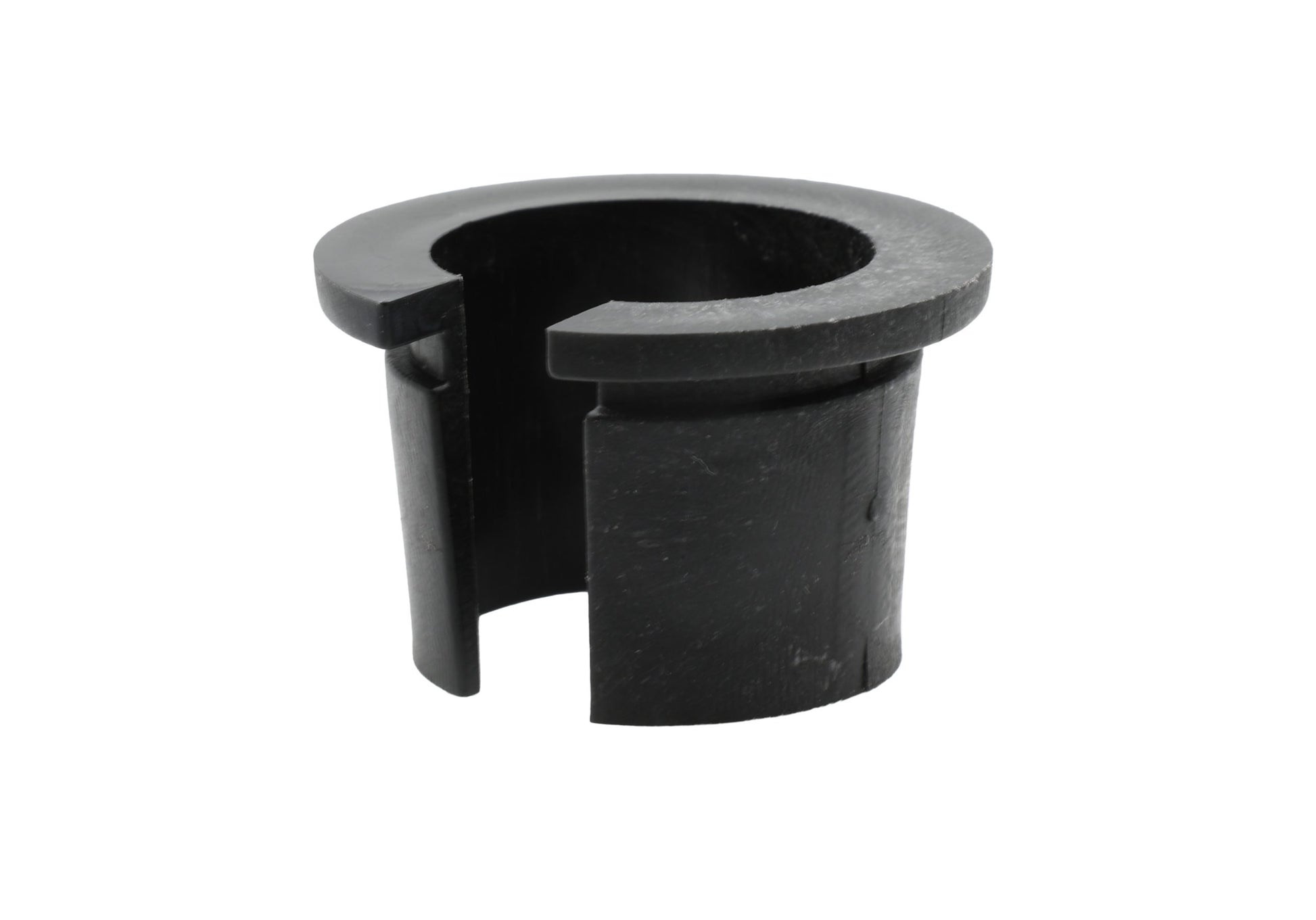

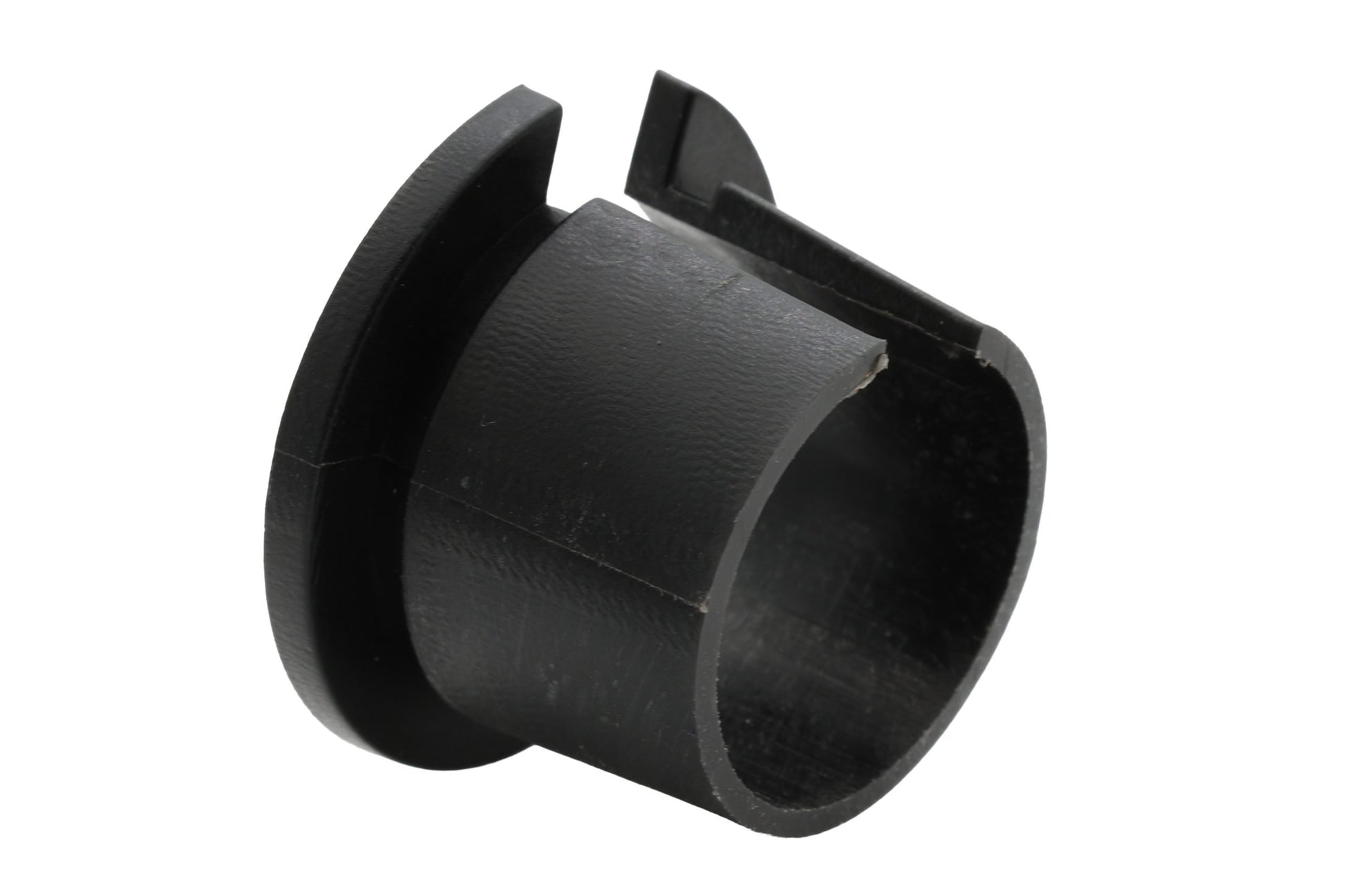

This Delrin shift rod guide bushing replaces the stock shift rod bushing, which is known to be difficult to install, wear prematurely, and provide a loose, imprecise shifter feel.

Engineered for improved durability, this replacement bushing delivers smoother, more precise shifting with a solid, positive feel.

Recommended Additional Upgrades:
Billet Shift Coupler P/N: 16-5110-7 & 16-5106-7

Note: Apply grease to both the inside and outside of the bushing before installation. Attempting to remove the bushing after installation may damage or break it.

Detailed Vehicle Compatibility This bushing fits the standard shift rod hanger across nearly all air-cooled VW models:

VW Beetle (Standard):

• 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Bus (Type 2):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966

VW Type 3:

• 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Thing:

• 1973, 1974

Installation & Maintenance Tips

• Grease is Required: Apply a generous coating of multipurpose lithium grease to the inside of the bushing and the shift rod surface to ensure longevity.

• Access Tip: You can usually access this bushing by removing the shifter assembly. Use a long piece of wire or a "grabber" tool to help position the new bushing into the hanger deep inside the tunnel.

• Check the Coupler: If you are still experiencing shifting issues after replacing this bushing, check the rear shift coupler under the rear seat inspection plate, as they often wear out at the same time.

111701259A
