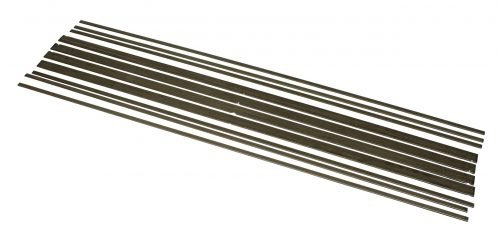

Replacement Torsion Leaves, Standard Width, Ball Joint.

Stock Width VW Ball Joint Torsion Leaves – 1966–1977 Beetle, Ghia & Thing

Type 1 Ball Joint Beam – 37.5" Wide | Sold Per Tube

Restore your VW’s front suspension with these stock-width torsion leaves, designed for Type 1 ball joint front beams measuring 37.5 inches wide. These torsion leaves are the core springs that support the front end of your vehicle, allowing smooth suspension movement and reliable ride quality.

Each leaf pack contains 10 torsion leaves (6 narrow, 4 wide) and is pre-drilled with offset outer dimples for proper alignment in ball joint beams. The leaves stack in a specific pattern to form a serrated diamond shape, which keys into the center block of the beam and aligns with a set screw for secure installation.

Fitment:

• 1966–1977 Standard Beetle
• 1966–1974 Karmann Ghia
• 1973–1974 VW Thing

Features:

• Stock Type 1 ball joint width: 37.5"
• Sold per tube – 2 leaf packs required per vehicle
• Pre-drilled dimples for ball joint beams
• Includes 10 torsion leaves per pack (6 narrow, 4 wide)
• Supports front suspension movement and ride height
• Ideal for restorations or beam rebuilds

Installation Tip:
Stack the leaves in the following order for proper shape and fit:
1 narrow, 2 narrow, 1 wide, 1 wide, 1 wide, 1 wide, 2 narrow, 1 narrow.
Align the pack with the center block and secure with the set screw. Trailing arms slide onto the leaves and are fastened with set screws.

131411107A

131 411 107A
