03G-103-707 VW & Audi Plastic Oil Level Sensor Block-Off Plate

Oil Level Sensor Block-Off Plate – 03G-103-707

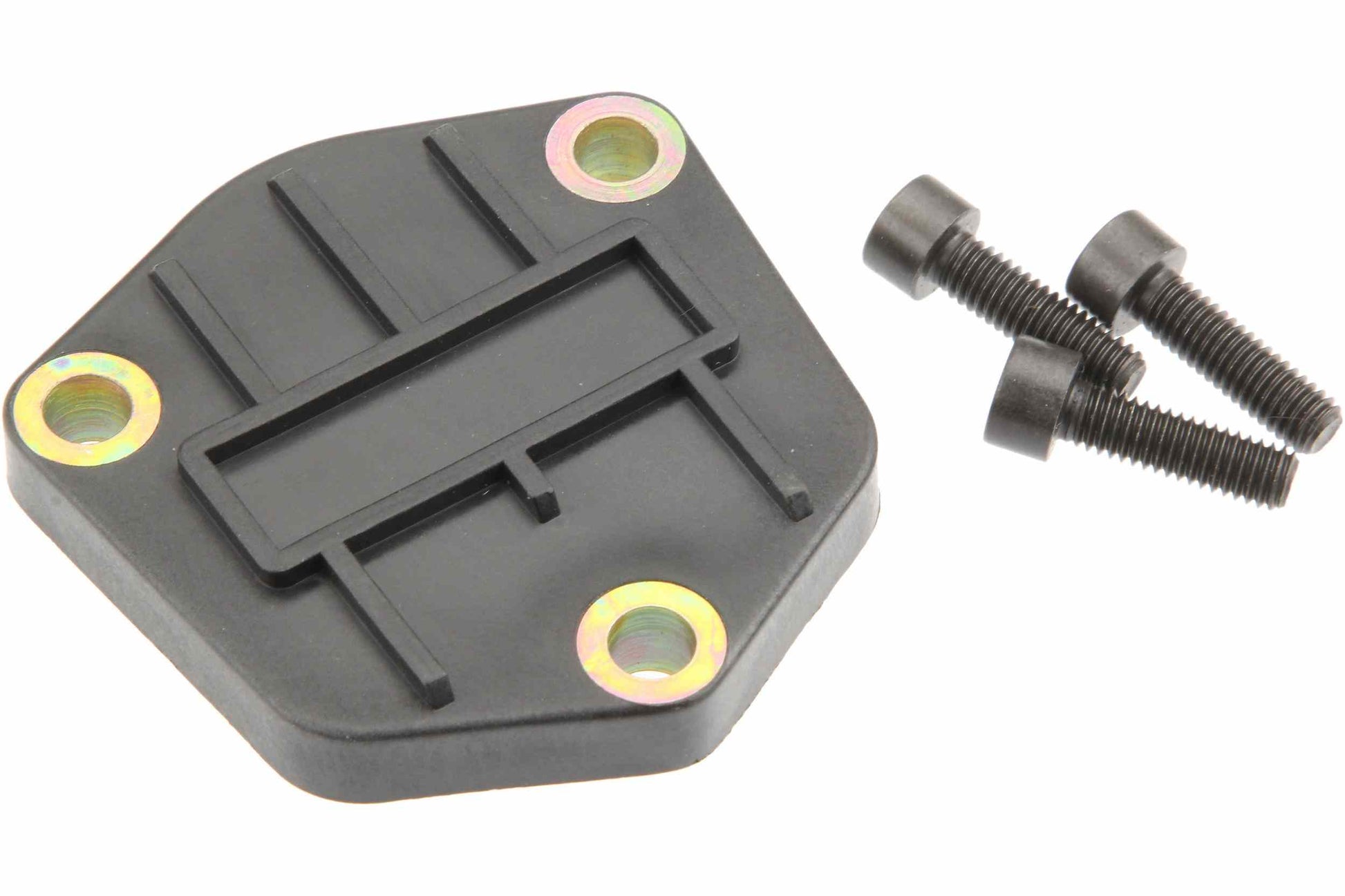

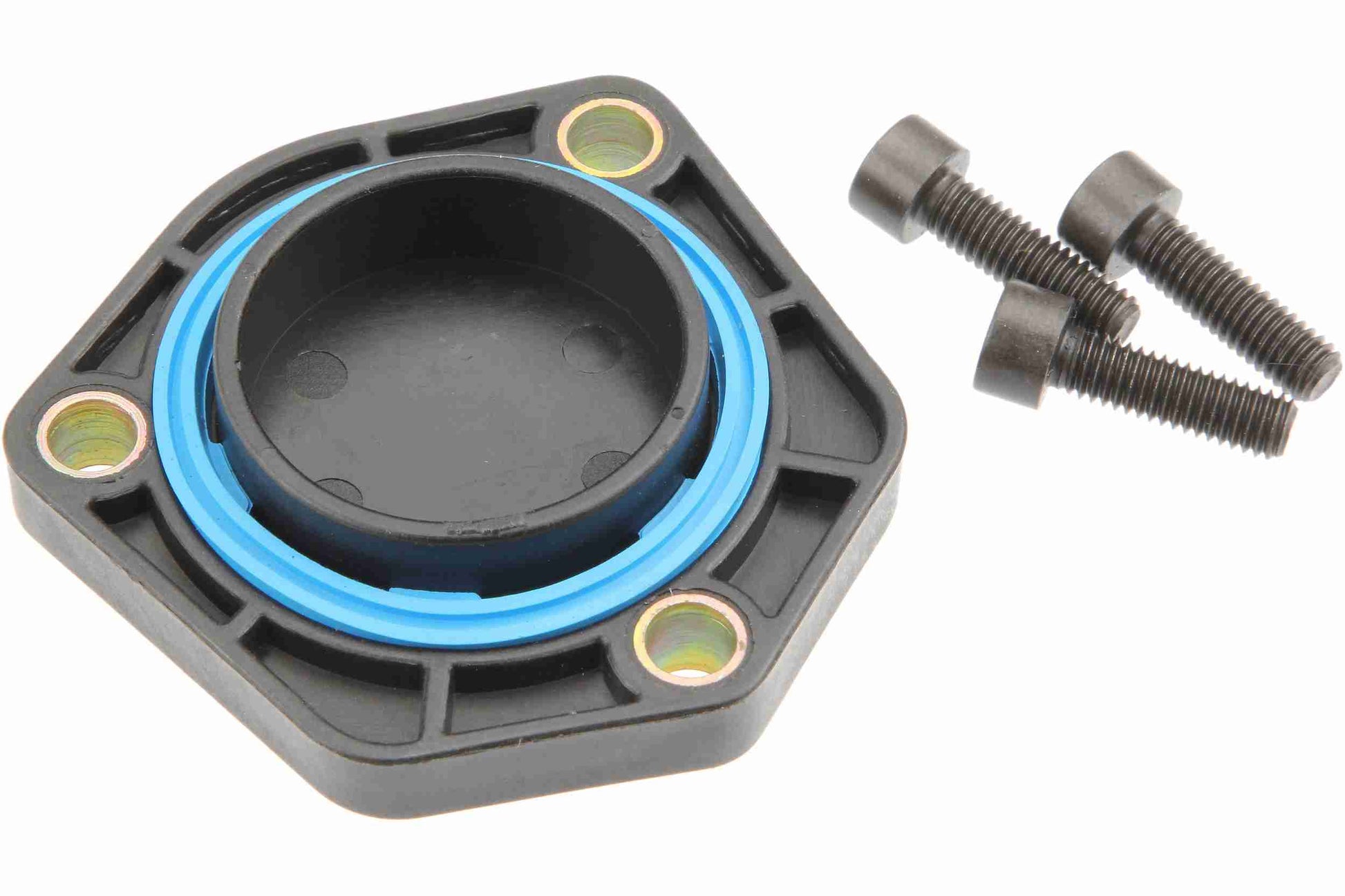

The 03G-103-707 is a high-strength plastic plate designed to seal the oil level sensor aperture on a variety of VW and Audi oil pans. This part is necessary when installing a replacement pan that features a sensor hole on a vehicle that was not originally equipped with an electronic oil level/temperature sensor. The plastic construction is designed to match the thermal expansion rates of modern composite and steel pans, ensuring a reliable seal under high engine temperatures.

This plate uses the factory three-bolt mounting pattern. Because it is made of plastic, it is highly resistant to the corrosive effects of road salt and moisture, making it a durable choice for the life of the engine.

Detailed Vehicle Compatibility

Audi A3:

• 2008, 2010, 2011, 2012

Audi A3 Quattro:

• 2010, 2011, 2012

Audi A4:

• 1997, 1998, 1999, 2001

Audi A4 Quattro:

• 1997, 1998, 1999, 2001

Audi TT Quattro:

• 2010

VW Beetle:

• 2004, 2005, 2006, 2012

VW CC:

• 2010, 2011, 2012

VW Eos:

• 2010, 2011, 2012

VW GTI:

• 2008, 2010, 2011, 2012

VW Golf:

• 1999, 2000, 2001

VW Golf R:

• 2012, 2013

VW Jetta:

• 1999, 2000, 2001, 2002, 2003

VW Passat:

• 2012, 2013, 2014

Product Highlights & Features

• Durable Plastic Construction: Engineered to handle the extreme heat and chemical environment of the engine's oiling system without warping.

• Corrosion Proof: Unlike metal alternatives, the plastic material is completely immune to rust and galvanic corrosion.

• OEM Fitment: Features the exact three-hole geometry required for a flush mount against the oil pan flange.

• Lightweight Design: Provides an effective seal without adding unnecessary weight to the oil pan assembly.

Technical Specifications

• Part Number: 03G-103-707

• Material: High-Temperature Composite Plastic

• Mounting Pattern: 3-Bolt Triangular

• Color: Black

Installation & Maintenance Tips

• Hardware Caution: Because the plate is plastic, it is even more important to use a torque wrench. Tighten the bolts to 10 Nm.

• Clean Surface: Ensure the mounting flange on the oil pan is completely smooth. Any burrs or old sealant can crack the plastic plate when it is tightened down.

• Avoid Over-Torqueing: Plastic can stress-crack if the bolts are overtightened. Ensure the load is spread evenly across all three points.
