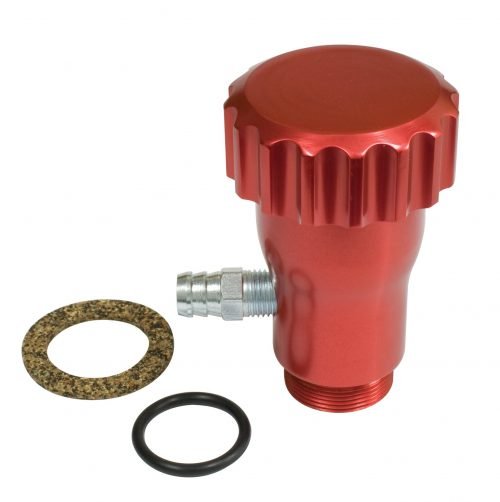

18-1099-0 EMPI Billet Red Anodized Oil Filler with Cap - VW Beetle (1961-1979)

EMPI Billet Red Anodized Oil Filler with Matching Cap – 18-1099-0

Transform your engine bay with the EMPI Billet Red Anodized Oil Filler. This high-quality oil filler neck is CNC-machined from 6061 T-6 billet aluminum and features a stunning red anodized finish that provides both durability and a custom show-quality look. The "Smooth-Flow" internal design makes adding oil easier and less messy than the stock baffled fillers, while the included billet grooved cap ensures a tight seal and easy removal by hand.

Designed for performance and aesthetics, this filler includes a 1/4" NPT to 1/2" barbed hose fitting, allowing for a clean hookup to your breather box or air cleaner. Whether you are building a high-performance street machine or a clean resto-mod, this red anodized filler is the perfect finishing touch for any air-cooled VW upright engine.

Detailed Vehicle Compatibility This oil filler is designed for upright air-cooled engines and fits the following models:

VW Beetle (Standard):

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Super Beetle:

• 1971, 1972, 1973, 1974

VW Karmann Ghia:

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Bus (Transporter, Kombi):

• 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971

Product Highlights & Features Billet Aluminum Construction: Precision CNC-machined from 6061 T-6 aluminum for superior strength and a lightweight design.

Red Anodized Finish: Provides a vibrant, long-lasting color that resists fading and protects the aluminum from oxidation and road grime.

Integrated Vent: Supplied with a 1/4" NPT to 1/2" barbed fitting for easy connection to a crankcase breather system or air cleaner.

Grooved Screw-On Cap: Includes a matching red anodized billet cap with deep grooves for improved grip when opening or closing the filler.

Technical Specifications Part Number: 18-1099-0

Application: Upright Air-Cooled Engines (1200cc-1600cc)

Material: 6061 T-6 Billet Aluminum

Finish: Red Anodized

Installation & Maintenance Tips Use the Correct Gasket: This kit is supplied with a new base gasket and O-ring. Ensure the mounting surface on the generator or alternator stand is clean and free of old gasket material before installation.

Proper Vent Routing: When installing the breather hose, ensure the line has no kinks and is routed away from the drive belt and cooling fan. A well-vented engine helps prevent oil leaks from building pressure.

Hand-Tighten Only: The billet cap is designed to seal effectively with hand-tightening. Do not use tools to tighten the cap, as this could damage the O-ring or the threads.

Clean with Care: To maintain the vibrant red finish, avoid using harsh caustic engine cleaners. Use a mild soap and water solution or a dedicated aluminum polish safe for anodized surfaces.
