113-407-075GR - T1 68-79 Disc Brake Rotor 4x130 German Zimmerman

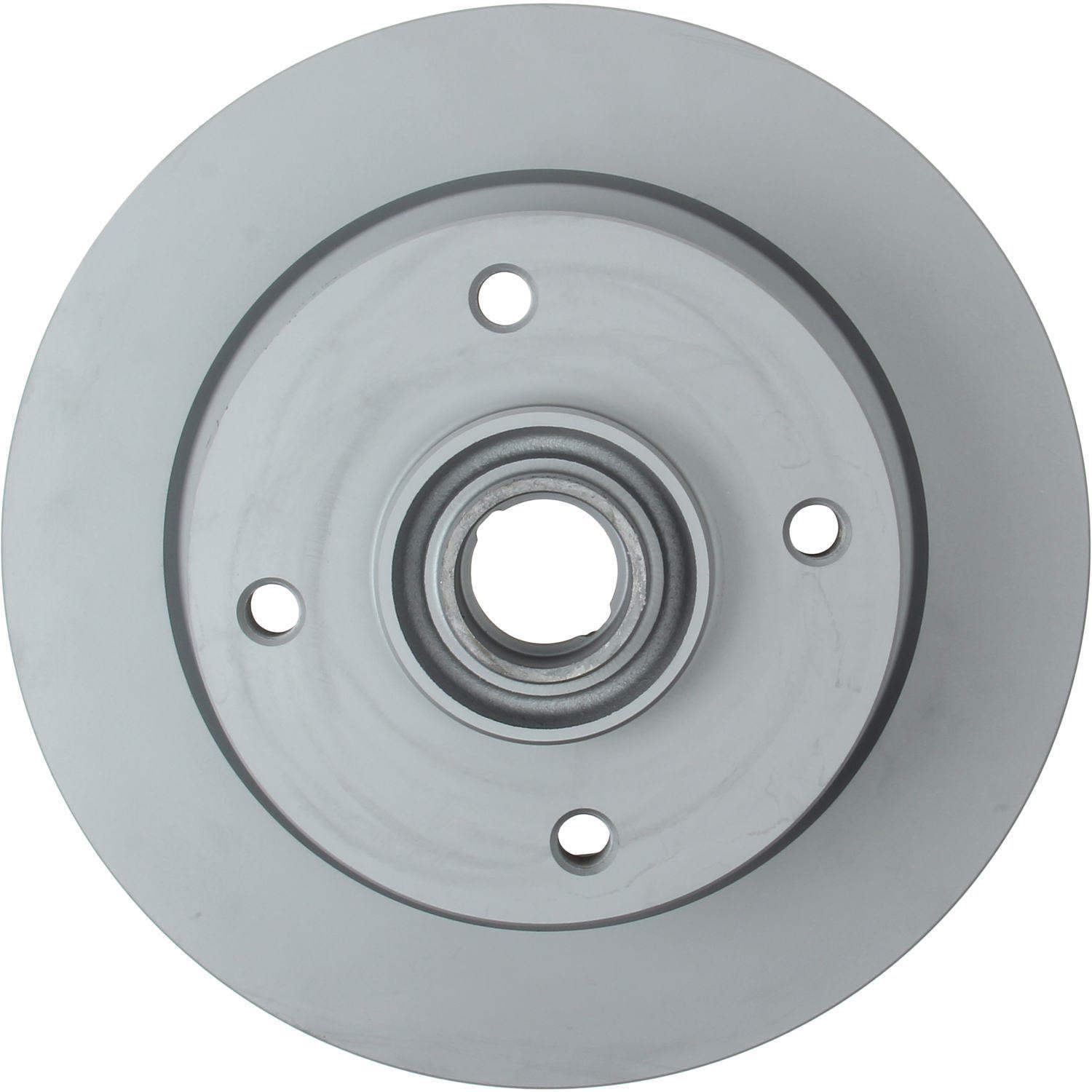

Zimmermann Front Disc Brake Rotor (4x130mm)

Upgrade or restore your classic Volkswagen’s stopping power with this Premium German-made Brake Rotor from Zimmermann. Engineered to meet strict standards, this rotor provides the thermal stability and structural integrity required for safe, consistent braking in vintage air-cooled applications.

As a high-quality German component, this rotor is the preferred choice for enthusiasts who prioritize safety and original fitment over budget alternatives.

Vehicle Compatibility

This rotor (Part # 113-407-075) is designed for Volkswagens factory-equipped with front disc brakes or those using a Ghia-style disc brake conversion kit:

• VW Beetle (Standard): 1967–1977

• VW Super Beetle: 1971–1979

• VW Karmann Ghia: 1967–1974

• VW Type 3 (Fastback, Squareback, Notchback): 1966–1971

• VW Thing (Type 181): 1973–1974

Technical Specifications

• Part Number: 113407075

• Bolt Pattern: 4 x 130mm (Standard VW 4-Lug)

• Thread Size: M14 x 1.5 (Threaded holes for lug bolts)

• Diameter: 278mm

• Thickness: 9.5mm (Solid Rotor)

• Material: High-carbon cast iron for superior heat dissipation

• Country of Origin: Germany

Key Features & Benefits

• Precision Balancing: Eliminates steering wheel vibration and ensures smooth operation even under heavy braking.

• Original Hub Integration: Includes the integrated hub and wheel centering ring to ensure your wheels sit perfectly flush and centered for a wobble-free ride.

• Heat Dissipation: Designed to resist warping and brake fade, preserving the life of your brake pads and calipers.

• Direct Bolt-On: No machining or modification required. This is a direct replacement for the original part number.

Important Installation Notes

Replace in Pairs: For balanced braking performance and to prevent the vehicle from pulling to one side, it is strongly recommended to replace both front rotors at the same time.

Bearings & Seals: This rotor does not include wheel bearings or grease seals. You will need to install new inner and outer bearing races before installation.

Grease Caps: These German Zimmermann units are designed to accommodate standard OE-style grease caps for a factory-correct fit.

600109420

600109452

113407075GR

113407075
