111-805-352E VW Beetle Front Right Lower Door Hinge Pillar Repair Panel

VW Front Right Door Hinge Pillar (Lower A-Pillar Section) – 111-805-352E

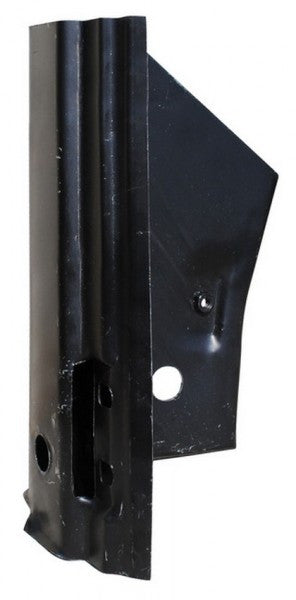

The 111-805-352E is a heavy-duty sheet metal repair panel designed to replace the common rust-prone lower section of the front right "A-pillar." This pillar serves as the structural mounting point for the door hinges and is frequently compromised by moisture trapped behind the front fenders or leaking door seals. Unlike simple patch plates, this "E" suffix version is specifically engineered for 3-bolt hinge configurations found on mid-to-late production air-cooled Volkswagens.

Fabricated from high-quality die-stamped steel, this panel features the complex curves required to match the factory body lines perfectly. Crucially, it includes the internal threaded reinforcement plate (screw plate) already welded into position, ensuring your door hinges have a solid, secure foundation for proper door alignment. This is a weld-in component that provides a permanent structural repair rather than a cosmetic cover-up.

Detailed Vehicle Compatibility This lower hinge pillar section is designed for the following models with 3-bolt hinges:

VW Beetle (Standard):

• 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

Product Highlights & Features

• Integrated Threaded Plate: Features the heavy-duty internal reinforcement needed to receive the door hinge mounting bolts.

• Precision Stamped Steel: Matches the original factory profile for a seamless look once welded, ground smooth, and painted.

• Structural Integrity: Replaces the critical lower hinge area which is vital for preventing door "sag" and ensuring correct latching.

• Weld-Ready Finish: Typically comes in a protective transport primer to prevent flash rust during shipping and storage.

Technical Specifications

• Part Number: 111-805-352E

• Side: Right Hand (Passenger Side)

• Height: Approximately 8 to 9 inches (Lower Section)

• Hinge Style: 3-Bolt Pattern

• Material: Die-Formed Heavy Gauge Steel

Installation & Maintenance Tips

• Alignment is Critical: Before final welding, bolt the door hinge to the new panel and test the door’s swing and gap. It is much easier to adjust the pillar position before it is fully seam-welded.

• Rust Prevention: Treat the inner side of the pillar and the adjacent heater channel with a weld-through primer or a cavity wax after installation to prevent "inside-out" rust from returning.

• Check the Heater Channel: Rust in the A-pillar often extends into the front of the heater channel. Inspect the mounting area where the pillar meets the rocker to see if additional channel repair is needed.

• Hardware Replacement: Since the old bolts are often seized or rounded off, it is highly recommended to use new 8mm x 15mm countersunk hinge screws (Part # N142881) when installing the door.
