211-843-438B VW Bus Sliding Door Lower Bracket - 1968-1979 Type 2

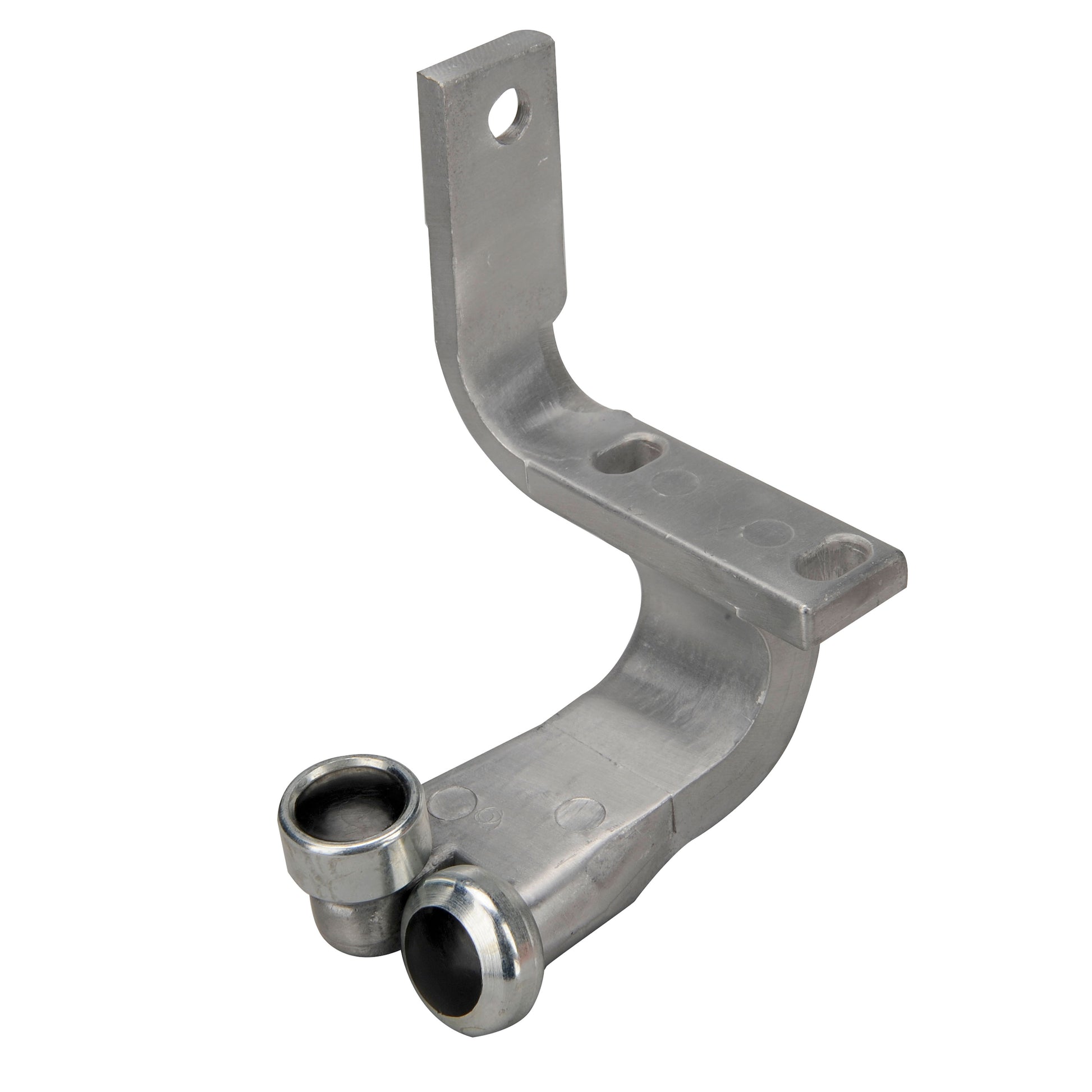

Sliding Door Lower Bracket – 211-843-438B

The 211-843-438B is a critical part of the late-model Bus sliding door assembly. While the rollers themselves often wear out, the bracket can become bent or severely rusted, which prevents the rollers from sitting at the correct angle. A compromised bracket is often the root cause of a sliding door that is difficult to latch or one that scrapes against the lower body sill.

This bracket is typically sold as the bare metal housing, allowing you to install new rollers and guide blocks into a fresh, solid foundation. It is designed to withstand the significant leverage and weight of the large "Bay Window" cargo door.

Detailed Vehicle Compatibility

VW Bus (Type 2 / Transporter):

• 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

Product Highlights & Features

• Heavy-Duty Construction: Built from thick-gauge steel or high-strength zinc casting to handle the constant stress of opening and closing the heavy side door.

• Correct Geometry: Precision-formed to maintain the factory-specified clearance between the door and the lower track.

• Versatile Compatibility: Compatible with original VW mounting hardware and both standard and heavy-duty replacement rollers.

Technical Specifications

• Part Number: 211-843-438B

• Position: Lower Front Sliding Door

• Material: Steel or Zinc Alloy

• Application: Left-Hand Drive and Right-Hand Drive models (check side orientation)

Installation & Maintenance Tips

• Hardware Replacement: The bolts holding this bracket to the door are often seized. It is highly recommended to use new Sliding Door Bracket Mounting Bolts (138-6x25 Qty. 2 & 211-831-701B Countersunk 8x16 Qty. 1) and high-strength thread locker during installation.

• Rust Prevention: Before installing the new bracket, ensure the bottom of the door is clean and treated with a rust-inhibitor. Applying a thin coat of paint or undercoating to the bracket will significantly extend its lifespan in wet climates.

211843438B
