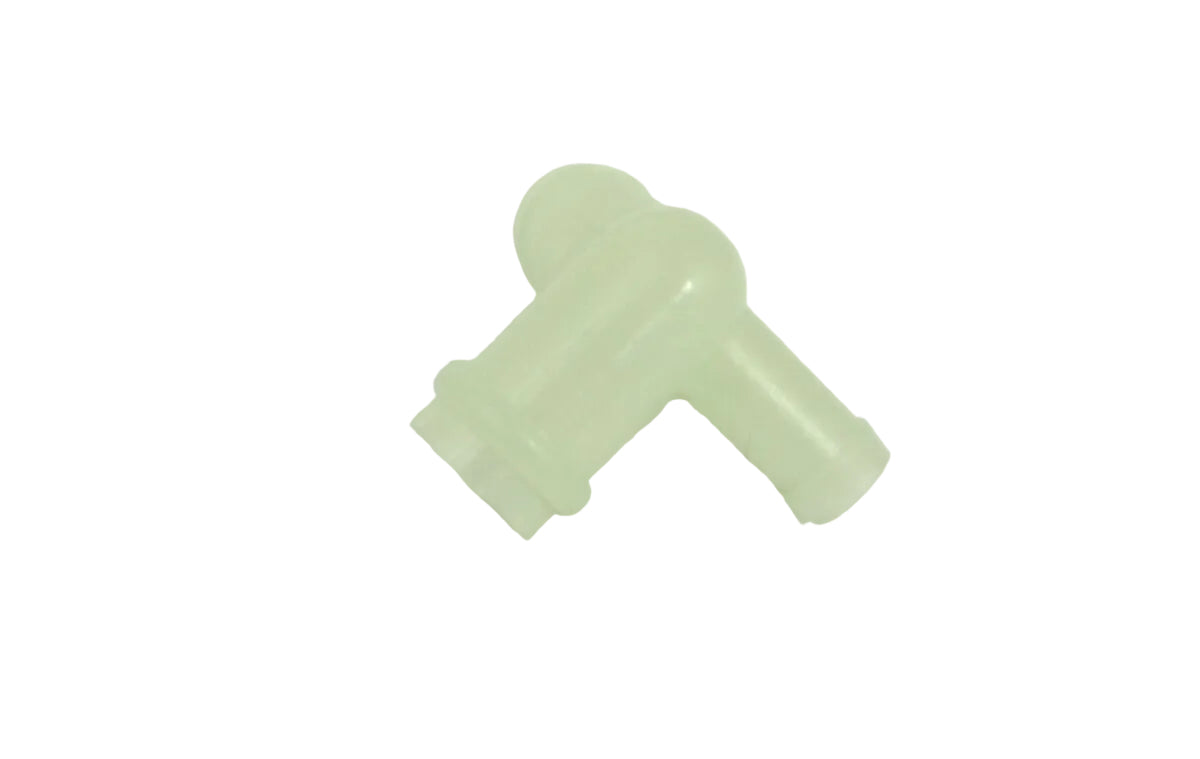

043-133-247 VW Fuel Injection 3-Way Air Distributor Fitting

3-Way Air Distributor Fitting – 043-133-247

Maintain the integrity of your fuel injection system with the 043-133-247 3-Way Air Distributor Fitting. This specialized vacuum connector is a critical component for late-model, fuel-injected air-cooled Volkswagens. It serves as a junction point, connecting the large air intake boot (located between the air flow meter and the throttle body) to various vacuum lines essential for engine idle control and emissions systems.

Made from durable, heat-resistant composite material, this "T" or "Y" style fitting is designed to withstand the high-vibration and high-heat environment of the engine compartment. Over time, original plastic fittings become brittle and crack, leading to unmetered air entering the system (vacuum leaks). A leak at this fitting will typically cause a lean running condition, erratic idle, or engine stalling. This is a direct replacement for the factory unit, ensuring a snug, leak-free fit with your rubber intake boots and vacuum hoses.

Detailed Vehicle Compatibility

This 3-way air distributor fitting is specific to the L-Jetronic fuel injection systems found on late Type 1 models continuously across these years:

VW Beetle (Standard):

• 1975, 1976, 1977

VW Super Beetle:

• 1975, 1976, 1977, 1978, 1979

Product Highlights & Features

• Precision Vacuum Routing: Correctly branches vacuum signals from the primary air intake to secondary components like the auxiliary air valve or charcoal canister.

• Direct OEM Replacement: Manufactured to the original factory dimensions for a "plug-and-play" installation without the need for hose modifications.

• Durable Construction: Built to resist the chemical degradation caused by oil vapors and fuel mist common in the intake tract.

• Solves Idle Issues: Replacing a cracked fitting is one of the simplest ways to resolve "hunting" idle and poor low-speed throttle response in FI Beetles.

Technical Specifications

• Part Number: 043-133-247

• Material: High-Temp Composite / Plastic

• Configuration: 3-Way Junction

• Application: Air Intake Boot to Vacuum Lines

Installation & Maintenance Tips

• Inspect the Boot: While replacing this fitting, closely examine the large rubber air intake boot for "spiderweb" cracks in the pleats. Even a tiny pinhole in the main boot will cause the same symptoms as a broken fitting.

• Use Correct Clamps: For the smaller vacuum lines connecting to this fitting, use high-quality fuel injection style clamps or zip ties to ensure a permanent seal. Avoid over-tightening worm-gear clamps, which can crush the plastic nipples on the fitting.

• Lubrication: If the fitting is difficult to slide into the intake boot, use a tiny amount of silicone spray or soapy water. Do not use petroleum grease, as it will cause the rubber intake boot to swell and eventually fail.

• Vacuum Diagram Check: If you are unsure which hoses connect to which port, refer to the vacuum routing sticker often located on the underside of the rear engine lid or in a factory service manual.
