09-272X Spark Plug Wire Set - VW Vanagon 1984-1991 1.9L 2.1L

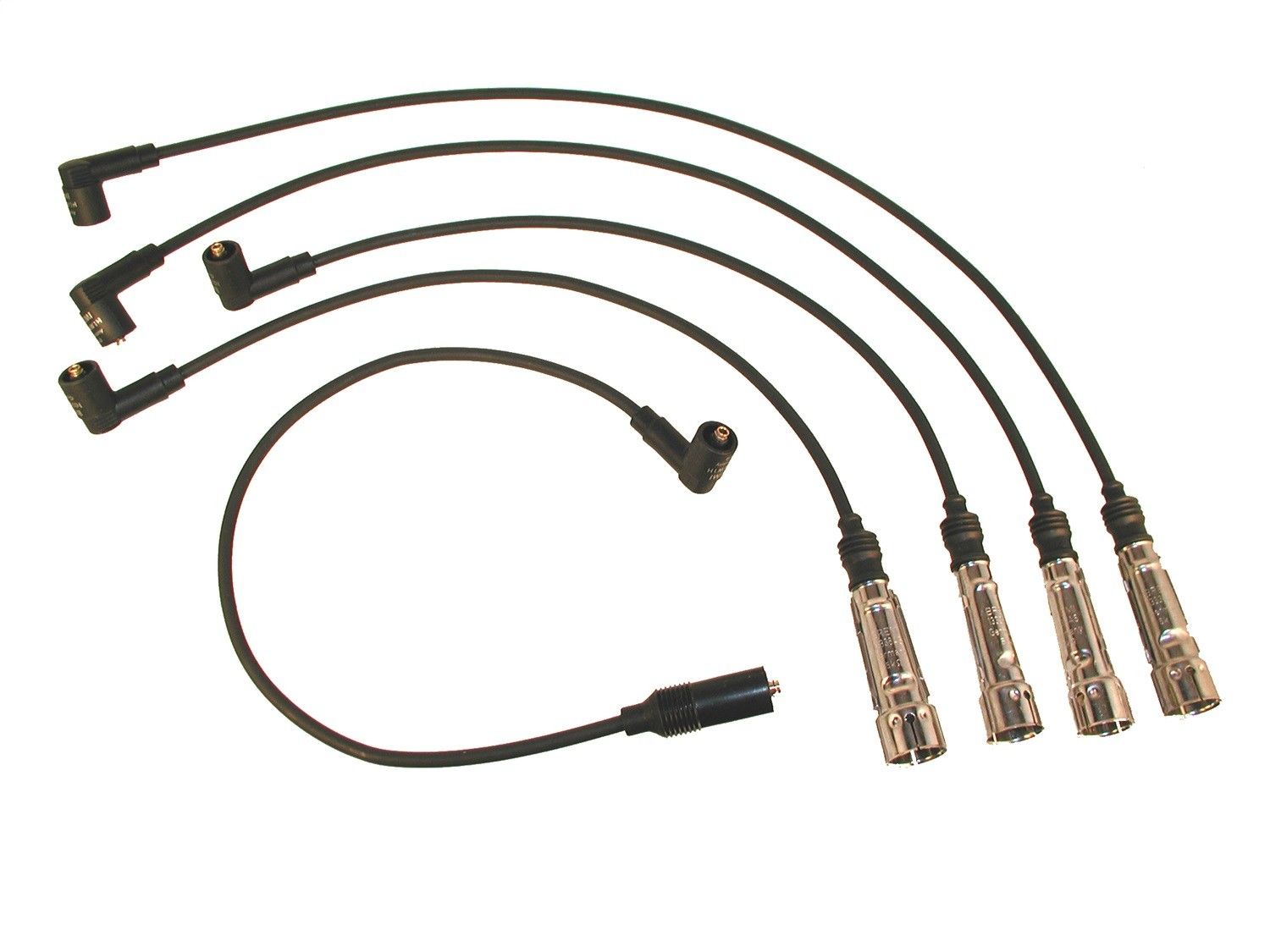

Spark Plug Wire Set – 09-272X / 200-998-031D

The 09-272X set is engineered to handle the unique demands of the Vanagon engine bay, where heat management and electrical insulation are critical. These wires often feature a 7mm or 8mm silicone jacket to resist the high ambient temperatures found in the rear-engine compartment.

Worn-out wires on a Wasserboxer often lead to "Vanagon Syndrome" symptoms, including intermittent stumbling, poor fuel economy, and hard starting in damp weather. Replacing the wires, especially when they show signs of arcing or the rubber boots become brittle, is one of the most effective ways to maintain engine reliability.

Detailed Vehicle Compatibility

Volkswagen Vanagon:

• 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Product Highlights & Features

• Interchange Versatility: Fully compatible with common industry part numbers including 276, 27462, ZEF 520, 57-299, 671-4102, 200-998-031DUS and 09-272.

• Engine Specific Lengths: Each wire is cut to the precise length required for the 1.9L and 2.1L engine layouts, ensuring clean routing and preventing contact with hot exhaust components.

• Superior Insulation: High-quality silicone outer jackets protect against oil, moisture, and thermal breakdown, ensuring a consistent spark in all weather conditions.

Technical Specifications

• Part Number: 09-272X

• OE Part Number: 200-998-031D

• Conductor Type: Mag-Core or Copper (depending on specific brand)

• Engine Fitment: 1.9L & 2.1L Digijet/Digifant Wasserboxer

Installation & Maintenance Tips

• One-by-One Replacement: To avoid mixing up the firing order, always replace one wire at a time. Match the length of the new wire to the one you are removing.

• Dielectric Grease: Apply a small amount of dielectric grease to the inside of the spark plug boots and the distributor cap boots. This prevents the rubber from sticking to the porcelain and helps seal out moisture.

• Routing Security: Use the factory plastic wire looms or clips. Allowing these wires to drape over the metal exhaust shields or the alternator belt will cause immediate failure.

276

27462

ZEF 520

924-1090

57299

934Q

35-77341

4361

55612

4362

671-4102
