111-611-701 VW Front Brake Hose (480mm) - 1949-1966 Beetle & Ghia

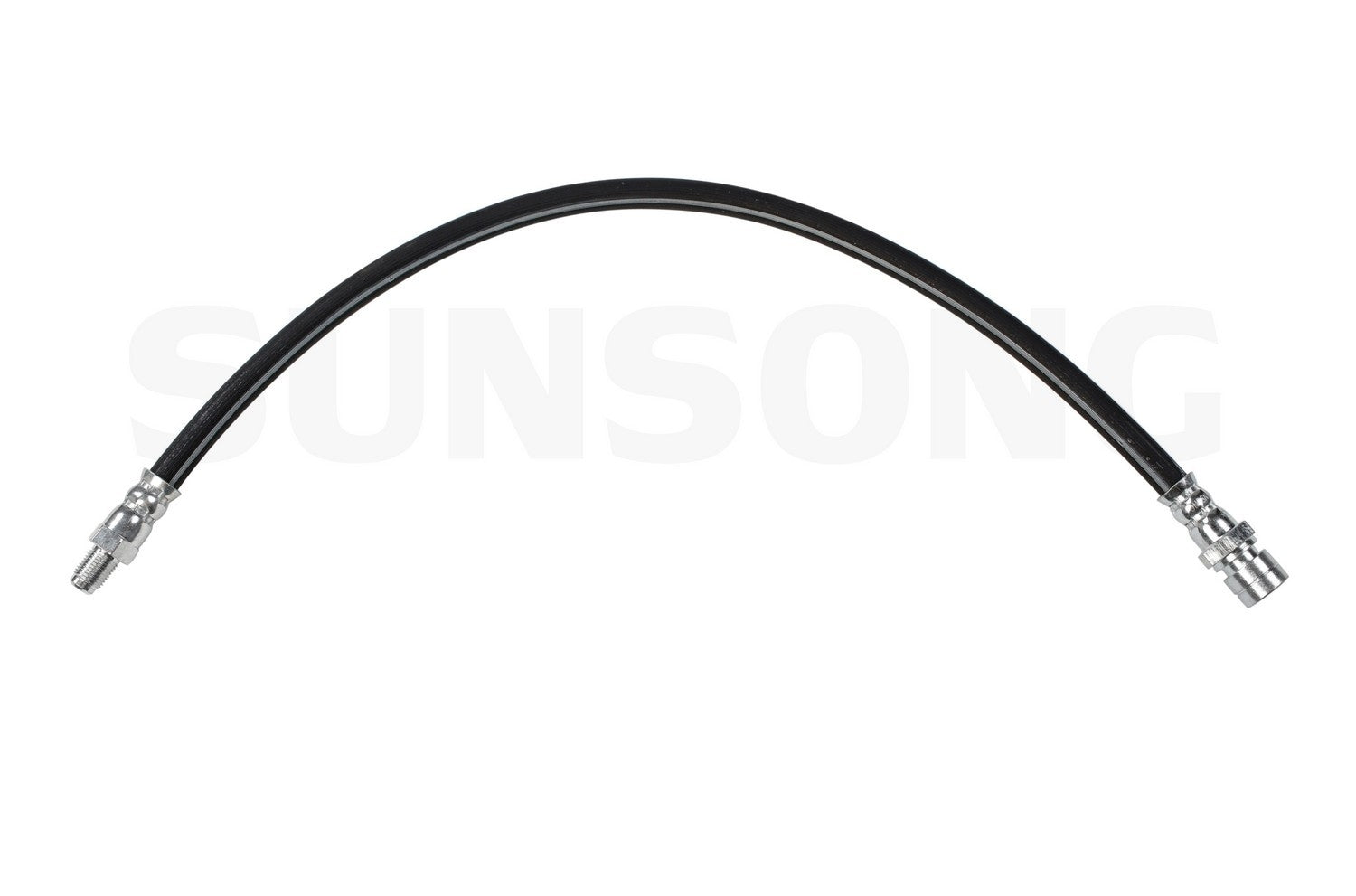

Front Brake Hose (480mm) – 113-611-701

The 113-611-701 is a critical component for maintaining the integrity of your early Volkswagen's braking system. Because the front wheels must turn and move with the suspension, these flexible rubber hoses are subjected to constant flexing. Replacing them every 10 years or during a major brake overhaul is highly recommended to prevent catastrophic failure or "spongy" pedal feel caused by aged, expanding rubber.

This hose is specifically designed for King & Link Pin and early Ball Joint front ends. Its Male/Female ends allow it to thread directly into the front wheel cylinder while receiving the hard metal line from the chassis.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966

Product Highlights & Features

• Nitrile Rubber Outer Cover: Resistant to oil, grease, and road grime, helping to prevent the environmental rot that often plagues original hoses.

• Male to Female Fittings: Standard M10 x 1.0 threading on both ends for a leak-free seal with original and aftermarket brake components.

• DOT Compliant: Meets or exceeds Department of Transportation standards for automotive hydraulic brake systems.

Technical Specifications

• Part Number: 113-611-701

• Length: 480mm

• Fittings: 1 Male End / 1 Female End

• Thread Size: M10 x 1.0

Installation & Maintenance Tips

• Avoid Twisting: When installing the hose, ensure it is not twisted or kinked. A twisted hose can rub against the tire or suspension components, leading to premature wear and failure.

• Brake Hose Clips: Always use a new Brake Hose Clip (113-611-715A) to secure the female end of the hose to the bracket on the chassis. If the hose is allowed to vibrate or move, it can fatigue the hard metal lines.
