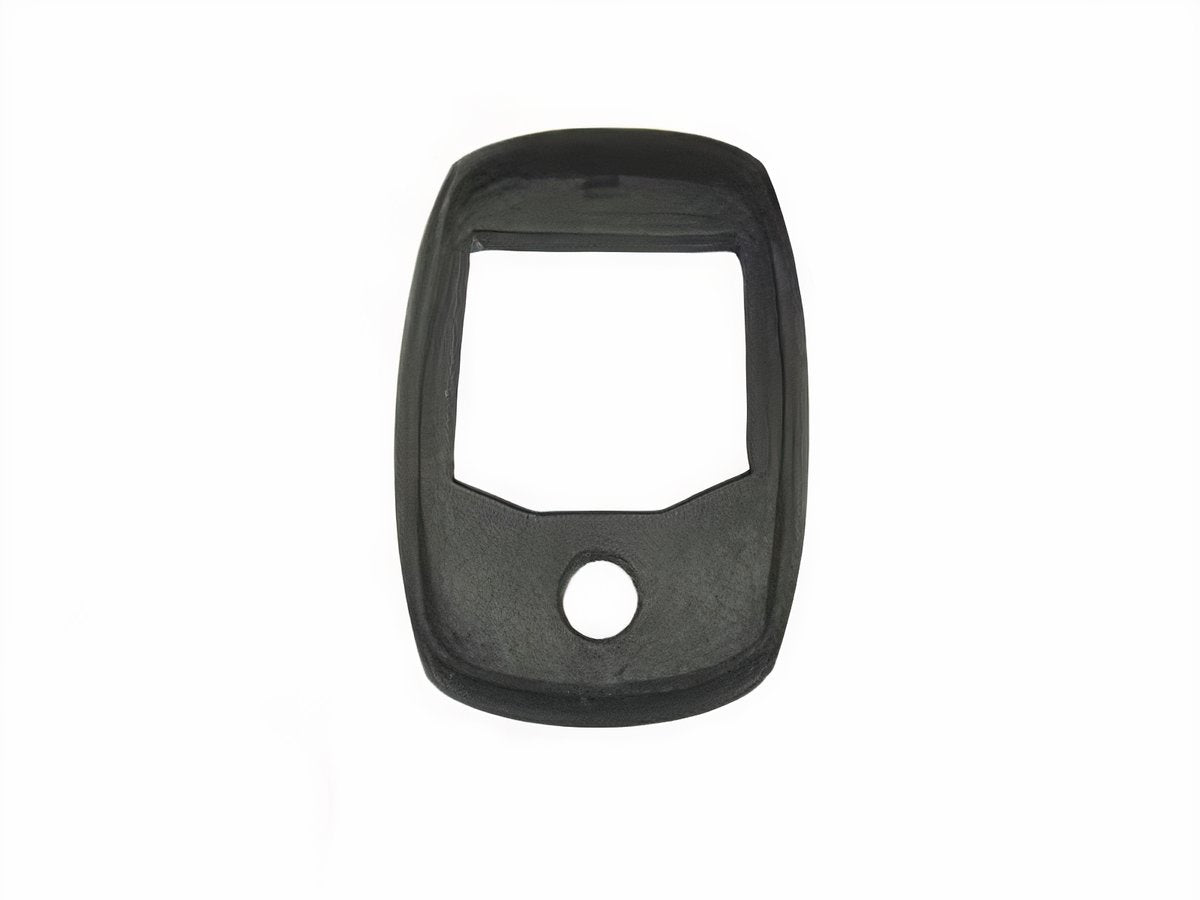

111-517BX VW Beetle Deck Lid Handle Grommet (1972-1979)

VW Deck Lid Handle Grommet – 111-517BX

The 111-517BX is a specialized rubber seal designed for the rear engine hood (deck lid) of late-model air-cooled Volkswagens. This grommet sits directly behind the deck lid handle, acting as a protective cushion between the metal handle base and the car's painted surface. Its primary purpose is to provide a watertight seal, preventing rain and wash water from seeping into the handle mounting holes, which can lead to hidden rust and corrosion inside the deck lid.

Over years of exposure to UV rays and weather, original rubber grommets become cracked, brittle, or flattened. A failed grommet not only looks unsightly but can also allow the handle to vibrate or "wiggle," potentially scratching your paint. The 111-517BX is a simple yet essential restoration component that ensures your rear handle remains tight and your engine compartment stays dry.

Detailed Vehicle Compatibility This grommet is designed for the specific handle style used on late-model Beetles:

VW Beetle (Standard):

• 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

Product Highlights & Features

• Paint Protection: Prevents metal-to-paint contact, eliminating the risk of scratching or chipping around the mounting area.

• Weather-Resistant Rubber: Manufactured from a durable EPDM rubber compound that resists cracking and hardening from sun exposure.

• Precision Molded: Designed to match the exact footprint of the 1972-1979 style deck lid handles for a clean, factory-correct appearance.

• Anti-Vibration: Provides a slight "crush" factor that keeps the handle assembly under tension, preventing annoying rattles.

Technical Specifications

• Part Number: 111-517BX

• Material: Black Rubber

• Location: Rear Deck Lid (Engine Hood)

• Application: Handle-to-Body Seal

Installation & Maintenance Tips

• Clean the Surface: Before installing the new grommet, thoroughly clean and wax the area behind the handle to provide an extra layer of protection for the paint.

• Check the Handle Bolts: When you have the handle off to replace the grommet, inspect the mounting bolts for rust. Applying a small amount of thread locker can help keep the handle from loosening over time.

• Avoid Over-Tightening: Tighten the handle enough to compress the rubber for a seal, but do not over-tighten to the point where the rubber "bulges" out excessively from the sides.

• UV Protection: To extend the life of the new rubber, you can occasionally apply a non-greasy rubber protectant to keep the grommet supple.
