Drop Spindle 5x205 & 5x130 Front Ball Joint Disc Brake Kit

Forged Drop Spindle Front Disc Brake Kit – Ball Joint, 5-Lug (Double Drilled: 5x205mm & 5x130mm)
Fits: 1966–1977 VW Type 1 & 1966 Karmann Ghia

Lower your front end by 2.5" and upgrade to disc brakes in one complete package. This EMPI kit features forged drop spindles and dual-drilled rotors (5x205mm and 5x130mm) for maximum wheel compatibility. Designed for ball joint front ends, it includes everything needed for installation—except wheel studs—and provides improved braking performance with a subtle 1/4" offset per side (total track increase of 5/8").

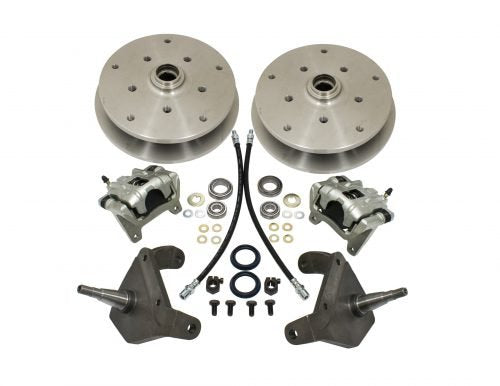

Kit Includes:

• Dual-drilled brake rotors:
  • 5x205mm (12x1.5mm threads)
  • 5x130mm (14x1.5mm threads)
• 2.5" Forged drop spindles
• Brake calipers with pads
• OE-style brake hoses
• Wheel bearings & grease seals
• Dust caps
• Mounting hardware & instructions

Important Notes:

• Requires 1969 & later tie rod ends
• Must use with minimum 15” wheels
• Wheel studs not included

Replacement Brake Pads:

• Standard: Part #22-2958-0
• Premium: Part #22-2995-0
