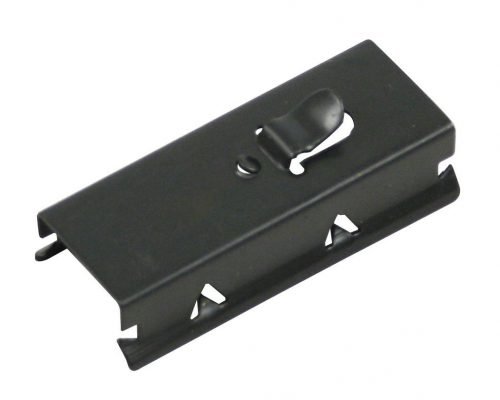

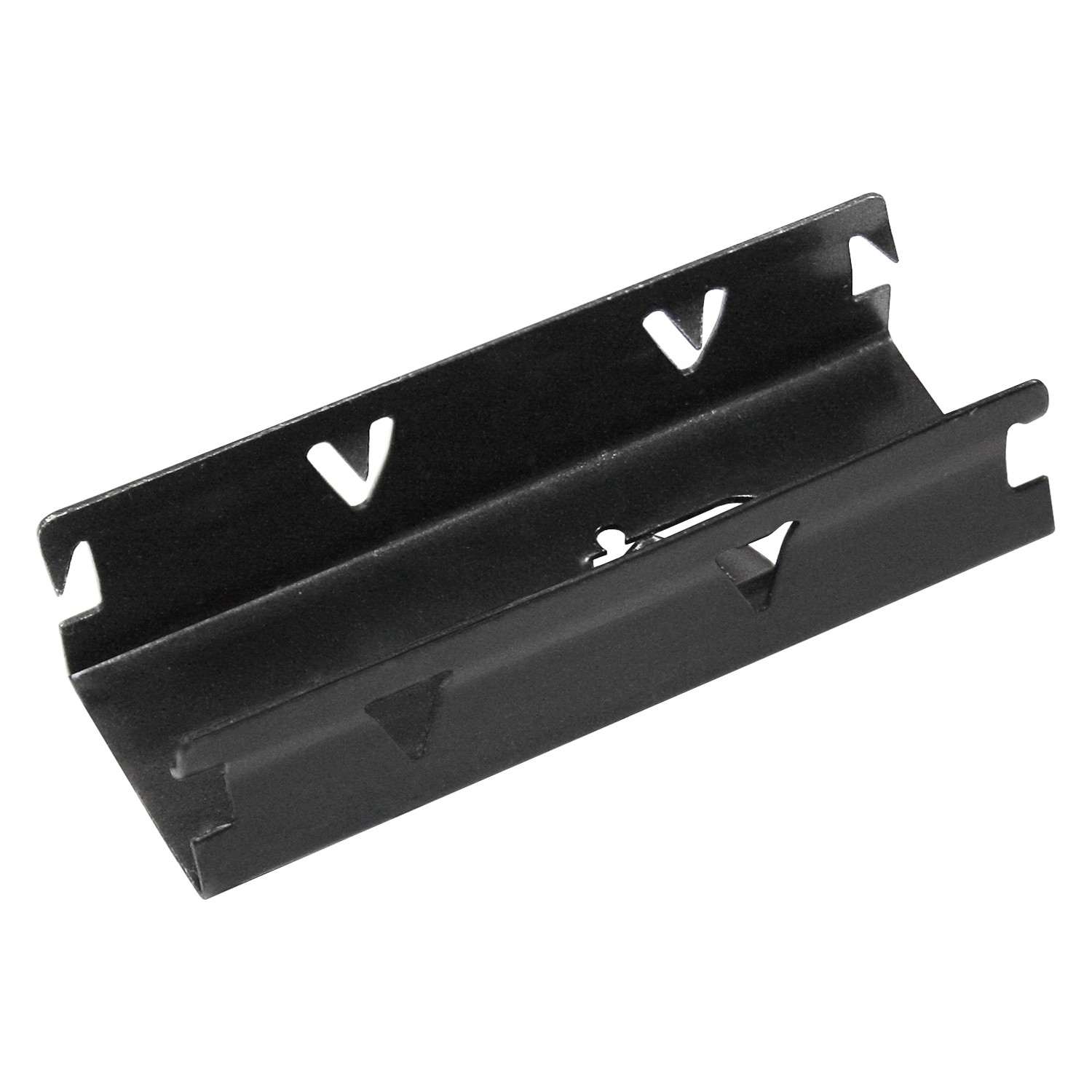

111-837-361 VW Window Felt Channel Mounting Clip - All Models

Window Felt Channel Clip – 111-837-361

The 111-837-361 is the "silent partner" in a smooth-operating window system. If your windows are difficult to roll up or if you hear a metallic "clunk" inside the door, it is often because these clips have failed, allowing the felt guide to move out of alignment. These clips are designed to be hidden behind the felt, providing a clean factory look while ensuring the glass stays on its intended path.

These are sold individually, but most doors require between 5 to 7 clips per window to properly support the felt channel around the curves and straightaways of the door frame.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979


VW Bus (Type 2):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Type 3:

• 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973

Product Highlights & Features

• Corrosion Resistant: Often finished with a zinc or black oxide coating to survive the high-moisture environment inside the door frame.

• Easy Snap-In Fit: Designed to be pressed into the door frame channel by hand or with a small flat-head screwdriver. Line up the retaining "Tang" with the holes in your door to be sure of secure installation.

• Low Profile: Ensures the clip does not interfere with the window glass as it slides through the felt.

Technical Specifications

• Part Number: 111-837-361

• Material: Spring Steel

• Quantity: Sold Individually

• Function: Retains Window Guide Felt

Installation & Maintenance Tips

• Check the Track: Before installing new clips, ensure the metal track in the door is free of old rubber and rust. A clean track allows the clip to seat fully, which prevents the felt from sitting too high.

• Lubricate the Felt: After the clips and felt are installed, a light spray of dry silicone lubricant inside the felt channel will help the glass slide smoothly and reduce the strain on your window regulator.
