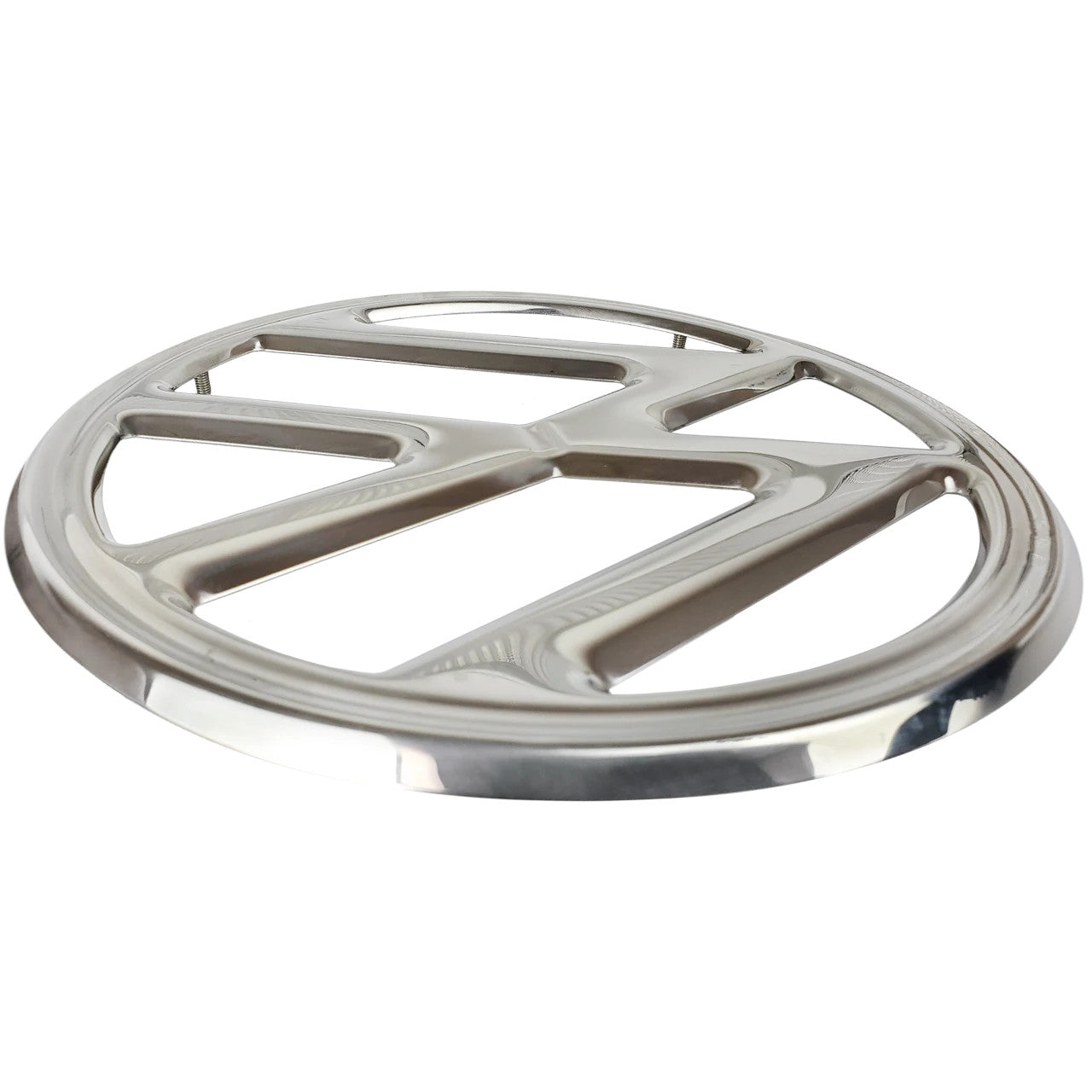

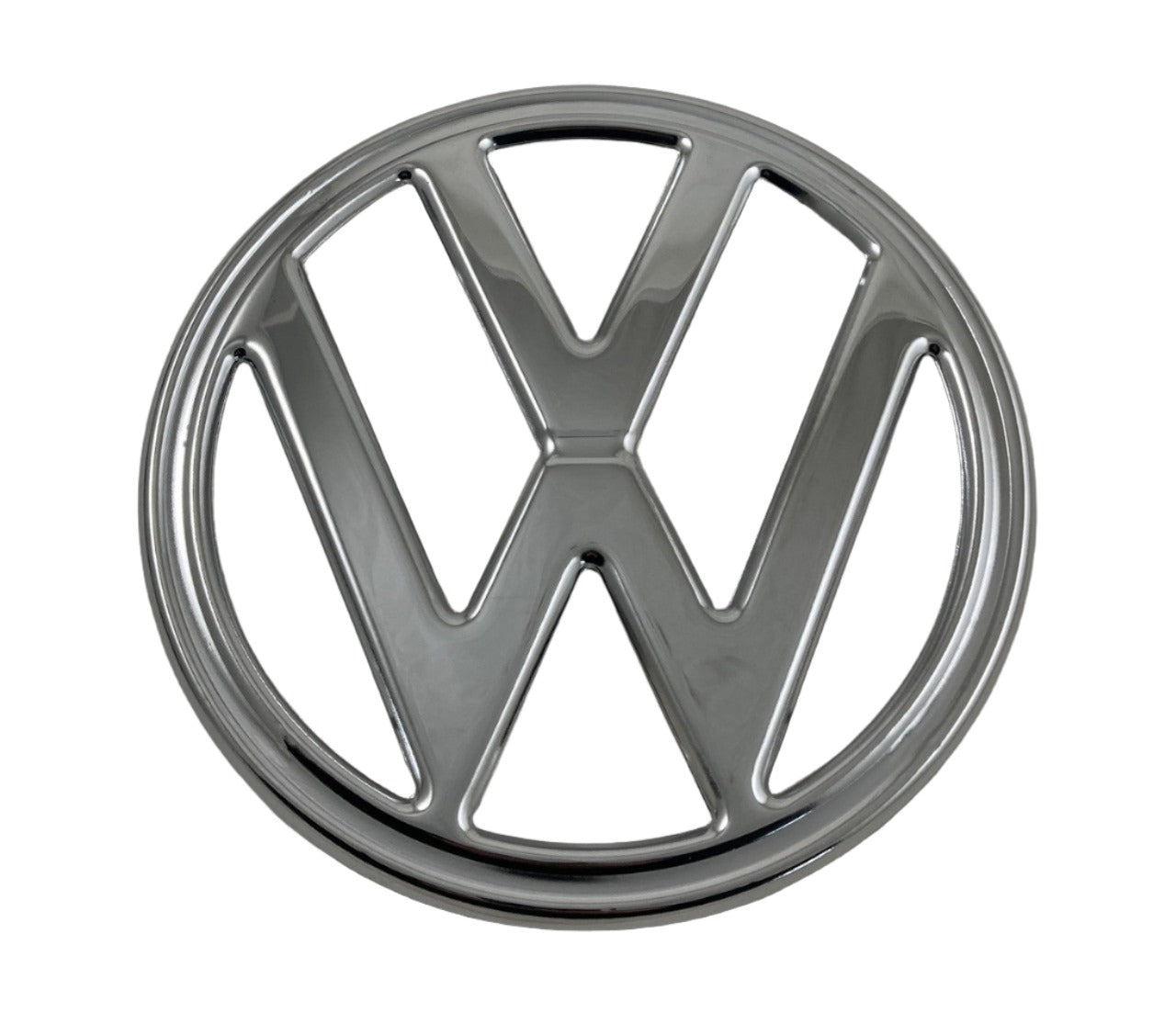

211-853-601B Front VW Nose Emblem (9-3/4") - VW Bus (1968-1972)

VW Bus Front Nose Emblem – 211-853-601B

Restore the iconic face of your Volkswagen with this Front Nose Emblem. Specifically sized for the "Early Bay" Window Bus, this emblem measures approximately 9-3/4 inches (250mm) in diameter. It is the signature finishing touch for the front nose panel, sitting prominently between the headlights. Whether you are performing a concours restoration or just refreshing a daily driver, this emblem provides the authentic factory look that defines the classic Type 2 silhouette.

Originally available in both white (for standard utility models) and chrome (for Deluxe and passenger models), this reproduction is designed to mount using the factory-style four-pin configuration. Because these emblems are positioned at the very front of the vehicle, the original units are often pitted by road debris, dented, or lost to "souvenir hunters." Replacing a weathered emblem is one of the most impactful ways to sharpen the exterior appearance of your Bus.

Detailed Vehicle Compatibility

This emblem is designed for the Early Bay Window Bus continuously across the following years:

VW Type 2 Bus (Transporter, Kombi, Campmobile, Deluxe)

• 1968, 1969, 1970, 1971, 1972

(Note: In mid-1972, VW transitioned to a smaller 7-inch emblem. Please verify your nose panel hole spacing if your Bus is a late 1972 model.)

Product Highlights & Features

• Factory Correct Diameter: Measures 9-3/4" (250mm) to fit the large-format nose indentation of early Type 2 models.

• Multiple Finishes: Available in classic Aluminum or Bright Chrome to match your specific trim level.

• Four-Pin Mounting: Features the original square-pattern mounting pins for a secure, stable fit.

• Durable Construction: Built to withstand high-speed wind resistance and varying weather conditions without fading or warping.

Technical Specifications

• Part Number: 211-853-601B

• Diameter: 9-3/4 inches (250mm)

• Mounting Style: 4-Pin / Stud

• Placement: Front Nose Panel (Center)

Installation & Maintenance Tips

• Mounting Clips: This emblem requires four plastic mounting clips/grommets (Part # 211-853-615) for installation. These clips are inserted into the holes in the nose panel first; the emblem pins then press into the clips to lock it in place.

• Stud Access: While some reproduction emblems come with threaded studs and nuts, it is almost impossible to reach the back of the nose panel to tighten nuts. Most installers prefer using the original-style "push-in" grommets for a secure, tool-free installation.

• Anti-Theft Tip: To prevent the emblem from being easily pulled off by hand, some owners apply a small bead of clear silicone adhesive to the pins before pressing them into the mounting grommets.

• Cleaning: For chrome emblems, use a non-abrasive chrome polish and a soft microfiber towel. For white-painted emblems, standard car wax will help protect the finish from UV fading and road grime.
