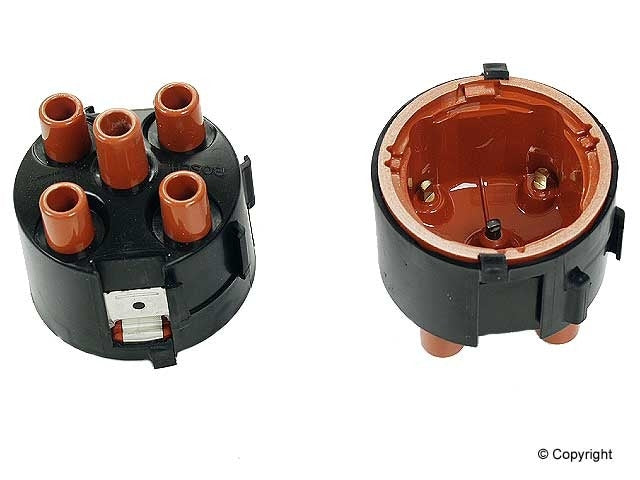

Bosch 03214 Distributor Cap (03-214) - VW Golf, Jetta, & Scirocco

Bosch Distributor Cap – 03214 (03-214)

The Bosch 03214 (03-214) is a high-performance ignition distributor cap designed primarily for water-cooled Volkswagen and Audi engines. This cap is a critical part of the secondary ignition system, ensuring that the spark generated by the coil reaches the correct cylinder at the precise moment. Unlike earlier caps, the 03214 is engineered to handle the higher voltage outputs of electronic ignition systems.

This cap features high-quality brass or copper inserts to maintain excellent conductivity and reduce internal resistance. The housing is made from premium reinforced materials to prevent "carbon tracking"—a common issue where electricity travels across the surface of the cap rather than through the terminals—which leads to engine misfires and poor performance.

Detailed Vehicle Compatibility

Audi 4000:

• 1985, 1986, 1987

Audi 80:

• 1988, 1989, 1990

Audi 90:

• 1988

VW Cabriolet:

• 1987, 1988, 1989, 1990

VW Golf:

• 1987, 1988, 1989, 1990, 1991

VW Jetta:

• 1987, 1988, 1989, 1990

VW Passat:

• 1990

VW Scirocco:

• 1986, 1987, 1988

Product Highlights & Features

• Precision Terminals: Uses high-conductivity metal inserts to ensure a consistent, high-energy spark to the spark plugs.

• Superior Insulation: Engineered with a specialty plastic housing that prevents electrical leakage and withstands high-temperature engine bays.

• Electronic Ignition Ready: Specifically designed to manage the increased dwell and voltage demands of the Bosch TSZ and Digifant ignition systems.

• Direct OE Replacement: Manufactured by Bosch to meet original Volkswagen specifications for fit, form, and function.

Technical Specifications

• Part Number: 03214 / 03-214

• VW Interchange: 027-905-207

• Terminal Type: Male (Pin-style)

• Mounting Type: Spring Clip-on

Installation & Maintenance Tips

• Pin Style Check: This cap typically uses "pin-style" terminals. Ensure your spark plug wires are compatible with this connection type before installation.

• Rotor Replacement: For best results, always pair a new distributor cap with a new ignition rotor. A worn rotor can quickly damage the terminals of a brand-new cap.

• Internal Dust Shield: When the cap is off, ensure the plastic dust shield (if equipped) is correctly seated over the distributor base to protect the Hall Effect sensor.
