Bosch Ignition Condenser – 02-069

Restore the electrical balance of your vintage ignition system with the Bosch 02-069 Ignition Condenser. This high-quality external capacitor is designed specifically for late 1960s Volkswagens. Its primary role is to prevent electrical arcing across the ignition points as they open, which preserves the contact surfaces and ensures the ignition coil can collapse its magnetic field efficiently. This results in a hotter, more consistent spark and a much longer service life for your points.

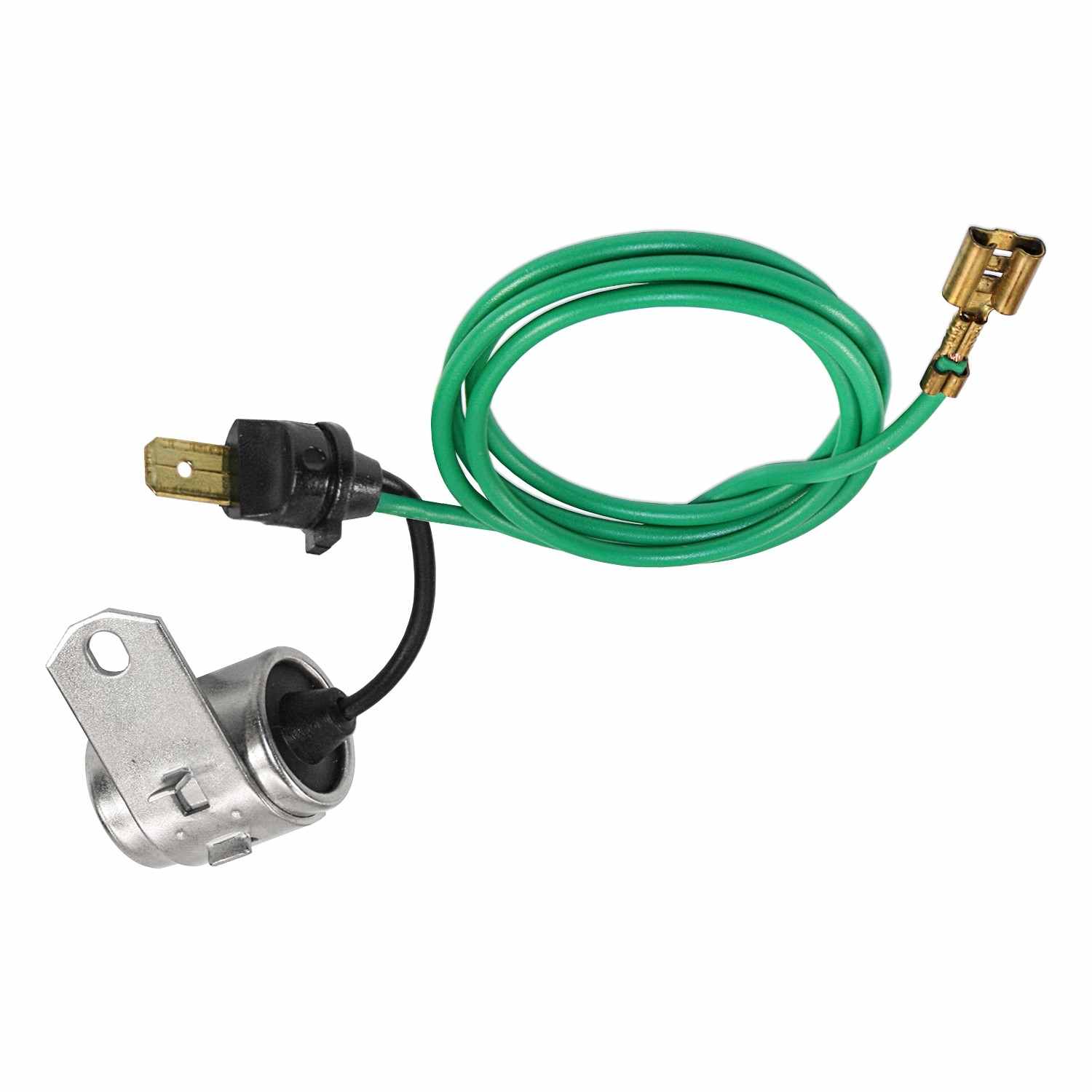

The 02-069 features the classic Bosch side-mount design, securing directly to the distributor body. It is equipped with a green wire lead that is approximately 17.5" to 18" long, providing ample reach to the negative terminal of the ignition coil. Replacing a leaking or weak condenser is essential maintenance to prevent "point burn," hard starting, and high-RPM misfires.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1965, 1966, 1967, 1968, 1969, 1970

VW Bus (Type 2):

• 1965, 1966, 1967, 1968, 1969, 1970

VW Karmann Ghia:

• 1965, 1966, 1967, 1968, 1969, 1970

VW Type 3:

• 1965, 1966, 1967, 1968, 1969, 1970

Product Highlights & Features

• Genuine Bosch Engineering: Built to the original tolerances required for vintage air-cooled distributors, ensuring the correct capacitance rating to prevent point pitting.

• Long Lead Design: Features a long wire lead (~17.5") specifically designed for the routing requirements of 1965-1970 engine bays.

• Point Preservation: Effectively absorbs the primary circuit's inductive kick, stopping the "transfer of metal" that causes peaks and valleys on your ignition points.

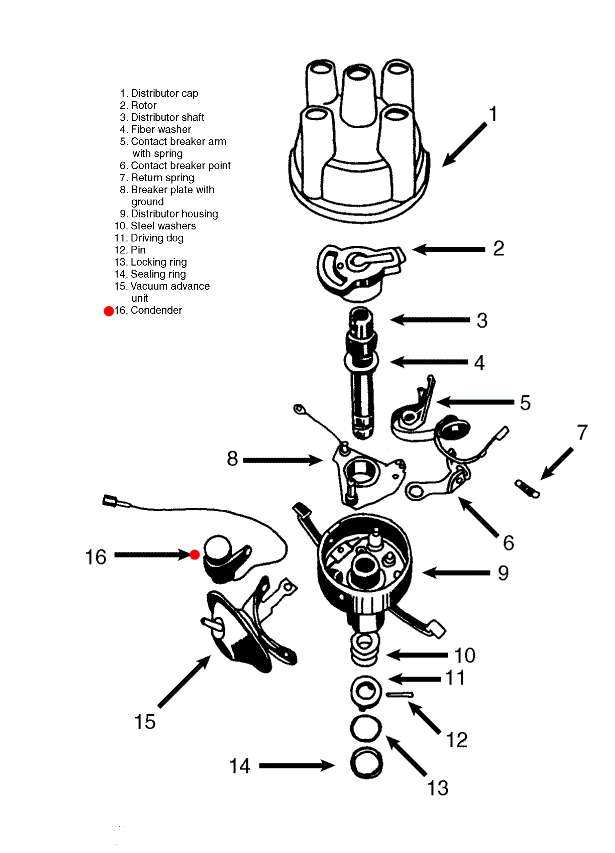

• Direct Side-Mount: Includes a built-in mounting bracket for a secure, vibration-resistant attachment to the exterior of the distributor housing.

Technical Specifications

• Part Number: 02-069 (Bosch 02069)

• Lead Length: ~17.5 inches

• Mounting: Side-distributor bracket

• Interchange Number: 311-905-295A

• Application: 12-Volt Bosch Distributors

Installation & Maintenance Tips

• Verify Your Distributor: These fitments are based on the original equipment your VW had from the factory. Since many distributors (like the common "009" replacement) have been swapped over the decades, always verify your distributor's 10-digit Bosch number before ordering.

• Clean the Contact: The condenser grounds through its metal body and the mounting screw. Ensure the contact point on the distributor body is clean and free of grease or heavy corrosion to maintain a strong electrical circuit.

• The "Tune-Up" Set: For the best results, always install this condenser alongside a fresh set of Ignition Points. Using a new condenser with old, pitted points will not restore full ignition performance.

• Route with Care: Ensure the long wire lead is routed away from moving parts like the fan belt or throttle linkage to prevent electrical shorts.
