Bosch 02-054 Ignition Condenser - VW Beetle, Bus, Ghia & Thing

Bosch Ignition Condenser – 02-054

Keep your classic Volkswagen's ignition system firing reliably with the Bosch 02-054 Ignition Condenser. This authentic Bosch component is designed to work in perfect harmony with your mechanical points, acting as a buffer to prevent electrical arcing across the point contacts. By absorbing the "kickback" from the coil, the condenser significantly extends the life of your points and ensures a crisp, powerful spark is delivered to the spark plugs.

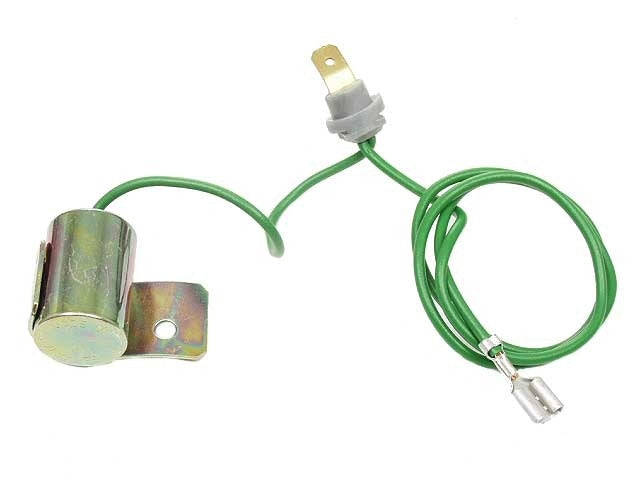

The 02-054 is an external-mount condenser that installs securely onto the side of the distributor body. It features a specific wiring configuration where the lead connects to both the negative (- or 1) terminal of the ignition coil and the points inside the distributor. Because the condenser is a critical electrical capacitor, a failing unit will lead to rapid point pitting, hard starting, and intermittent engine cut-outs.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1970, 1971, 1972, 1973

VW Super Beetle:

• 1971, 1972, 1973

VW Bus (Type 2):

• 1972, 1973

VW Karmann Ghia:

• 1970, 1971, 1972, 1973

VW Type 3:

• 1972, 1973

VW Thing:

• 1973

Product Highlights & Features

• OEM Bosch Quality: Manufactured to original factory specifications to ensure the correct capacitance and heat resistance for air-cooled engines.

• Integrated Wiring: Includes a lead wire approximately 20" in length, featuring a points connection located 3" from the condenser body for easy routing.

• Point Protection: Prevents "mountain and valley" pitting on contact points, maintaining accurate ignition timing for longer intervals.

• Easy Installation: Designed to bolt directly to the factory mounting bracket on the side of the distributor.

Technical Specifications

• Part Number: 02-054 (Bosch 02054)

• Lead Length: ~20 inches

• Points Tap: ~3 inches from condenser body

• Mounting Style: External Side-Mount

• Application: 12-Volt Ignition Systems

Installation & Maintenance Tips

• Verify Your Distributor: These fitments apply to the original distributors VW equipped from the factory. Since many distributors have been swapped over the last 40+ years, please verify your distributor model number before ordering.

• Route with Care: Ensure the 20" wire is routed away from the fan belt and sharp metal edges. Use small zip ties if necessary to keep the wire clear of the throttle linkage.

• The "Tune-Up Rule": It is best practice to replace your condenser every time you install new points. A weak condenser is the #1 cause of premature point failure.

02054

02 054

1237330220-HFV

1 237 330 220-HFV
