Oil Change Gaskets 1200cc (40hp) - 1600cc Engine

VW Oil Change Gasket Kit – Engine Sump Plate Reseal (113-198-031)

Maintain a clean, leak-free engine with this VW oil change gasket kit, designed specifically for sealing the sump plate on classic air-cooled Volkswagen engines. This complete set includes all the gaskets and copper washers needed to properly reseal your oil system during routine maintenance.

Why Choose This Kit?

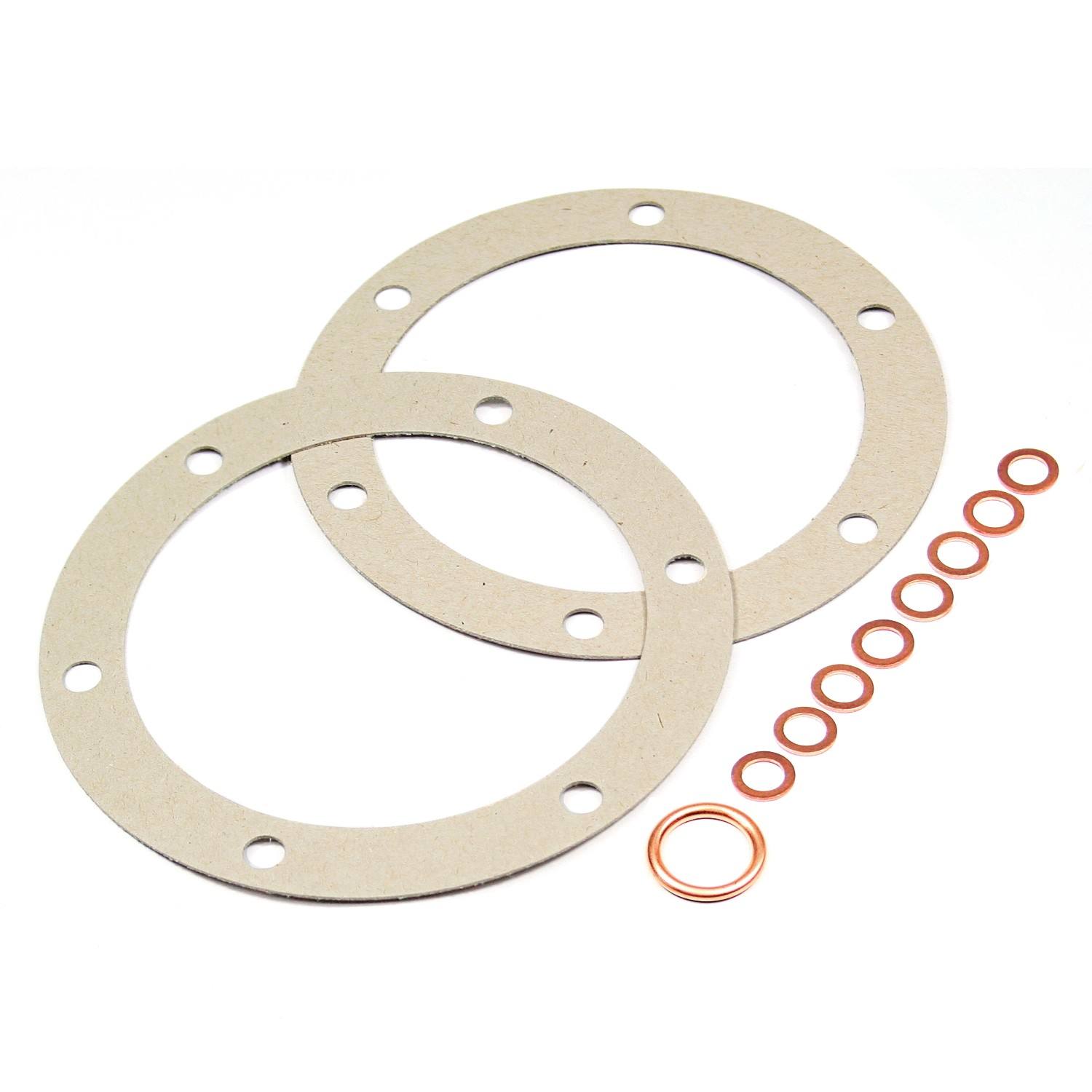

• Complete Kit – Includes sump plate gaskets, small copper washers for the acorn nuts, and a large copper washer for the drain plug.

• Leak Prevention – Keeps your sump plate sealed tight to prevent oil drips and mess.

• Easy Maintenance – Simplifies oil changes by providing everything you need in one kit.

Vehicle Fitment

Compatible with all 1200cc (40HP) through 1600cc VW engines, originally installed in:

• 1961–1977 VW Beetle (Standard)

• 1971–1979 VW Super Beetle

• 1961–1974 VW Karmann Ghia

• 1961–1971 VW Type 2 Bus (Transporter, Single Cab, Double Cab)

• 1961–1973 VW Type 3

• 1973–1974 VW Thing

Installation Details

• Paper gaskets install on either side of the oil screen: one between the screen and engine case, and the other between the screen and sump plate.

• Small copper washers go under the sump plate acorn nuts.

• Large copper washer fits between the sump plate and the center drain plug.

This VW oil change gasket kit (113-198-031) is the trusted choice for those who want dependable sealing and a hassle-free oil change process.

113198031
