025-121-438 VW Vanagon Double T-Piece (H-Pipe) - 1.9L Wasserboxer

Coolant Double T-Piece (H-Pipe) – 025-121-438

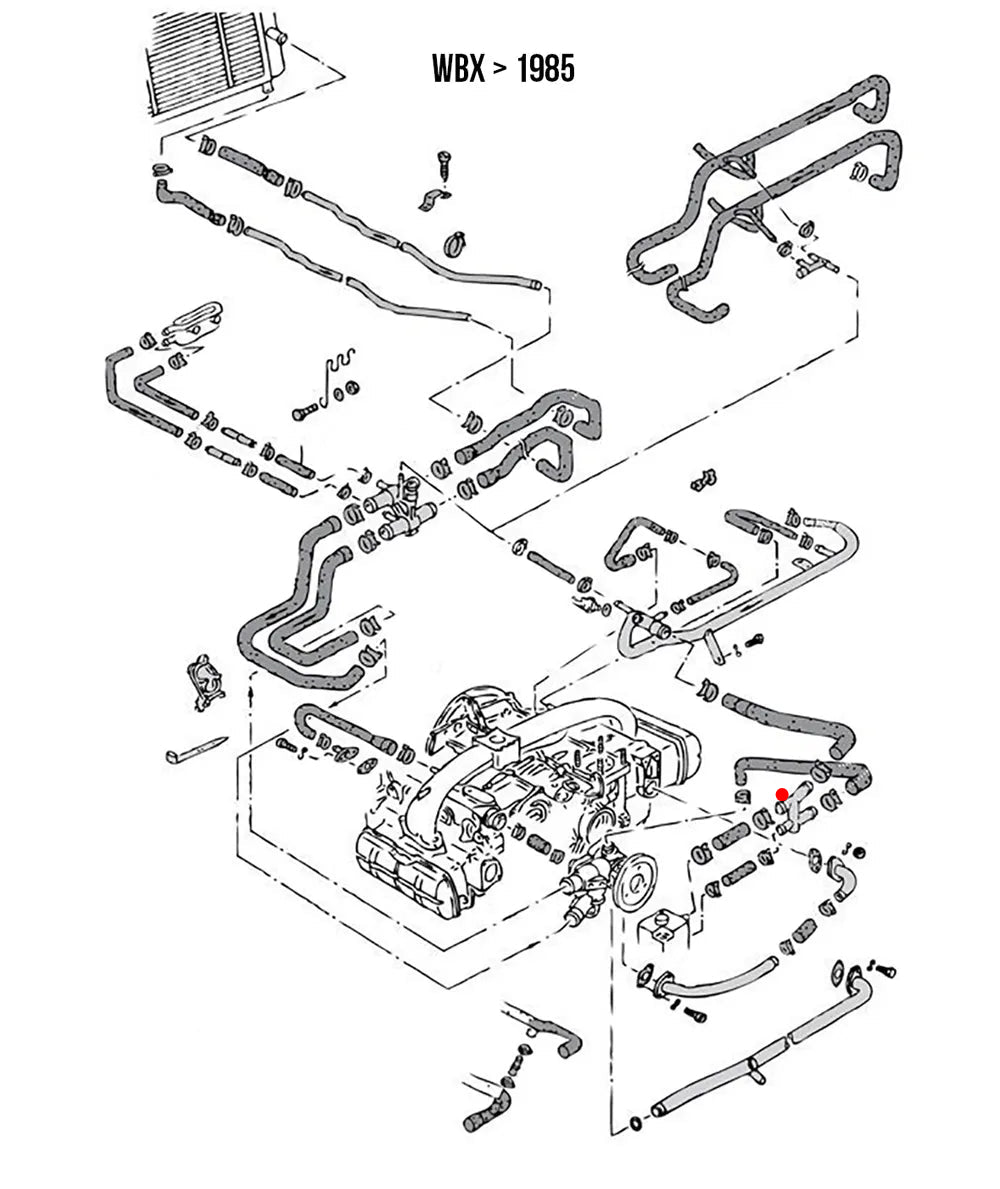

The 025-121-438 is a specialized coolant junction, often referred to as a "Double T-Piece" or "H-Pipe," designed specifically for the Volkswagen Vanagon 1.9L Wasserboxer. This critical plastic connector serves as a primary distribution point for coolant in the engine bay, branching the flow between the main radiator lines, the cylinder heads, and the heater circuit.

In the rear-engine Vanagon, these plastic cooling junctions are subjected to extreme thermal cycling. Over time, the original material can become brittle and develop hairline cracks, particularly at the hose barbs. Because this part sits in a high-pressure section of the cooling system, a failure here can result in rapid coolant loss. Replacing a yellowed or "chalky" original part with a new 025-121-438 is essential for maintaining the pressurized integrity of your 1.9L engine.

Detailed Vehicle Compatibility

Fits 1.9L Wasserboxer engines from 1983 onwards.

VW Vanagon (1.9L):

• 1983, 1984, 1985

Engine Fitment Codes:

• DF: 1.9L

• DG: 1.9L

• DH: 1.9L

• EY: 1.9L

• GW: 1.9L

• SP: 1.9L

Product Highlights & Features

• Reinforced Composite Construction: Manufactured from high-temperature plastic designed to resist the warping and brittleness common in older cooling components.

• Complex H Configuration: Replicates the exact factory dimensions and angles required to connect multiple cooling hoses in a compact engine bay.

• Leak-Free Barb Design: Precision-molded hose barbs provide a secure mating surface for rubber hoses, ensuring a tight seal under standard operating pressures.

Technical Specifications

• Part Number: 025-121-438

• Component Type: Double T-Piece / H-Connector

• Material: High-Temperature Reinforced Plastic

• Engine Application: 1.9L Wasserboxer Only

Installation & Maintenance Tips

• Inspect Connected Hoses: When replacing this junction, check the ends of the four hoses that attach to it. If the old plastic junction has crumbled inside the hose, the debris must be removed to prevent clogs in the radiator.

• Clamp Torque: Be careful not to over-tighten hose clamps on these plastic barbs. Excessive pressure from a worm-gear clamp can crush the plastic tube, especially when it is hot.

• Bleeding Air: Since the H-pipe is located in the upper engine bay area, air pockets often gather here during a coolant refill. Ensure you follow the factory bleeding procedure at the radiator and the engine-side bleeder valve.

• Preventative Replacement: If your current H-piece looks discolored or has a white residue around the seams, replace it immediately to avoid a roadside failure.
