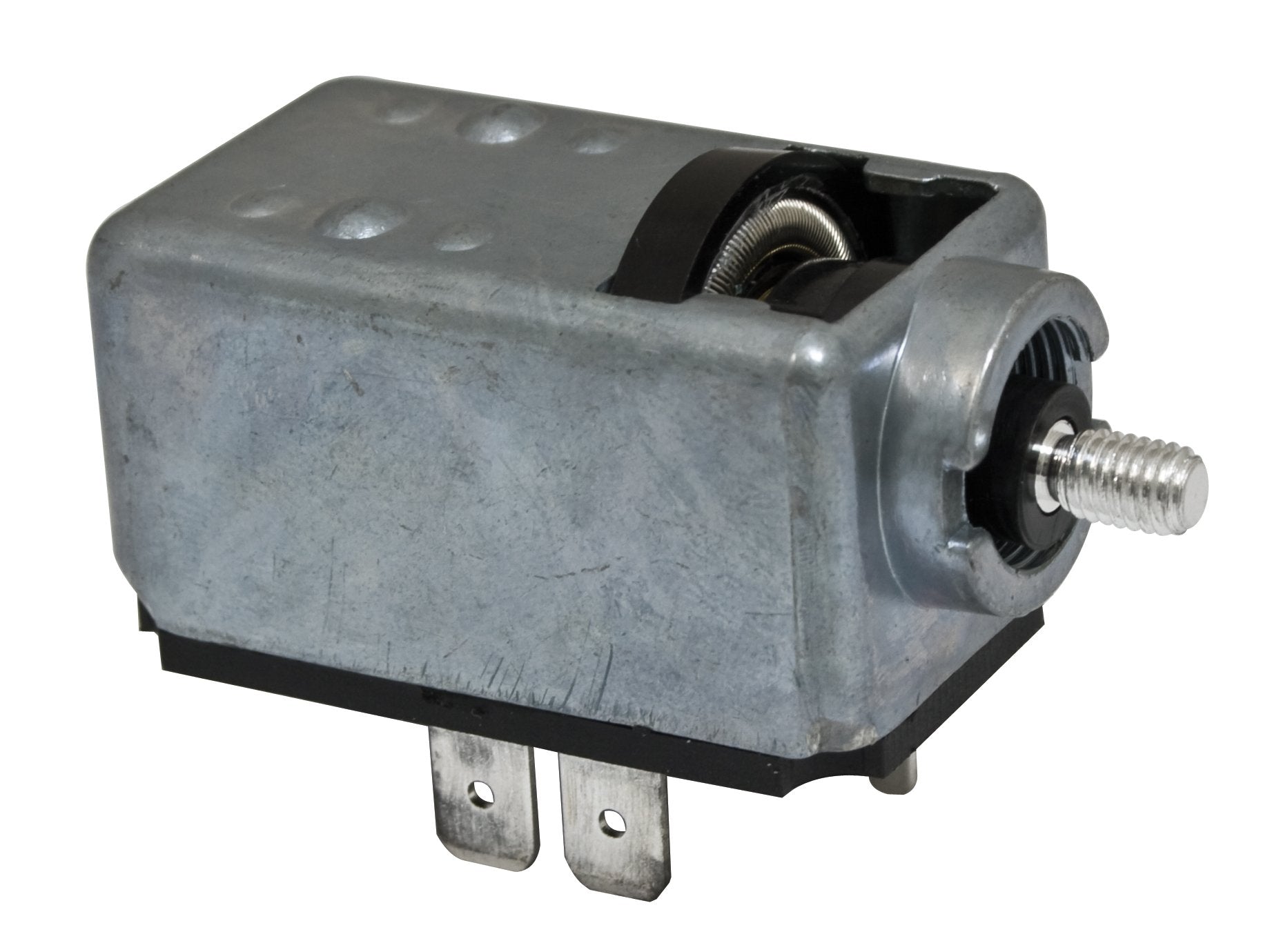

T1 65-67, Bus 71-79, T3 63-67 Headlight Switch

WIRING INFORMATION:
TERMINAL 30 -- BATTERY POWER FROM FUSE BOX (IF THERE IS A SECOND 30, IT IS NOT USED)
TERMINAL X -- POWER FROM IGNITION SWITCH
TERMINAL 56 -- POWER TO THE HEADLIGHT RELAY
TERMINAL 58 -- POWER TO PARKING AND TAIL LIGHTS
TERMINAL 58b -- POWER TO DASH LIGHTS

FACTORY WIRING COLOR:
TERMINAL 30 -- RED
TERMINAL X -- RED WITH BLACK STRIPE AT SWITCH
TERMINAL 56 -- WHITE OR WHITE WITH BLACK STRIPE
TERMINAL 58 -- GREY
TERMINAL 58b -- WHITE WITH RED STRIPE

98-9980-B

211941531E
