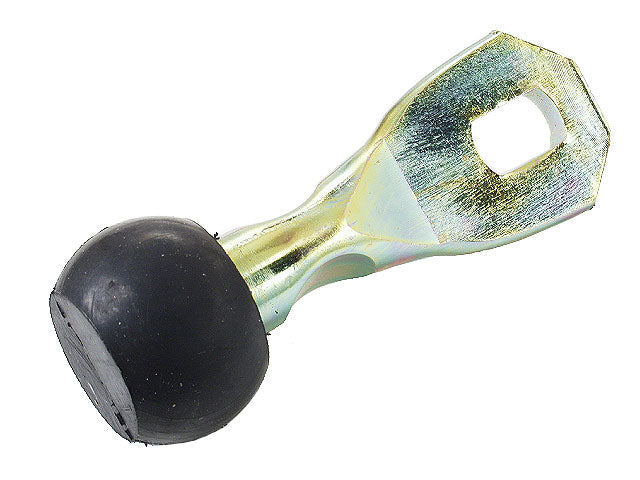

171-711-163E VW Rabbit & Scirocco 5-Speed Shift Relay Lever - (1975-1993)

VW MK1 5-Speed Shift Relay Lever – 171-711-163E

Regain control over your transmission with this authentic replacement Relay Shaft Lever. Specifically designed for 5-speed manual transmissions, this lever is the "finger" that acts as the primary pivot point for the selector rods. Unlike 4-speed variants, the 171-711-163E features the correct geometry and offset required to reach the 5th gear gate accurately.

Common symptoms of a failing or bent relay lever include difficulty engaging 5th or Reverse, or a shifter that feels "mushy" even after replacing bushings. This lever is constructed from heavy-duty plated steel to resist corrosion and bending under the stress of spirited driving. It comes with the correct splined mounting hole to ensure a slip-free connection to your shift shaft.

Detailed Vehicle Compatibility This lever is specifically for 5-speed manual transmission models:

VW Rabbit / Golf MK1:

• 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984

VW Cabriolet:

• 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

VW Jetta MK1:

• 1980, 1981, 1982, 1983, 1984

VW Scirocco (Type 53/53B):

• 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988

VW Rabbit Pickup (Caddy):

• 1979, 1980, 1981, 1982, 1983, 1984

Product Highlights & Features 5-Speed Specific Geometry: Engineered with the exact throw lengths required for the 5-speed shift gate pattern.

Heavy-Duty Steel: Plated finish prevents rust and ensures the splines remain sharp for a tight grip on the selector shaft.

Direct OE Replacement: Manufactured to meet factory 171-711-163E specifications for a bolt-on installation.

Restores Gate Feel: Eliminates the slop caused by worn pivot holes or bent original levers.

Technical Specifications Part Number: 171-711-163E

Application: Transmission Selector Linkage (5-Speed Only)

Material: Zinc-Plated Steel

Mounting Type: Splined Hub

Installation & Maintenance Tips Index the Splines: Before removing your old lever, mark the position of the splines on the shaft. This ensures the new 171-711-163E is installed at the correct angle, saving you significant time during the shifter alignment process.

Inspect the Ball: This lever typically interacts with a plastic-capped "relay ball." Check that ball for flat spots or cracks while the lever is removed; if the ball is damaged, even a new lever won't fix all your shifting issues.

Tighten the Pinch Bolt: Ensure the pinch bolt on the splined hub is tightened to factory torque specs. If this bolt is loose, the lever can strip the splines on the shaft, which often requires a transmission tear-down to repair.

Grease the Pivot: Apply a high-quality synthetic grease to the contact point where the lever meets the selector rods to ensure smooth, friction-free movement.
