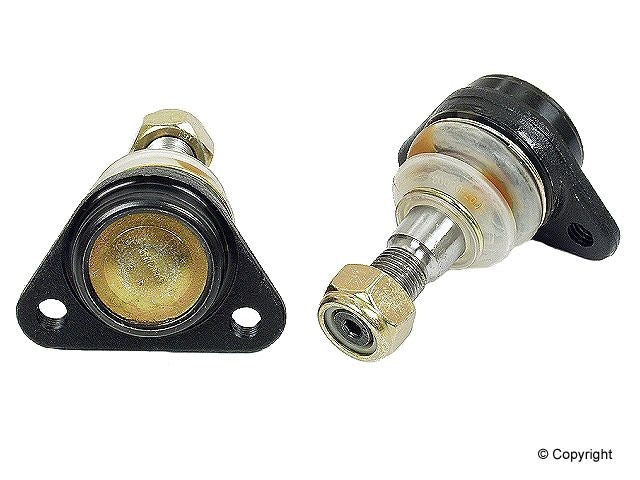

VW Vanagon Upper Ball Joint 251-407-361 - 1980-1991 2WD & Syncro

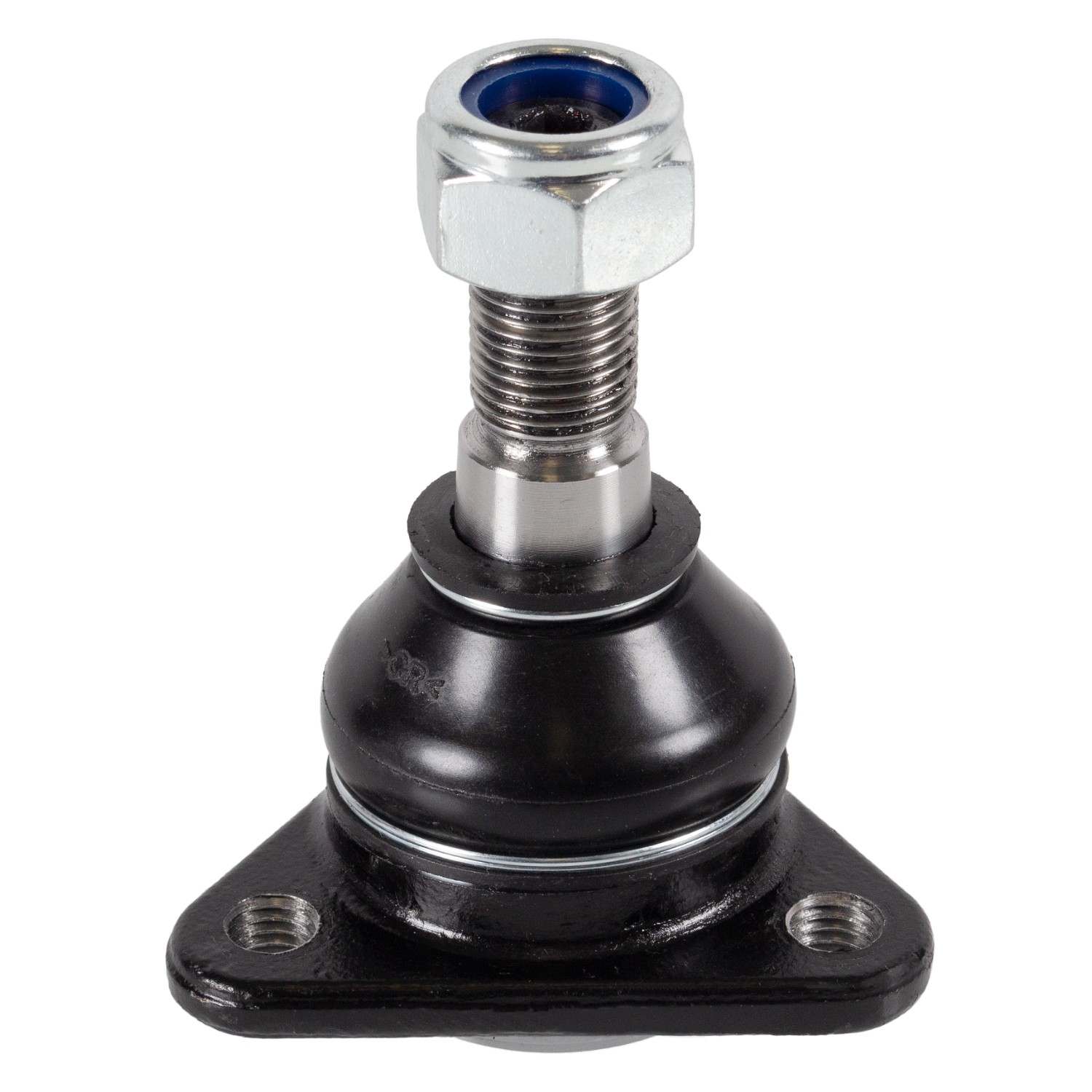

Vanagon Front Upper Ball Joint – 251-407-361

The 251-407-361 is a vital pivot point in the Vanagon's front suspension assembly. It connects the upper control arm to the steering spindle, allowing the wheel to move vertically while maintaining the correct camber angle. Because the Vanagon carries a significant amount of weight over the front wheels, these joints are subject to high stress and should be inspected for play or "clunking" sounds during every service.

Over time, the protective rubber boots on original joints can crack, leading to the loss of lubricant and the entry of road grit. Replacing a worn upper ball joint is one of the most effective ways to eliminate steering wander and prevent uneven tire wear.

Detailed Vehicle Compatibility

VW Vanagon (All Models):

• 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Product Highlights & Features

• Eliminates Suspension Play: Restores the tight, responsive steering feel your Vanagon had from the factory.

• Nitrile Rubber Boot: Equipped with a high-grade, chemical-resistant rubber boot to seal out water and debris.

• Forged Steel Housing: Built with a high-strength housing to withstand the rigors of both highway driving and off-road use in Syncro models.

Technical Specifications

• Part Number: 251-407-361

• Position: Front Suspension, Upper

• Quantity Required: 2 per vehicle (1 per side)

• Design: Bolt-on housing with tapered pin

Installation & Maintenance Tips

• Hardware: It is highly recommended to use new mounting hardware (bolts and nuts) when replacing the joint to ensure the assembly remains secure.

• Torque Settings: Tighten the upper ball joint to spindle nut to 80 ft-lbs and the mounting bolts to 44 ft-lbs.

• Alignment: While the upper ball joint is a bolt-on part, any work on the front suspension can slightly alter your alignment. It is best practice to have the camber and toe checked after installation.

02106

251407361

1016202

V10-7188

V107188

TC293
