VW In-Tank Fuel Filter Screen – 111-209-147A

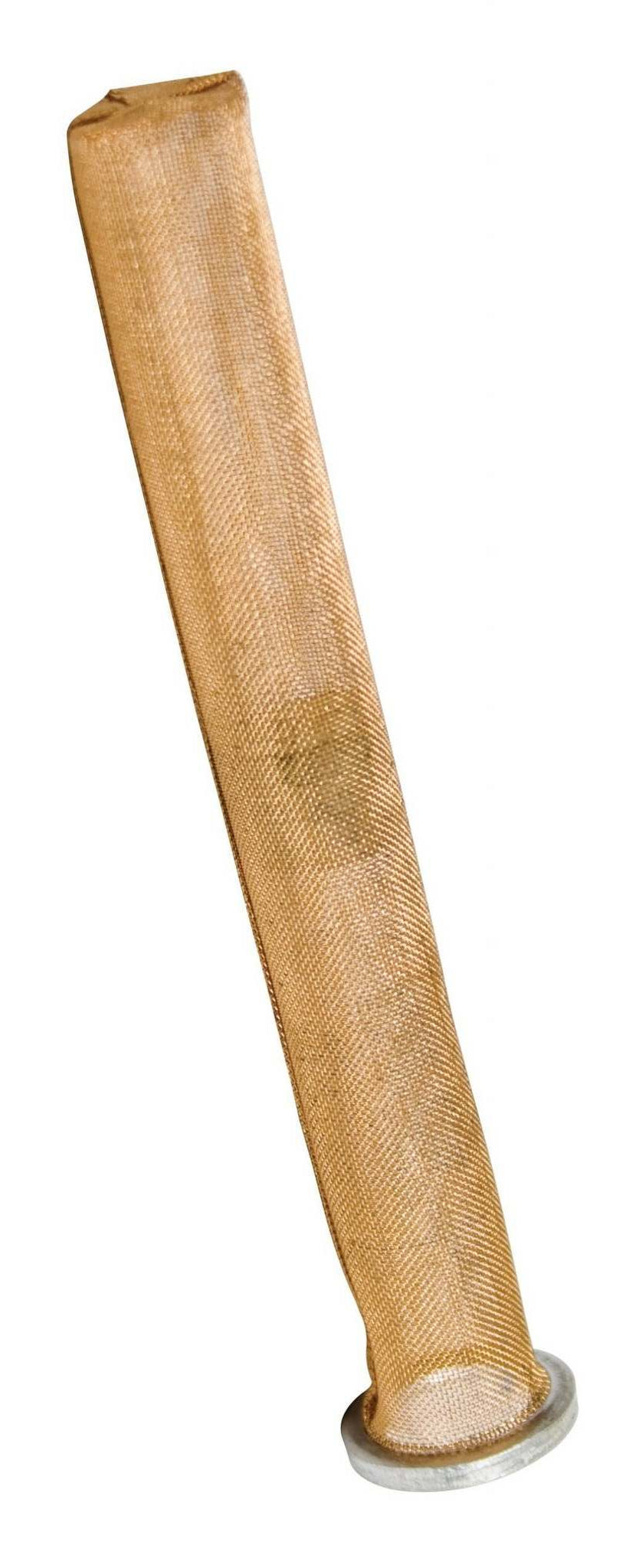

The 111-209-147A is your engine's first line of defense against fuel system contamination. This cylindrical mesh screen installs directly inside the fuel tank, sliding over the pick-up tube before the fuel outlet tap is threaded into place. It is designed to capture large particles, rust flakes, and sediment that commonly accumulate in vintage metal fuel tanks, preventing them from entering the fuel lines and clogging your fuel pump or carburetor jets.

Over decades of service, original screens often disintegrate or become completely choked with debris, leading to mysterious engine stalling or fuel starvation issues. This OE-style replacement is essential for any fuel system refresh, especially if your vehicle has been sitting for an extended period. It provides a simple, internal filtering solution that maintains the factory-correct appearance of your Volkswagen while offering critical protection for your engine.

Detailed Vehicle Compatibility This in-tank strainer fits a wide range of air-cooled models with a standard threaded tank outlet:

VW Beetle (Standard):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Super Beetle:

• 1971, 1972, 1973, 1974

VW Bus (Type 2):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Thing:

• 1973, 1974

VW Type 3:

• 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973

Product Highlights & Features Fine Metal Mesh: Engineered to trap sediment and rust while allowing maximum fuel flow, ensuring your engine doesn't starve at high speeds.

Integrated Seal: Often acts as the crush washer or primary seal between the fuel tank and the outlet nipple/tap to prevent external leaks.

Rust Prevention: Stops tank scale from traveling downstream where it can cause expensive damage to needle valves and diaphragms.

German-Quality Specification: Replaces the original 111209147A part with the exact length and diameter required for a secure fit on the internal pick-up tube.

Technical Specifications Part Number: 111-209-147A

Length: ~95mm (3.74 inches)

Diameter: ~10mm (0.39 inches)

Material: Metal Mesh or Fuel-Grade Plastic with Metal Cap

Installation & Maintenance Tips The "Hidden" Filter: Many owners are unaware this filter exists. If you are experiencing fuel delivery issues despite having a clean carburetor and new fuel lines, this screen is likely the culprit.

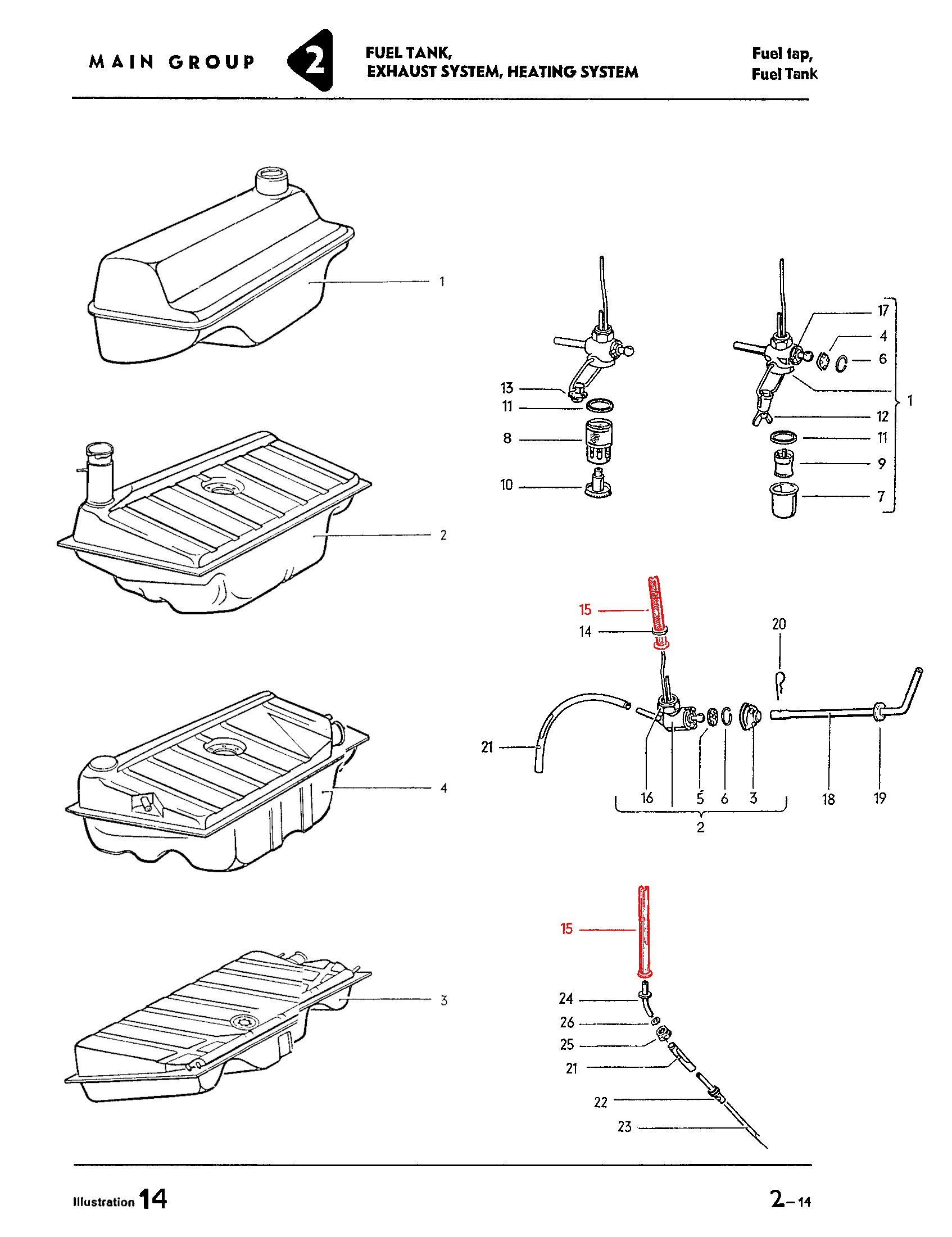

Installation Order: Slide the screen into the tank outlet hole first. Then, thread the fuel tap or outlet nipple in. The base of the tap will secure the screen against the tank.

Drain the Tank: This part cannot be replaced with fuel in the tank. Always drain your gasoline into a safe container before removing the fuel tap to avoid spills.

Clean the Hole: Use a small pick to ensure the old, crushed remains of the previous screen's base are completely removed from the tank's threaded bung for a proper seal.
