SEO Title Tag VDO 240-029 Triple Gauge Mounting Bracket - Black Steel for 2-1/16" (52mm) Gauges

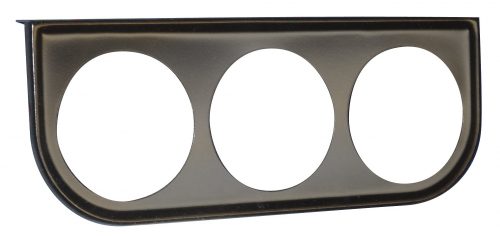

VDO Triple Gauge Mounting Bracket – 240-029

Organize your dashboard and protect your aftermarket instruments with the VDO 240-029 Triple Gauge Mounting Bracket. This heavy-duty steel bracket is the industry standard for mounting three 2-1/16 inch (52mm) gauges in a clean, professional under-dash configuration. Whether you are adding oil pressure, temperature, and voltmeters to a classic VW or a custom muscle car, this bracket provides a sturdy, vibration-resistant home for your monitoring system.

Finished in a semi-gloss Black Powder Coat, this bracket blends seamlessly into most classic interiors. Its "L-shape" design is engineered for under-dash mounting, but the high-quality steel is pliable enough to be gently angled for better driver visibility without sacrificing structural integrity.

Detailed Vehicle Compatibility

This is a universal mounting solution widely used in the following Volkswagen models for auxiliary gauge pods continuously across these years:

VW Air-Cooled (Beetle, Ghia, Bus, Type 3)

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Water-Cooled (Rabbit, Jetta, Golf, Scirocco)

• 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

Product Highlights & Features

• Triple Gauge Design: Features three precision-cut 2-1/16" (52mm) openings, perfectly spaced for a compact and readable display.

• Rugged Steel Construction: Unlike plastic pods that can warp or crack over time, this steel bracket remains rigid and keeps your gauges securely in place.

• Universal Under-Dash Mount: Designed to bolt directly to the bottom lip of a metal dashboard or center console.

• Sleek Black Finish: The neutral black finish matches factory VDO Cockpit and Series 1 gauge bezels for a factory-correct appearance.

Technical Specifications

• Part Number: 240-029

• Hole Quantity: 3

• Hole Size: 2-1/16" (52mm)

• Material: Steel

• Color: Black

• Width: Approx. 7.5 inches (190mm)

• Height: Approx. 2.8 inches (73mm)

Installation & Maintenance Tips

• Angling for Visibility: If the bracket sits too vertically under your dash, you can gently bend the mounting flange to "tip" the gauges toward the driver's line of sight before final bolting.

• Wiring Clearance: Ensure you leave at least 3 inches of clearance behind the bracket to account for the depth of the gauges and the wire harness connections.

• Secure Grounding: Since the bracket is metal, it can act as a common ground point for your gauge lighting. Using a star washer on one of the mounting bolts can help ensure a solid electrical ground to the vehicle chassis.

• Vibration Dampening: If mounting in a high-vibration environment (like a bus or buggy), adding a small strip of thin adhesive foam between the bracket and the dash can prevent rattles.
