111-805-591B VW Beetle Front Apron with Overrider Holes (1958-1967)

VW Front Apron (US Style w/ Overrider Holes) – 111-805-591B

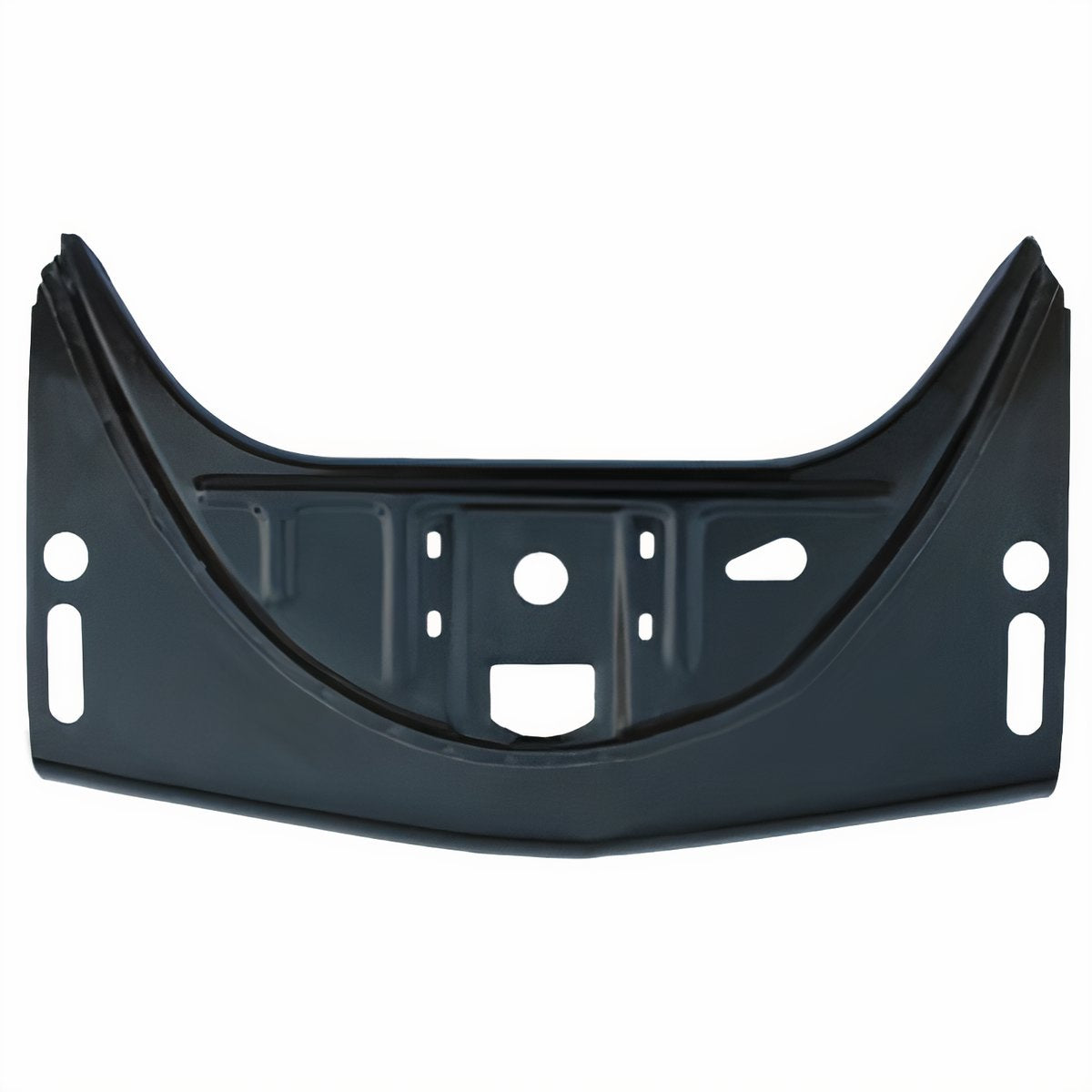

The 111-805-591B is the primary structural sheet metal panel that forms the front "nose" of the classic Volkswagen Beetle. This specific version is the US-spec (American style) apron, which is distinguished by the pre-cut holes designed to accommodate bumper overrider support tubes. It is an essential component for any high-quality restoration, providing a much cleaner and more structural solution than attempting to patch a front end damaged by collisions or heavy rust.

Crafted from heavy-gauge stamped steel, this apron is designed to be welded into place, restoring the correct factory lines and ensuring the front hood latches securely. The panel typically features a black protective coating to prevent corrosion during transit. Because the front apron is a critical alignment point for the front fenders, hood, and bumper brackets, this US-spec apron is the preferred choice for owners of 1958–1967 models looking to maintain an authentic factory appearance.

Detailed Vehicle Compatibility This apron is designed for standard Beetles with the following year fitment:

VW Beetle (Standard):

• 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967

Product Highlights & Features

• Pre-Cut Overrider Holes: Specifically designed for US-style bumpers with overrider bars, saving you the time of measuring and cutting holes yourself.

• Durable Steel Construction: Provides long-lasting bodywork that significantly outperforms plastic filler or patchwork.

• Direct Replacement: Engineered to match the original dimensions of the 1958-1967 production run for easier fitment.

• Weld-In Panel: Offers a permanent, structural repair that restores the front-end integrity of the chassis.

Technical Specifications

• Part Number: 111-805-591B

• Style: US Spec (with Overrider Holes)

• Material: Steel

• Installation: Weld-On

Installation & Maintenance Tips

• Test Fit Everything: Before you strike an arc with your welder, temporarily bolt on your front fenders, hood, and bumper brackets. This ensures the apron is centered and at the correct height for everything to line up.

• Remove Rust Inhibitor: The black coating on the panel is a shipping rust inhibitor, not a primer. You must sand or strip this off before welding and applying your own high-quality automotive primer.

• Hood Latch Alignment: After welding, verify that your hood latch pin seats perfectly into the apron's receiver. Adjustments are much harder once the metal is painted.

• Bumper Bracket Seals: When installing the bumper support tubes through the overrider holes, be sure to use new rubber for the bumper brackets & the support tubes to prevent metal-on-metal contact and keep moisture out.

111805591B
