49-5/68 Type 1, Left Tie Rod Assembly

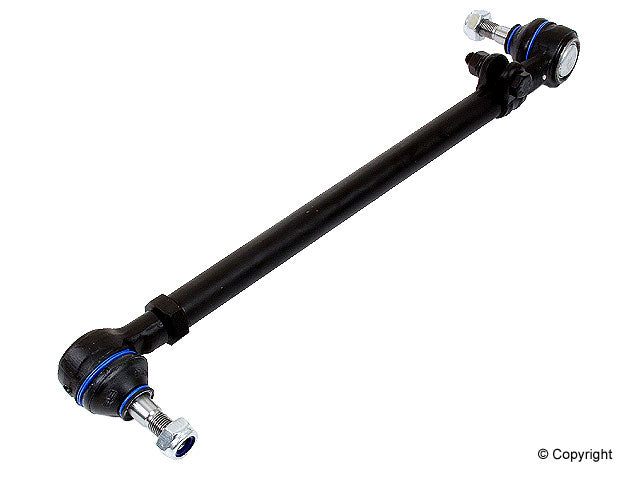

Tie Rod Assembly — Left Side (1954–1965 Beetle & Karmann Ghia)

This adjustable left-side tie rod assembly, is a direct replacement for original front steering linkage on 1954 to 1965 VW Beetles and 1956 to 1965 Karmann Ghias. The kit includes lock tabs to secure your alignment settings after adjustment.

Features & Specifications

• Fully adjustable on both ends for precise toe alignment

• Supplied with lock tabs to prevent movement after final alignment

• Thread size: 10 × 1.25 mm on both ends

• Uses 17 mm nuts for mounting to spindle and pitman/center link

• Fits many 1960-and-earlier Type 1s even though earlier models often had nonadjustable factory tie rods

Compatibility / Fitment

• VW Beetle, years 1954–1965 (sedan, ragtop, convertible, sunroof)

• VW Karmann Ghia, years 1956–1965

Benefits & Use Notes

• Replacing worn or bent tie rod assemblies helps restore steady steering and eliminate shimmy or wandering

• After installation, adjust toe to specs and tighten lock tabs to secure the setting

• As with any steering components, verify both sides are matched and aligned

113415801MY
