068-103-085A Camshaft Seal 32x47x10mm - Audi 4000 5000 A4 VW Beetle Golf

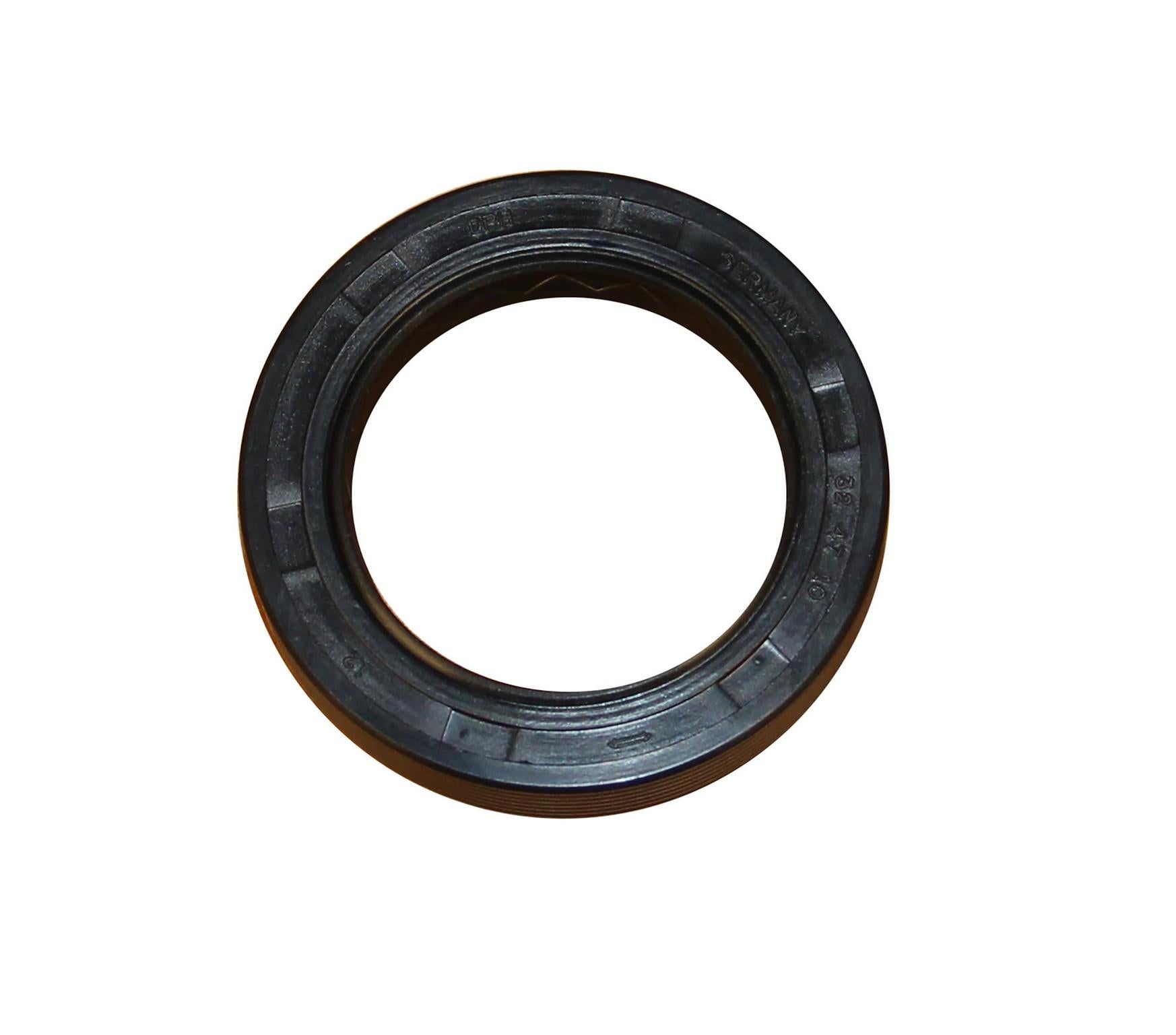

Radial Shaft Seal (32x47x10mm) – 068-103-085A

The 068-103-085A is a premium radial shaft seal featuring a built-in dust lip to protect the sealing surface from external contaminants. With an inner diameter of 32mm and an outer diameter of 47mm, it provides an exact interference fit for many water-cooled VAG group engines. This seal is frequently replaced during timing belt services to prevent oil seepage that can saturate and weaken the timing belt.

Designed with an alternating twist swirl type, this seal actively pumps oil back toward the engine interior as the shaft rotates. Its construction from Fluoride Rubber (FPM) and Polyacrylate Rubber (ACM) ensures it remains flexible and effective even after years of exposure to extreme engine bay temperatures.

Detailed Vehicle Compatibility

Audi 100:

• 1989

Audi 100 Quattro:

• 1989

Audi 200 Quattro:

• 1991

Audi 4000:

• 1980, 1981, 1982, 1983, 1984, 1985, 1986

Audi 4000 Quattro:

• 1984, 1985, 1986, 1987

Audi 5000:

• 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1987, 1988

Audi 5000 Quattro:

• 1987, 1988

Audi 80:

• 1988, 1989, 1990, 1991, 1992

Audi 80 Quattro:

• 1988, 1989, 1990, 1991, 1992

Audi 90:

• 1988, 1989, 1990, 1991, 1994, 1995

Audi 90 Quattro:

• 1988, 1989, 1990, 1991, 1992

Audi A4:

• 1997, 1998, 1999, 2000, 2001

Audi A4 Quattro:

• 1997, 1998, 1999, 2000, 2001

Audi A6:

• 1998, 2000, 2001

Audi A6 Quattro:

• 1998, 2000, 2001, 2002, 2003, 2004

Audi A8:

• 1997, 1998, 1999

Audi A8 Quattro:

• 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Audi Allroad Quattro:

• 2001, 2002, 2003, 2004, 2005

Audi Coupe:

• 1987

Audi Fox:

• 1973, 1974, 1975, 1976, 1977, 1978, 1979

Audi Q5:

• 2011, 2012, 2013, 2014, 2015, 2016

Audi Q7:

• 2008, 2009, 2010, 2011, 2012

Audi RS6:

• 2003, 2004

Audi S4:

• 1992, 1993, 2000, 2001

Audi S6:

• 2002, 2003

Audi S8:

• 2001, 2002, 2003

Audi TT:

• 2000, 2001, 2005, 2006

Audi TT Quattro:

• 2000, 2001, 2002, 2003, 2004, 2005, 2006

Audi V8 Quattro:

• 1990, 1991, 1992, 1993, 1994

Porsche Cayenne:

• 2011, 2012, 2013, 2014, 2015, 2016

Volkswagen Beetle:

• 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Volkswagen Cabrio:

• 1995, 1996, 1998

Volkswagen Cabriolet:

• 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Volkswagen Corrado:

• 1990, 1991, 1992

Volkswagen Dasher:

• 1975, 1976, 1977, 1978, 1979, 1980, 1981

Volkswagen EuroVan:

• 1992, 1993, 1994, 1995, 1996

---

Product Highlights & Features

• Dual-Material Design: Utilizes FPM and ACM rubber to provide maximum resistance against synthetic oils and thermal breakdown.

• Integrated Dust Lip: Features an external dust lip that prevents road grime and debris from reaching the primary sealing surface, extending the life of the shaft.

• Alternating Swirl Technology: The "Alternating Twist" swirl type ensures consistent oil redirection regardless of minor shaft vibrations or thermal expansion.

Technical Specifications

• Part Number: 068-103-085A

• Dimensions: 32mm (ID) x 47mm (OD) x 10mm (Thickness)

• Material: FPM (Fluoride Rubber) / ACM (Polyacrylate Rubber)

• Design: Radial Shaft Seal with Dust Lip (ASW)

---

Installation & Maintenance Tips

• Shaft Inspection: Before installing the new seal, inspect the camshaft or intermediate shaft surface for grooves or "scoring." If a deep groove is present, the seal may still leak; a repair sleeve may be required.

• Lubrication: Lightly coat the inner sealing lip with fresh engine oil before sliding it onto the shaft to prevent a "dry start" which can burn the seal lip.

• Square Installation: Use a seal driver tool to ensure the seal is pressed into the housing perfectly square. An angled installation is one of the most common causes of immediate seal failure.



068103085AEC

325.155

325155

3476S

81-19299-10

811929910

TCS45357

3476

12733

ATC9000

002-30-00481

0023000481

03598

V10-3274

V103274

V10-3275

V103275
