Mann W719/5 Oil Filter 056-115-561G - VW Golf Jetta Passat Audi 100

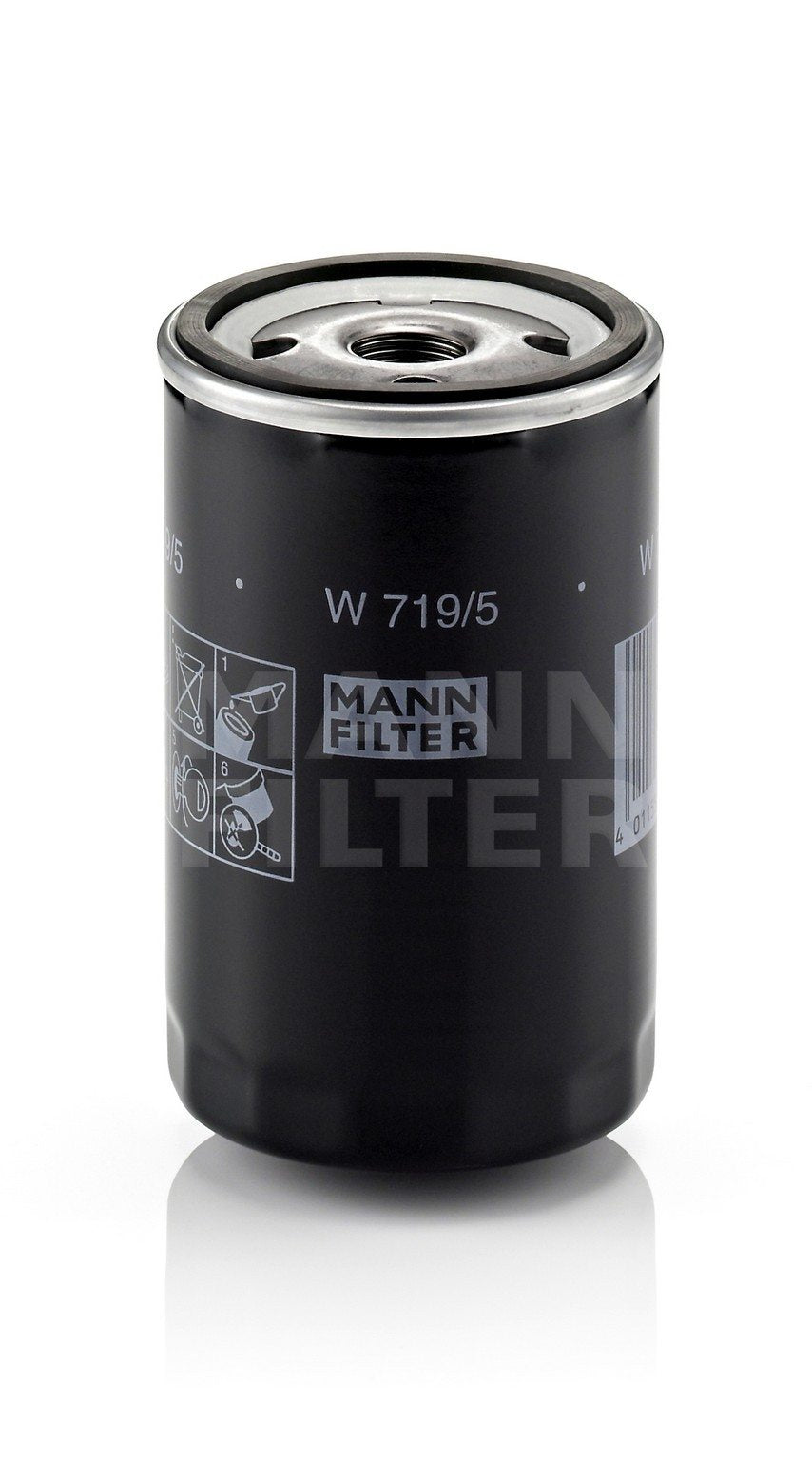

Mann-Filter Spin-On Oil Filter – W719/5

The Mann W719/5 is an OE-quality spin-on oil filter engineered to provide superior protection for Volkswagen and Audi engines. Featuring advanced pleated media, this filter efficiently removes contaminants such as carbon, grit, and metal particles from the engine oil. It is equipped with a high-quality bypass valve to ensure oil flow during cold starts and an anti-drain-back valve to prevent the filter from emptying when the engine is off, reducing wear during startup.

This filter is the direct equivalent to the Volkswagen Group part number 056-115-561G. Its heavy-duty housing is designed to resist pressure spikes and vibration, making it the ideal choice for both naturally aspirated and turbocharged applications across a wide range of classic and modern models.

Detailed Vehicle Compatibility

Audi 100:

• 1989, 1990, 1991

Audi 100 Quattro:

• 1989, 1990, 1991

Audi 4000:

• 1985, 1986, 1987

Audi 4000 Quattro:

• 1985, 1986, 1987

Audi 5000:

• 1985, 1986, 1987, 1988

Audi 5000 Quattro:

• 1987, 1988

Audi 80:

• 1988, 1989, 1990

Audi 90:

• 1988

Audi 90 Quattro:

• 1990, 1991

Audi Coupe:

• 1985, 1986, 1987

Audi Coupe Quattro:

• 1990, 1991

Volkswagen Cabrio:

• 1999

Volkswagen Cabriolet:

• 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Volkswagen Fox:

• 1987, 1988, 1989, 1990, 1991, 1992, 1993

Volkswagen Golf:

• 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Volkswagen Jetta:

• 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994

Volkswagen Passat:

• 1990, 1991, 1992, 1993, 1995, 1996

Volkswagen Quantum:

• 1985, 1986, 1987, 1988

Volkswagen Scirocco:

• 1985, 1986, 1987, 1988

---

Product Highlights & Features

• OE Quality Filtration: Manufactured by Mann-Filter to exact factory specifications, ensuring the same quality used on the original assembly line.

• Enhanced Media Technology: Utilizes enhanced cellulose media with a 21-micron rating to trap microscopic contaminants while maintaining a high flow rate.

• Robust Safety Features: Includes a built-in anti-drain-back valve and a bypass relief valve to ensure consistent lubrication even in cold weather or high-load conditions.

Technical Specifications

• Thread Size: 3/4-16

• Height: 4.828 inches

• Outer Diameter: 2.921 inches

• Micron Rating: 21.00

• Burst Pressure: 275 PSI

• Bypass Relief Setting: 16 PSI

• Flow Rate: 7-9 GPM

• Beta Ratio: 2/20=6/20

---

Installation & Maintenance Tips

• Lubricate the Seal: Always apply a small amount of fresh oil to the rubber sealing ring before spinning the filter onto the housing to prevent sticking. (Always make sure the old seal did not stay behind!)

• Proper Torque: Hand-tighten the filter until the gasket makes contact, then apply an additional 3/4 turn. Avoid using a wrench for tightening to prevent damage to the housing.

• Check for Leaks: After an oil change, run the engine for a few minutes and inspect the area around the filter for any signs of seepage before driving.





W719/5

06A115561

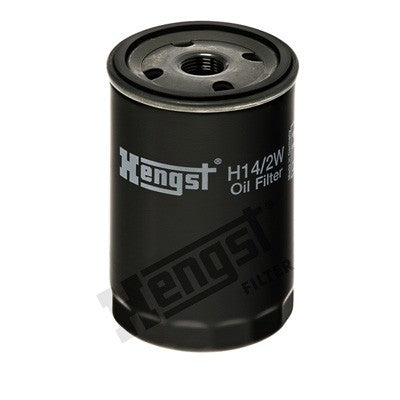

H14/2W
