181-701-407 VW Thing Battery Hold Down Clamp - Type 181 Safari

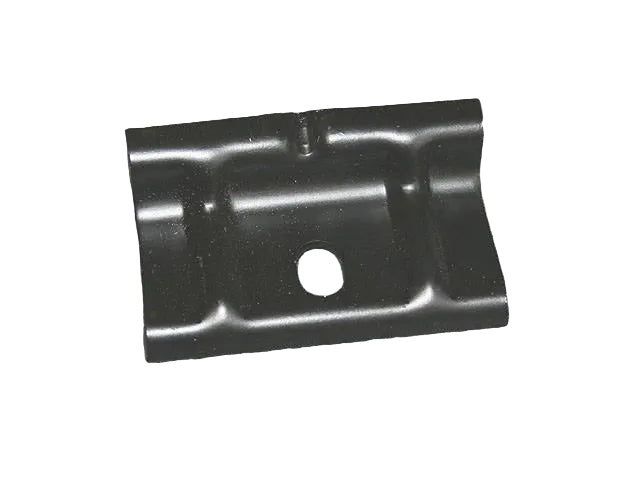

Battery Hold Down Clamp – 181-701-407

The 181-701-407 is a specialized steel clamp designed to secure the battery in the unique mounting tray of the VW Type 181 (Thing/Safari). Because the Thing was designed for rugged, off-road, and military use, its battery securement system is robust. This clamp ensures that the battery remains locked in place even when the vehicle is traversing uneven terrain or experiencing significant vibration, preventing the battery from shifting and shorting against the metal bodywork.

Unlike the more universal 211-series clamps, this part is specifically contoured to fit the dimensions of the Type 181 battery compartment. Over years of exposure to the elements and potential battery acid leaks, original clamps often become brittle or heavily corroded. Replacing a damaged or missing clamp with this heavy-duty steel version is a critical safety step for any Type 181 restoration.

Detailed Vehicle Compatibility

VW Thing:

• 1973, 1974

Product Highlights & Features

• Type 181 Specific Fitment: Engineered specifically for the Safari/Thing chassis to ensure a perfect lock on the battery base.

• Vibration Resistant: Provides high clamping force to prevent battery "bounce," which can damage internal plates and shorten battery life.

• Corrosion Protection: Finished with a durable coating to resist the acidic environment of the battery tray and prevent rust.

• Safety First: Vital for preventing electrical fires caused by battery movement and subsequent terminal arcing.

Technical Specifications

• Part Number: 181-701-407

• Material: Heavy-Duty Steel

• Application: Battery Securement

• System Voltage: Compatible with 12V Battery Groups

Installation & Maintenance Tips

• Neutralize Acid: Before installing the new clamp, clean the area with a baking soda and water solution to neutralize any residual acid that could eat through the new finish.

• Grease the Threads: Apply a small amount of dielectric grease or anti-seize to the mounting bolt. This prevents the hardware from seizing due to the off-gassing naturally produced by the battery.

• Alignment: Ensure the clamp is seated fully over the bottom "lip" of the battery before tightening. If it is only catching the edge, the battery can still vibrate loose.

• Periodic Inspection: Given the off-road nature of the VW Thing, check the tightness of this clamp after every major trail run or long-distance trip.
