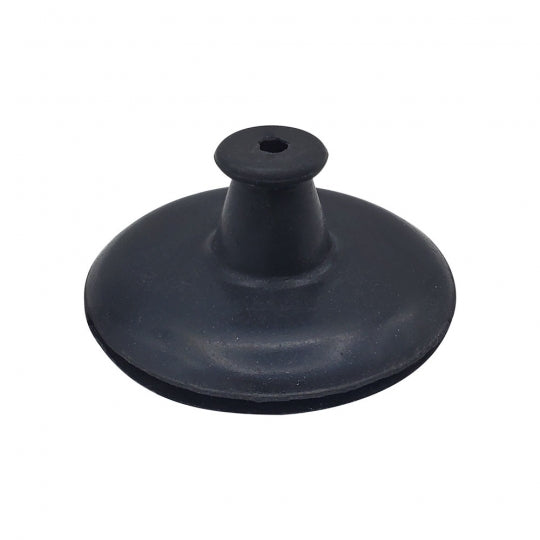

111-707 VW Beetle & Ghia Battery Cable Firewall Grommet

VW Battery Cable Chassis Grommet – 111-707

The 111-707 (often referenced as 111-971-905) is a heavy-duty rubber grommet designed to protect the positive battery cable as it passes through the metal of the rear floor pan or firewall. In an air-cooled Volkswagen, the main power cable must travel through a sharp-edged hole in the chassis to reach the starter motor. Without this grommet, engine vibration and road movement will eventually cause the metal to saw through the cable's insulation.

If the main battery cable makes contact with the chassis, it creates a direct high-amperage short circuit that can melt the entire wiring harness or lead to a vehicle fire. This simple rubber component is one of the most critical safety items in your electrical system. This reproduction grommet is made from high-density, oil-resistant rubber to ensure it stays soft and pliable even when exposed to the heat and grime of the undercarriage.

Detailed Vehicle Compatibility This grommet is used in nearly all Type 1 based chassis:

VW Bug (Beetle):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

VW Super Beetle:

• 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Thing:

• 1973, 1974

Product Highlights & Features

• Essential Electrical Safety: Provides a thick rubber barrier between the live battery cable and the grounded metal chassis.

• Oil & Heat Resistant: Formulated to withstand the harsh environment of the engine bay and the underside of the car.

• Vibration Dampening: Helps secure the cable in place, reducing the physical stress on the battery terminals and starter solenoid.

• Direct Factory Fit: Sized precisely for the 1/0 or 2-gauge cables typically found in air-cooled VW power systems.

Technical Specifications

• Part Number: 111-707 (111-971-905)

• Material: SBR Rubber

• Color: Black

• Fitment: Fits approximately 22mm-25mm chassis holes.

Installation & Maintenance Tips

• Inspect the Cable: While installing the new grommet, check your battery cable for any signs of existing fraying or green corrosion. If the copper is exposed, replace the cable immediately.

• Installation Lubricant: Use a small amount of silicone spray or soapy water to slide the grommet over the cable and snap it into the chassis hole.

• Sealing: For an airtight seal against road noise and moisture, you can apply a small bead of black RTV silicone around the outer edge of the grommet once it is seated.

• Check Regularly: Every time you swap a battery, give this grommet a squeeze. If it feels hard or brittle, it’s time to replace it before it cracks and allows the cable to rub.
