113-798-300 - Complete Pedal Assembly, VW Bug, Ghia, Super Beetle, Thing

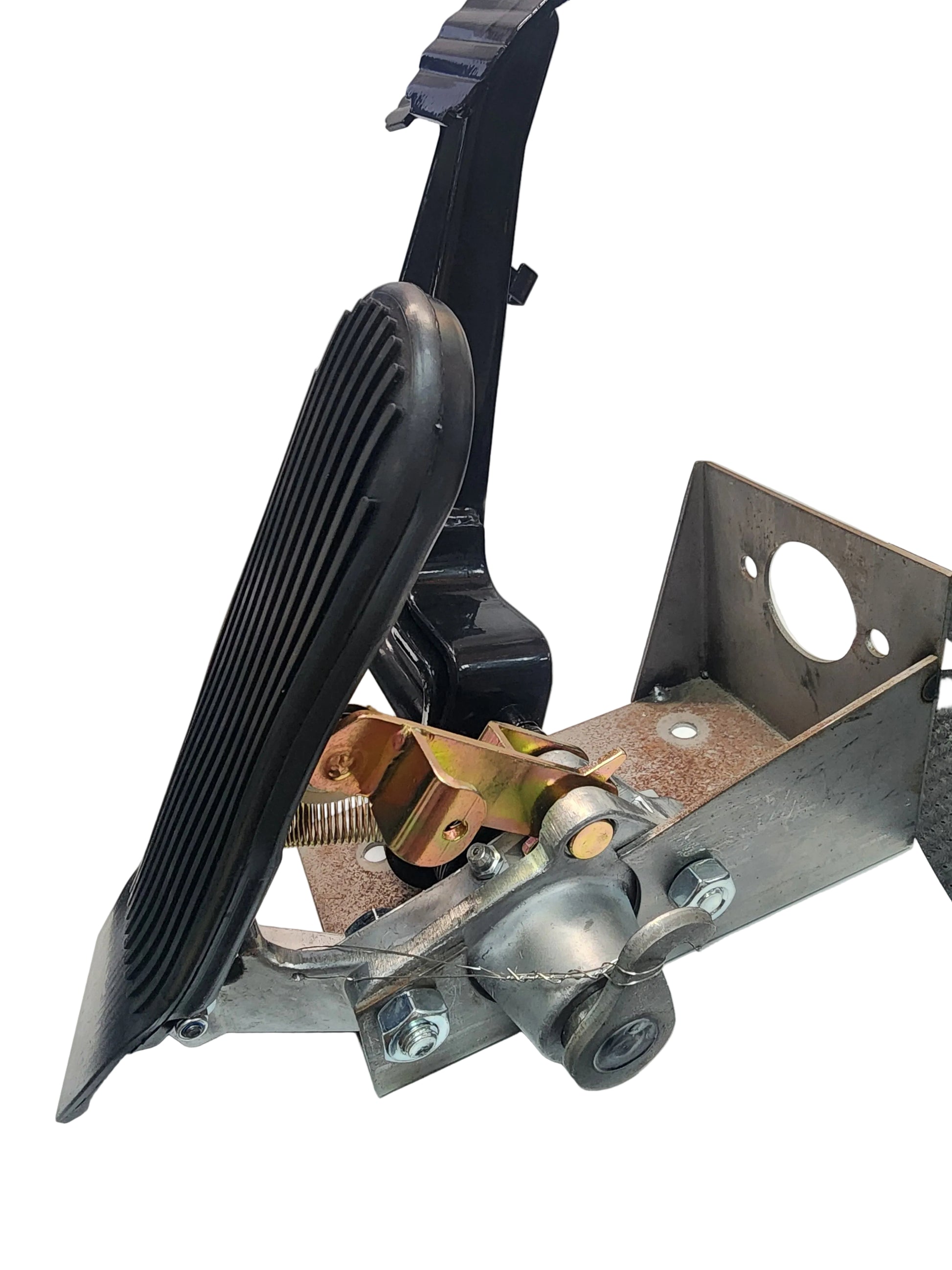

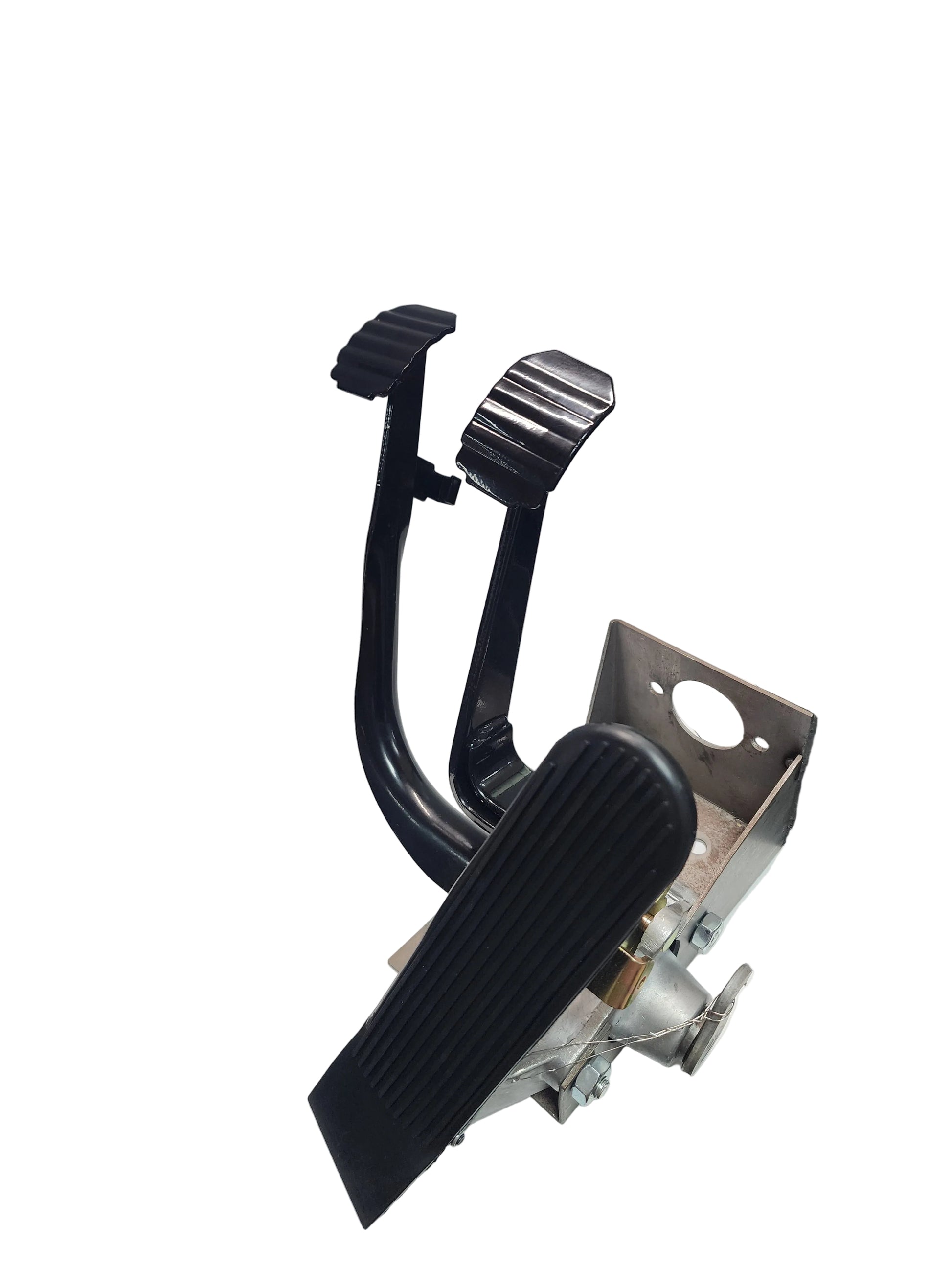

Complete Pedal Assembly with EMPI Upgrade – 113-798-300

The 113-798-300 is an essential upgrade for any restoration or daily driver. The original Volkswagen pedal cluster is one of the most neglected areas of the car, often suffering from a "lazy" throttle return or a brake pedal that feels disconnected. By installing this complete assembly, you restore the mechanical precision of your braking and shifting.

The addition of the EMPI 98-1093-0 aluminum accelerator pedal is a favorite for enthusiasts. It provides a crisp, linear throttle response and a rugged look that matches both stock and custom interiors.

Detailed Vehicle Compatibility

VW Beetle (Standard & Super):

• 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

VW Karmann Ghia:

• 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Thing (Type 181):

• 1973, 1974

Product Highlights & Features

• Cast Aluminum Base: Provides a rock-solid foundation for the levers, preventing the flexing that leads to inconsistent clutch engagement.

• Throttle Pedal Upgrade: The EMPI 98-1093-0 pedal features an Upgraded Roller With A Sealed Long-Life Bearing is the Key Element to This Kit. Along with the Included Components, This Kit Will Not Only Restore the Feel of Your Pedal but Will Enhance It for Better Take-Off’s and Overall Drivability.

• Ready for Cables: Includes the correct clutch cable "hook" and improved offset accelerator cable attachment (no more binding or kinking cables) for a standard factory configuration.

Technical Specifications

• Part Number: 113-798-300 (w/ 98-1093-0)

• Material: Cast Iron / Steel / Aluminum

• Application: Brake, Clutch, and Accelerator Controls

• Compatibility: LHD (Left Hand Drive) Models Only

Installation & Maintenance Tips

• The "Two-Bolt" Install: The assembly is secured by two main bolts through the center tunnel. When installing, ensure the Master Cylinder Pushrod is correctly aligned before tightening; if it's off-center, it can cause the brake pedal to bind or squeak. And don't forget to put the brake pedal return spring under its tension!

• Grease the Pivot: While the unit is new, apply a high-quality chassis grease to the main pivot shaft. This ensures a lifetime of smooth operation and prevents the "squeaky pedal" syndrome common in dry assemblies.

• Adjust Your Cables: After installation, you must re-adjust your Clutch Cable and Throttle Cable. A new assembly often sits slightly differently than a worn-out one, and improper adjustment can lead to clutch slippage or a throttle that won't reach wide-open-throttle (WOT).

*Please Note: Off-Road Pedal Box not included!*
