111-813-705A VW Engine Compartment Seal - Beetle Ghia Bus 1950-1971

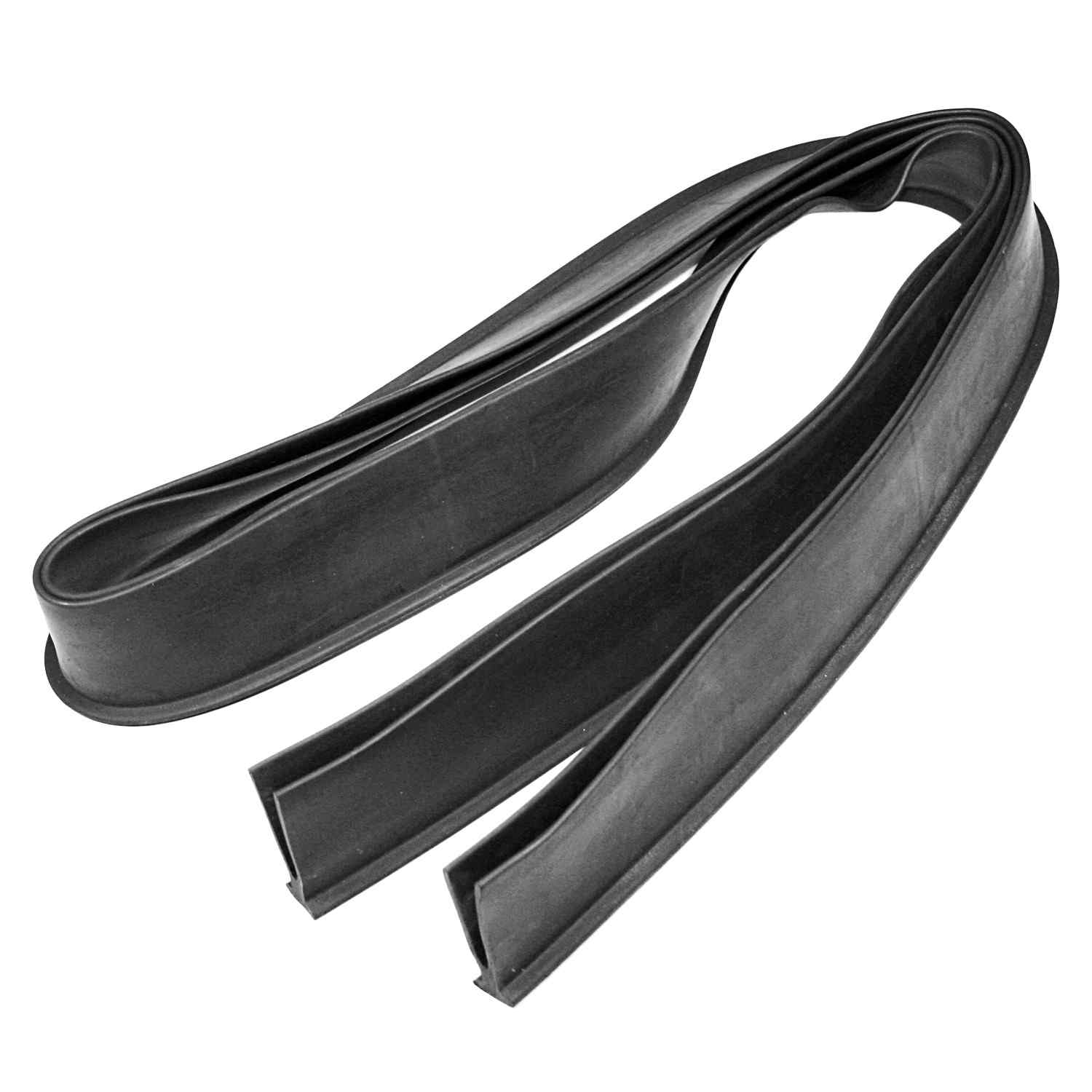

Engine Compartment "U" Seal – 111-813-705A

The 111-813-705A is the "Early Style" seal designed for vehicles with the smaller engine bay opening. It works in tandem with the firewall seal to completely isolate the top of the engine from the ground and exhaust system. This seal is typically made from high-quality EPDM rubber, which is designed to withstand the high temperatures of the engine bay without becoming brittle.

Failure to replace a dry-rotted or missing seal is one of the most common causes of "mystery" overheating on classic Volkswagens. When the engine is out for service, replacing this seal is considered "cheap insurance" to protect the longevity of your cylinder heads and valves.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966

VW Bus:

• 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971

Product Highlights & Features

• Prevents Overheating: Blocks hot exhaust air from entering the cooling fan intake, keeping engine operating temperatures within safe limits.

• OEM Profile: Features the correct "T" or "bulb" profile to slide into the factory metal channel and mate perfectly with the engine tin.

• High-Grade EPDM Rubber: Engineered to resist ozone, heat, and oil vapors, ensuring it stays flexible and effective for years of service.

Technical Specifications

• Part Number: 111-813-705A

• Type: Rear "U" Style Engine Bay Seal

• Length: Approx 1460mm (Trimming may be required)

• Material: Black EPDM Rubber

• Reference Numbers: 111813705A, 3591-B, 111-705A

Installation & Maintenance Tips

• Engine Removal Required: While technically possible to "stuff" this into the channel with the engine in, it is nearly impossible to get it seated correctly. It is best installed while the engine is out.

• Lubrication: Use a small amount of soapy water or silicone spray in the metal channel to help the rubber seal slide into place more easily.

• Corner Trimming: This seal is often supplied slightly long. You should install it starting from the center and trim the ends where they meet the firewall seal for a tight, seamless fit.
