043-129-893SS VW Stainless Steel Throttle Cable Guide Tube - Fan Shroud

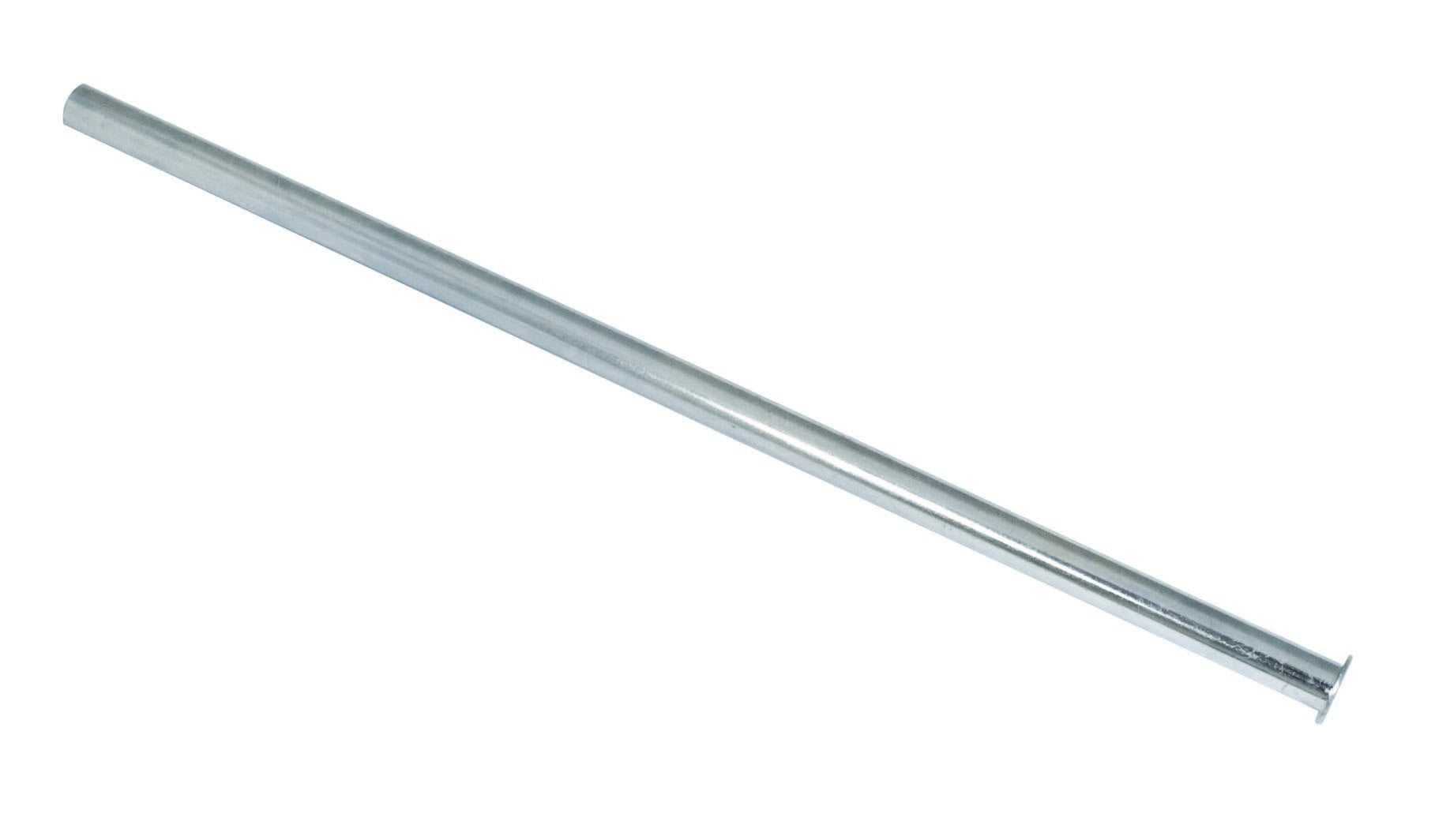

Stainless Steel Throttle Cable Guide Tube – 043-129-893SS

The 043-129-893SS is a small but vital "while-you're-in-there" upgrade for any VW engine build. The original guide tubes are often lost during engine swaps or become so clogged with grease and rust that the throttle cable begins to drag. This stainless steel replacement is a "set-and-forget" part that ensures your throttle linkage remains responsive and reliable.

Because it is made of polished stainless steel, it also adds a subtle, clean look to the back of your fan shroud. It is a direct fit for the factory hole in the shroud and works with all standard-diameter accelerator cables.

Detailed Vehicle Compatibility

VW Beetle (Standard):

• 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Super Beetle:

• 1971, 1972, 1973, 1974

VW Bus (Type 2 / Transporter):

• 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971

VW Karmann Ghia:

• 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

VW Thing (Type 181):

• 1973, 1974

Product Highlights & Features

• Direct OEM Replacement: Matches the factory dimensions of part number 043129893 for a perfect press-fit into the shroud.

• Corrosion-Proof: Perfect for cars in coastal areas or humid climates where standard steel tubes fail quickly.

• Beaded Ends: Features slight flaring or beading on the ends to help retain the rubber seal and prevent the tube from sliding out of the shroud.

Technical Specifications

• Part Number: 043-129-893SS

• Material: 304 Stainless Steel

• Application: Engine Fan Shroud

• Compatibility: All Type 1 style upright engines (1200cc - 1600cc+)

Installation & Maintenance Tips

• Seal Check: When installing this tube, always check the condition of the Throttle Cable Boot on the front side of the shroud. If it's cracked, replace it to prevent cooling air from escaping.

• Lubrication: Even with a stainless tube, applying a light coat of multi-purpose grease to the throttle cable before sliding it through will further reduce friction and wear.

• Secure Fit: If the hole in your fan shroud has become enlarged over time, a small dab of high-temp silicone or a slight "tweak" to the tube can help lock it firmly in place so it doesn't rattle.

043129893SS
